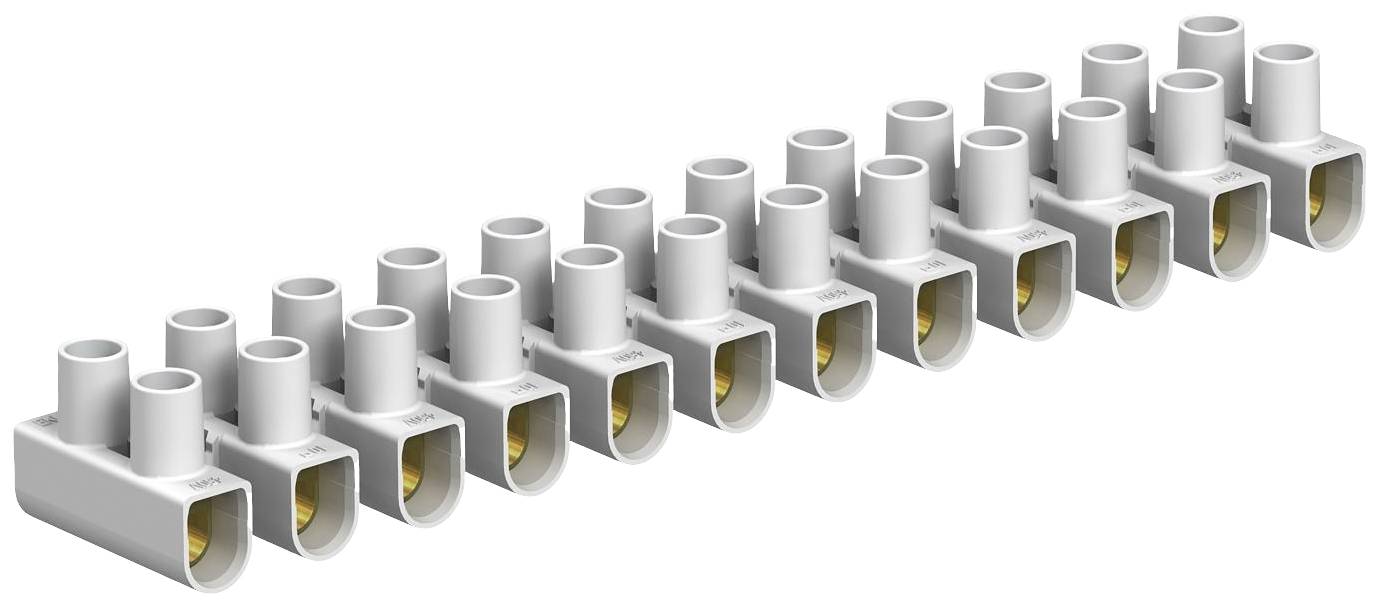

OBO Bettermann 2056372 Serial screw terminal flexible: - fixed: 10-10 mm² Number of pins: 12 1 pc(s) White
EAN:
Part number:
Item no:
Product type
Serial screw terminal
Cross section (inflexible) (min.)
10 mm²
Nominal current - rounded value
57 A
Cross section (inflexible) (max.)
10 mm²
Number of pins
12
Technical specifications
- Explosion tested design "Ex e": No
- Connectable conductor cross-section stranded without end sleeve: 6..6 mm²
- Design of electrical connection 1: screw terminals.
- Design of electrical connection 2: screw terminals.
- Number of clamping points each pole: 2
- Installation type: direct mounting
- Material of the insulating body: thermoplastic
- Height at niedrigstbauender fixings: 17.4 mm
- Length: 135 mm
- End plate required: No
- Product type
Serial screw terminal
- Nominal current
57 A
- Cross section (inflexible) (min.)
10 mm²
- Nominal current - rounded value
57 A
- Cross section (inflexible) (max.)
10 mm²
- Number of pins
12
- Factory colour
White
- Content
1 pc(s)

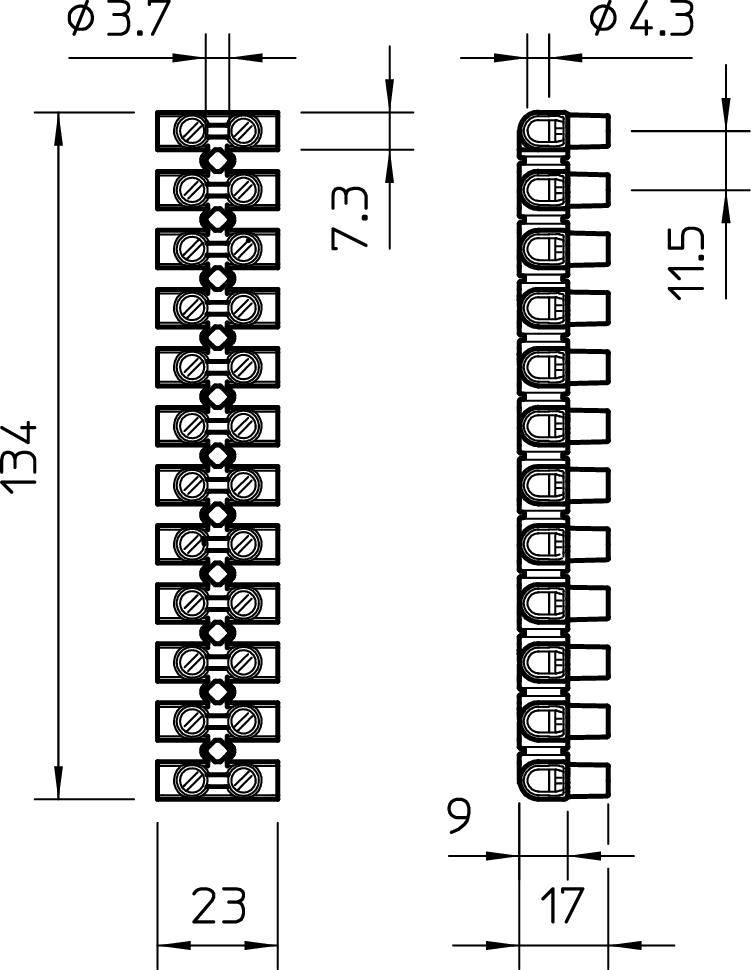

- Dim
(L x W) 135 mm x 23 mm
- Manufacturer part #
2056372
- Type
76 CE WS
- Connection
Screws
- Nominal voltage
450 V
- Width
23 mm
- Length
135 mm
- Pitch
23 mm
- Temperature range
-5 to +80 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959912 OBO Bettermann 2056372 Serial screw terminal flexible: - fixed: 10-10 mm² Number of pins: 12 1 pc(s) White
Description
Steel terminals, steel screws, galvanized, 12-pin strips that can be separated in single terminals by "twist'n'pull". Screws turned up, cannot be lost.
