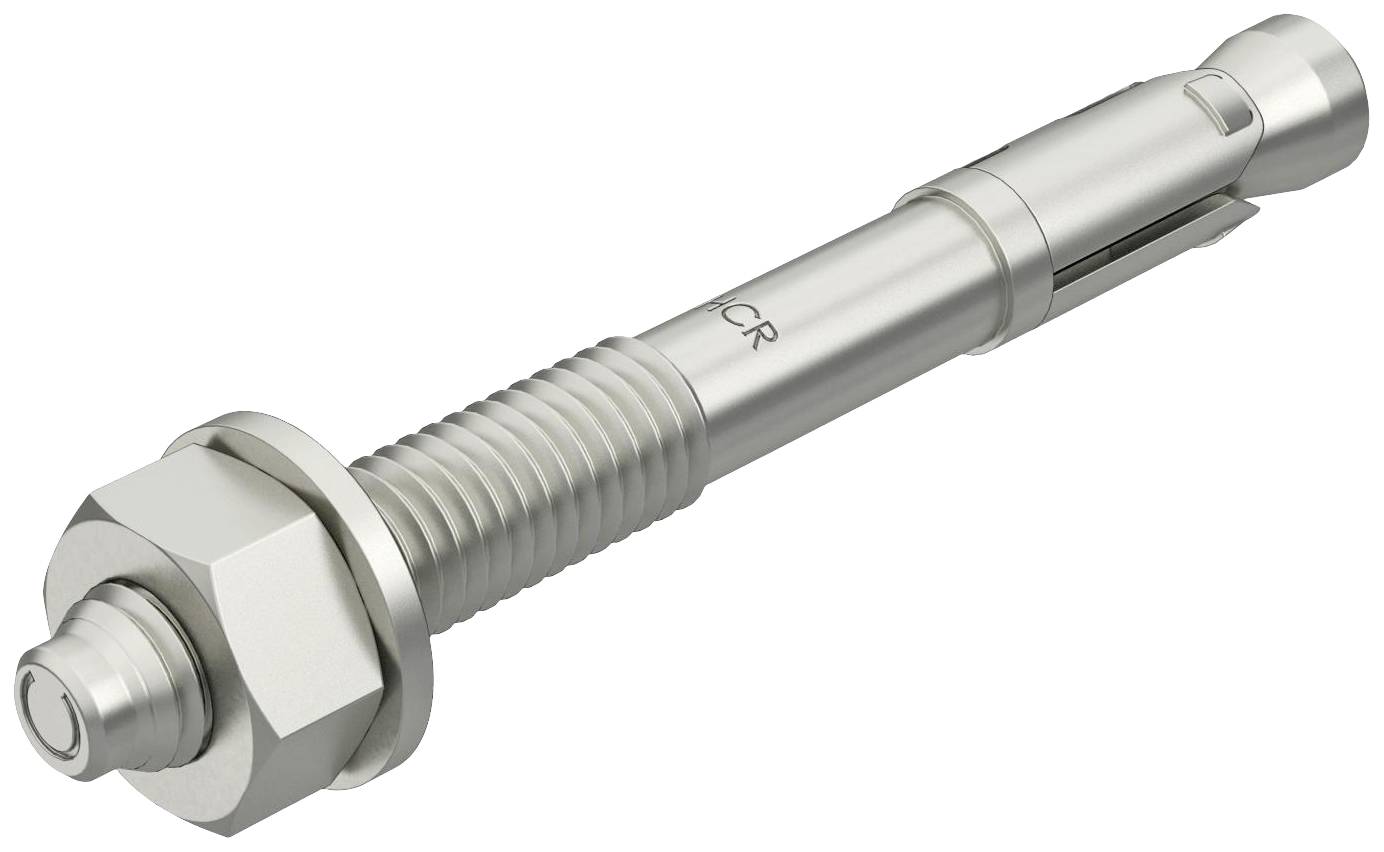

OBO Bettermann 3498556 BZ10-10-30/90HCR Cavity fixing 90 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = to plug
- Material = rust free steel
- Material good = other
- Surface = untreated
- Thread (metric) = 10
- Fastening strength = 10 mm
- Drill hole diameter = 10 mm

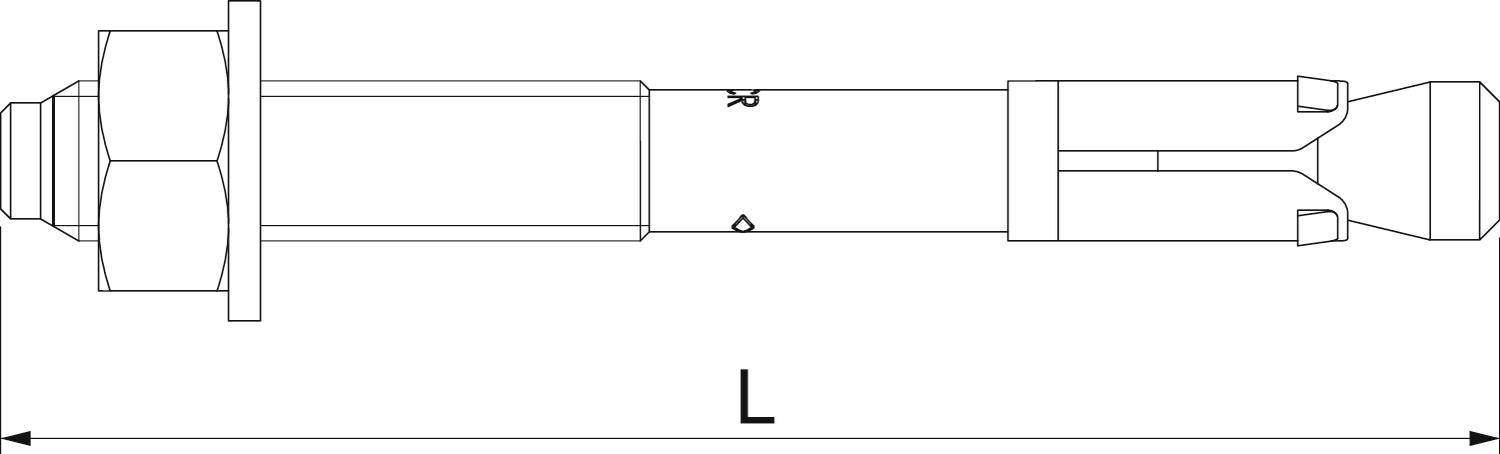

- Bolt length = 90 mm
- (Ø)
10 mm
- Product type
Cavity fixing
- Material
Steel
- Length
90 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 90 mm
- Content
50 pc(s)
- Material properties
zinc plated
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961041 OBO Bettermann 3498556 BZ10-10-30/90HCR Cavity fixing 90 mm 10 mm 50 pc(s)
Description
The bolt anchor BZ combines high permissible loads with low edge and axis intervals. The Split cone is with a permanent, heat-resistant slide coating, the direct contact between the cone and spreading sleeve prevents. This ensures that at cracking in concrete the necessary after spreading. With European Technical Approval No.: ETA -99/0010.
