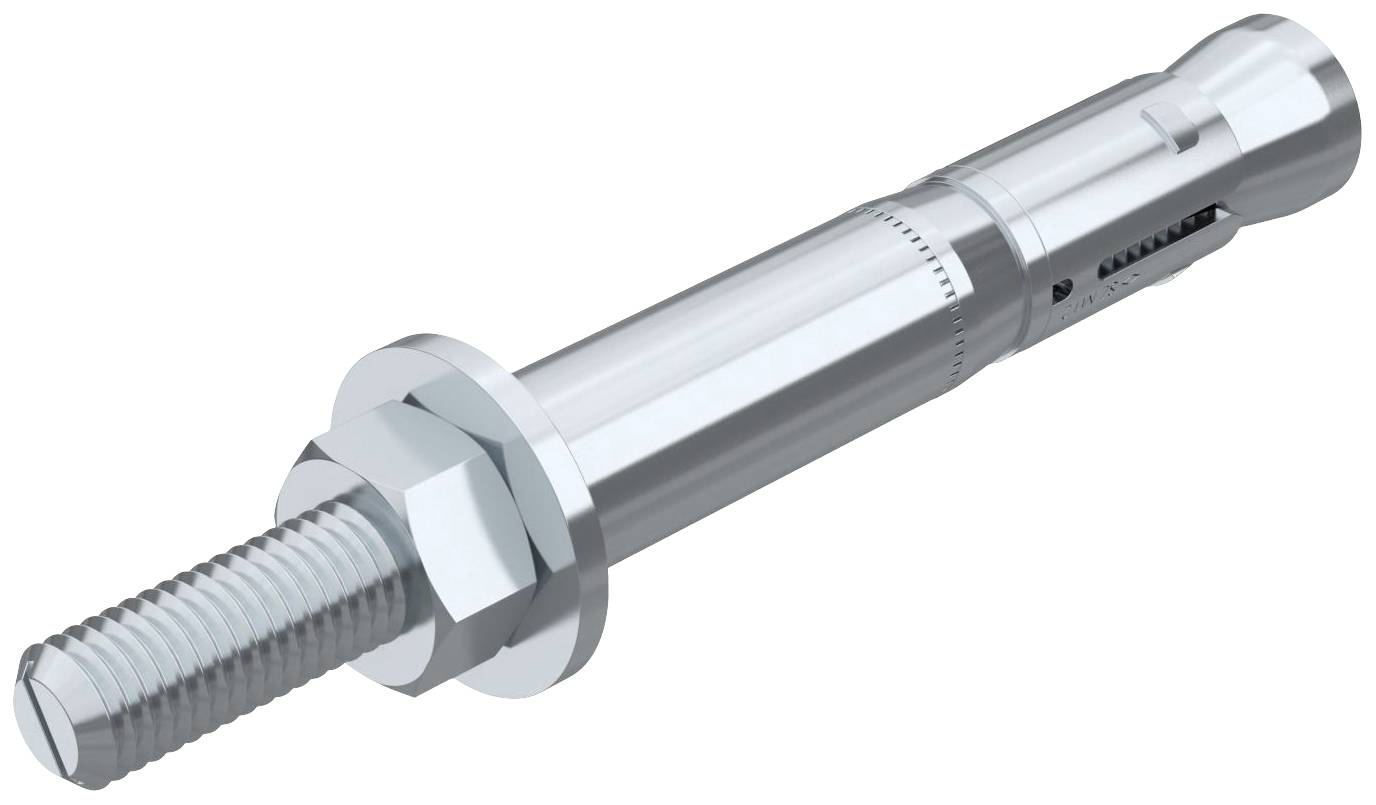

OBO Bettermann 3498752 SZ-B 18/0x142 Heavy duty anchor 142 mm 12 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = to plug
- Material = Steel
- Material good = other
- Electrically/Electrolytically galvanised surface =
- Thread type = metric
- Thread (metric) = 12
- Fastening strength = 30 mm
- Drill hole diameter = 18 mm
- Bolt length = 142 mm
- (Ø)
12 mm
- Product type
Heavy duty anchor
- Material
Steel
- Length
142 mm
- Screw diameter
18 mm
- Dim
(Ø x L) 12 mm x 142 mm
- Content
20 pc(s)
- Material properties
zinc plated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959115 OBO Bettermann 3498752 SZ-B 18/0x142 Heavy duty anchor 142 mm 12 mm 20 pc(s)
Description
The Heavy duty anchor SZ approved according to the ETA, Option 1, is a high-performance th anchor system with three-way spread special sleeve, which in case of small axis and edge distances very high permissible loads. The plastic crimp ring ensures the permanent tensioning of the mounting part and the surface. With European Technical Approval No.: ETA -02/0030.
