OBO Bettermann 5015073 1809 Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
5% = € 0.48
€ 8.76
5
7% = € 0.68
€ 8.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Technical specifications
- Number of connections for flat conductors up to 30 mm: 1
- Number of connection cable up to 25 mm² rigid: 7
- Number of connection round conductors 8-10 mm: 1
- Number of total connection round conductors: 1
- Design: Structure fix
- Lightning current carrying capacity H/100 kA
- CO2 footprint (GWP) Cradle-to-Gate 0.6701 kg CODOS e / 1 pieces
- Insulator: Yes
- Surface of the terminal: Galvanised
- Surface of the contact rail: Nickel-plated
- Material: Brass
- Material of the clamp: Steel
- Material of the contact rail: Brass
- Product type
Electrical bonding
- Type
With cover
- Manufacturer part #
5015073
- Factory colour
Grey

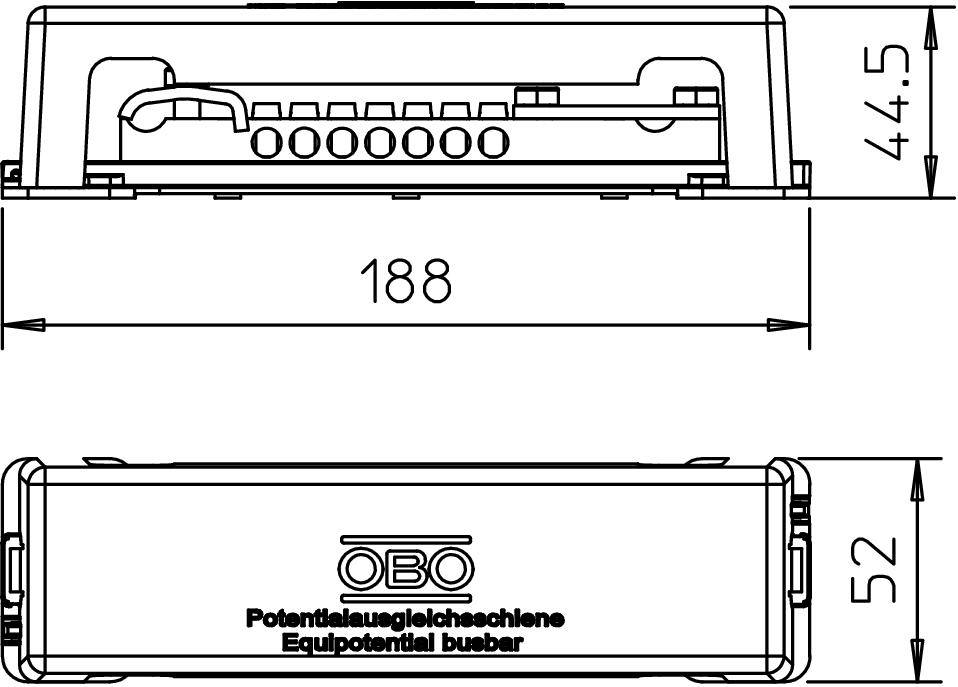

- Dim
(L x W x H) 188 x 52 x 44.5 mm
- Length
188 mm
- Width
52 mm
- Height
44.5 mm
- Content
1 pc(s)
- Wireless charging
No
- Weight
0.23
52
With covering cap
44.5 mm
Surface mounting fix
188 m
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2751045 OBO Bettermann 5015073 1809 Electrical bonding 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2751045 OBO Bettermann 5015073 1809 Electrical bonding 1 pc(s)
Description

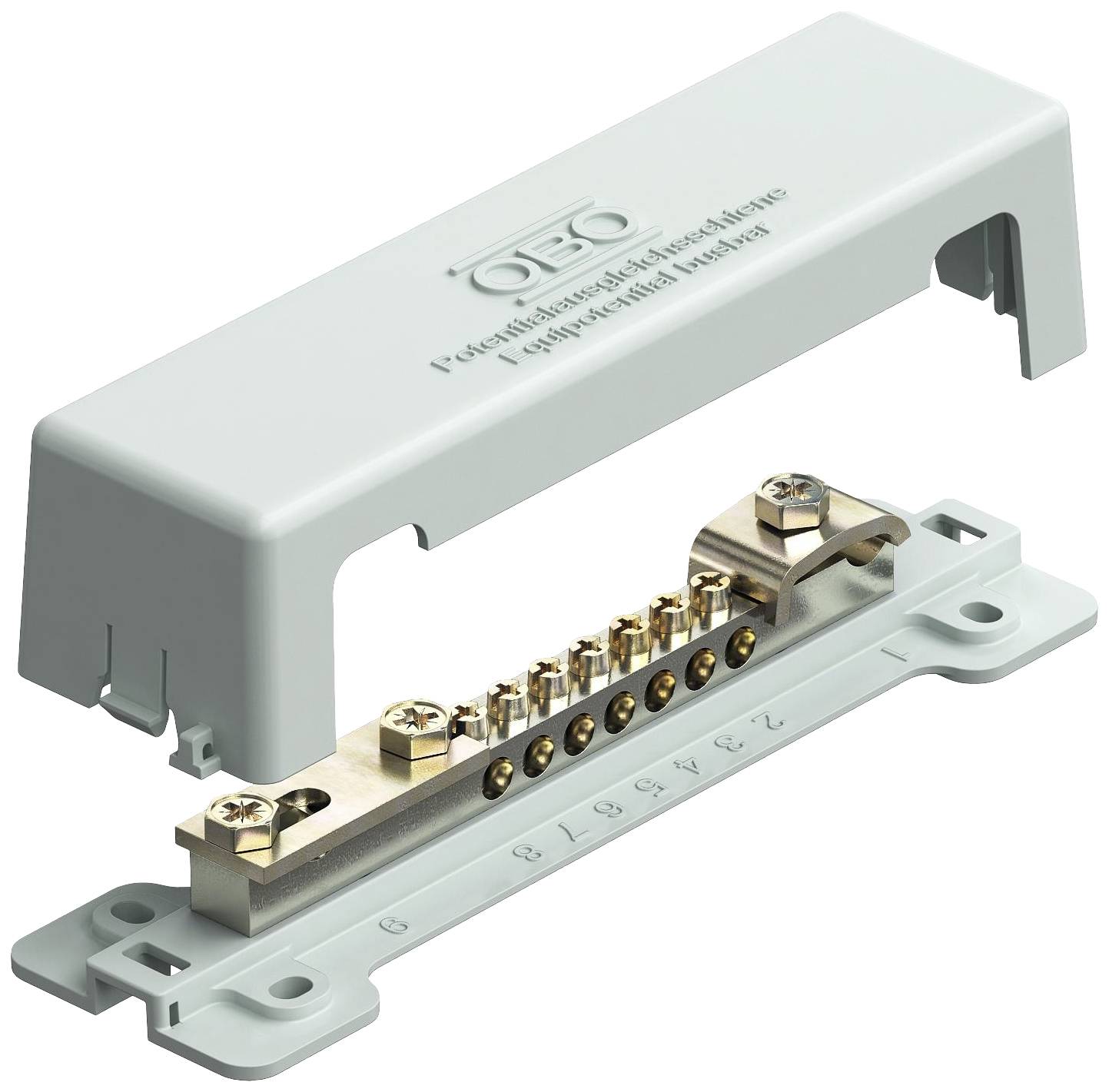

Potential equalization bar for the potential bonding according to DIN VDE 0100-410/-540 as well as lightning protection potential equalization according to DIN VDE 0185-305. Base plate and cover hood made of polystyrene, gray, cover sealable/inscribable, contact strip made of brass, nickel-plated, screws and cover made of steel, galvanized, lightning-current carrying capacity 100 kA (10/350). Connection possibilities: 7x single or multi-wired cables up to 25 mm² or fine-wired cables up to 16 mm², 1x round conductors Rd 8-10, 1x flat band up to FL30 or round conductors Rd 8-10. With sealable cover,
Made of impact-resistant plastic
