OBO Bettermann 5015081 1809 M Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = structure fix
- Version = with cover
- Insulator = Yes
- Height = 43 mm
- Width = 52 mm
- Length = 188 mm
- Number of connections round conductor total = 1
- Number of connections round conductor 8 mm = 0
- Number of connections round conductor 10 mm = 0
- Number of connections round conductor 8-10mm = 1
- Number of connections ribbon cables up to 30 mm = 1
- Number of connections ribbon cables up to 40 mm = 0
- Number of ports line up to 6 mm² rigid = 0
- Number of ports line up to 16mm² rigid = 0
- Number of connections cable up to 25 mm² rigid = 7
- Number of connections cable up to 95 mm² rigid = 0
- Material of the contact rail = brass
- Surface of the contact rail = Nickel-plated
- Material of the clip = Steel
- Surface of the clip = galvanically/Electrolytically galvanised
- Product type
Electrical bonding
- Manufacturer part #
5015081
- Dim

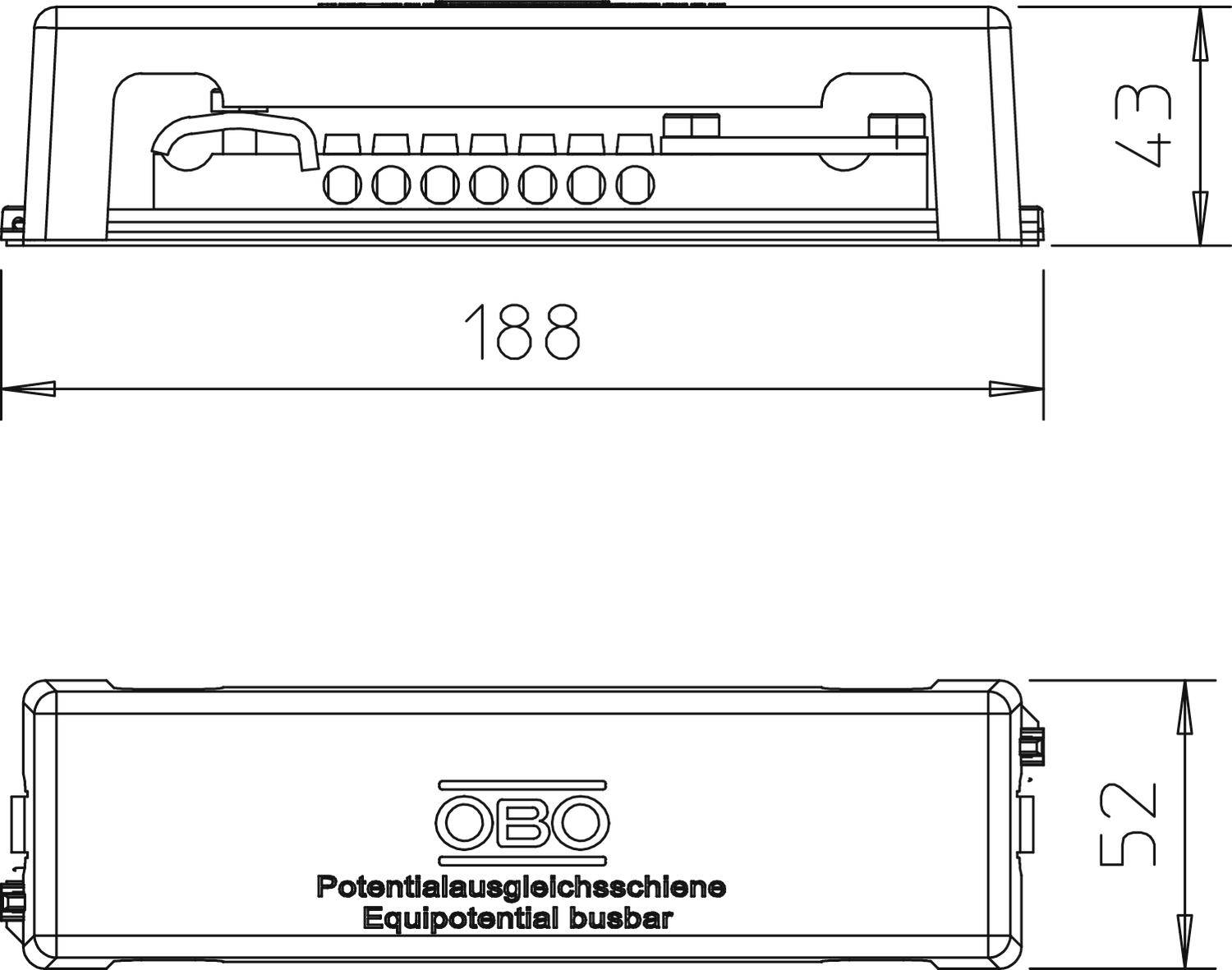

(L x W x H) 188 x 52 x 43 mm
- Length
188 mm
- Width
52 mm
- Height
43 mm
- Depth
188 mm
- Content
1 pc(s)
- Weight
1000 g
- UKCA
not relevant
Description

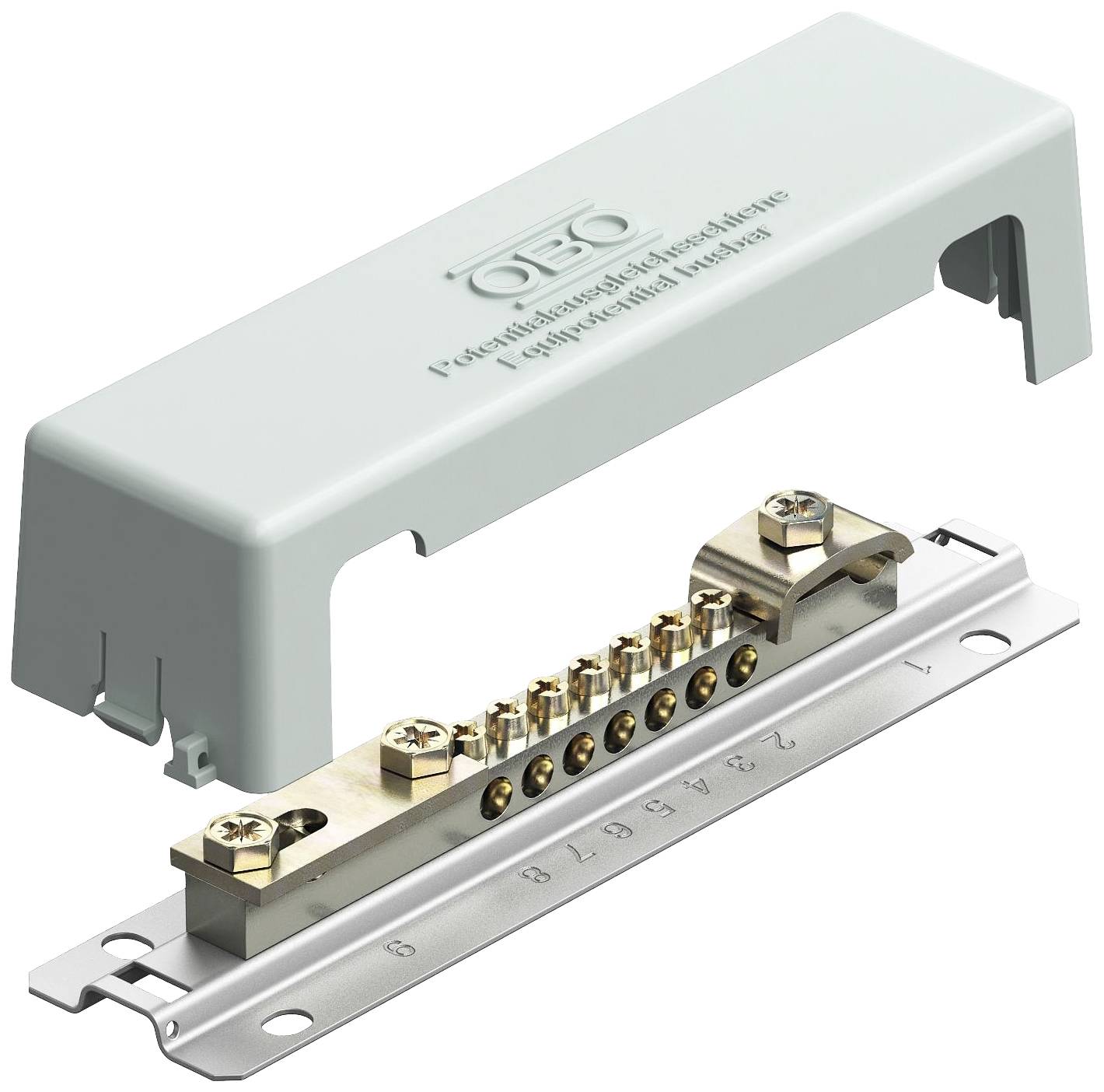

Cover made of polystirene gray, base plate made of steel galvanized, contact strip made from nickel-plated brass, screws and uberleger from Electrogalvanised steel.
