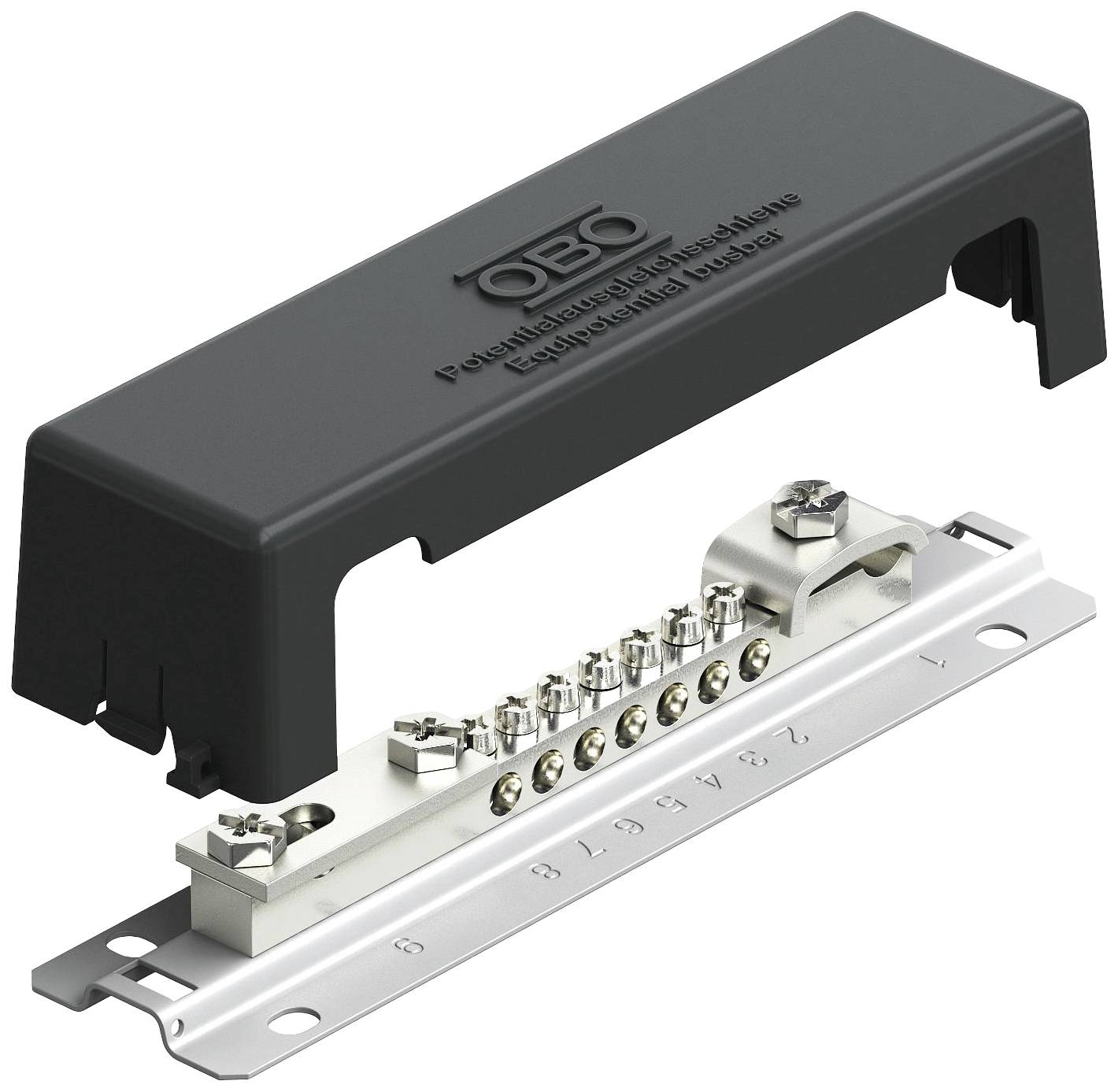

OBO Bettermann 5015105 1809 AM Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface of the contact rail = untreated
- Surface of the clip = untreated
- Product type
Electrical bonding
- Manufacturer part #
5015105
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Length
150 cm
- Width
50 mm
- Height
100 mm
- Content
1 pc(s)
52

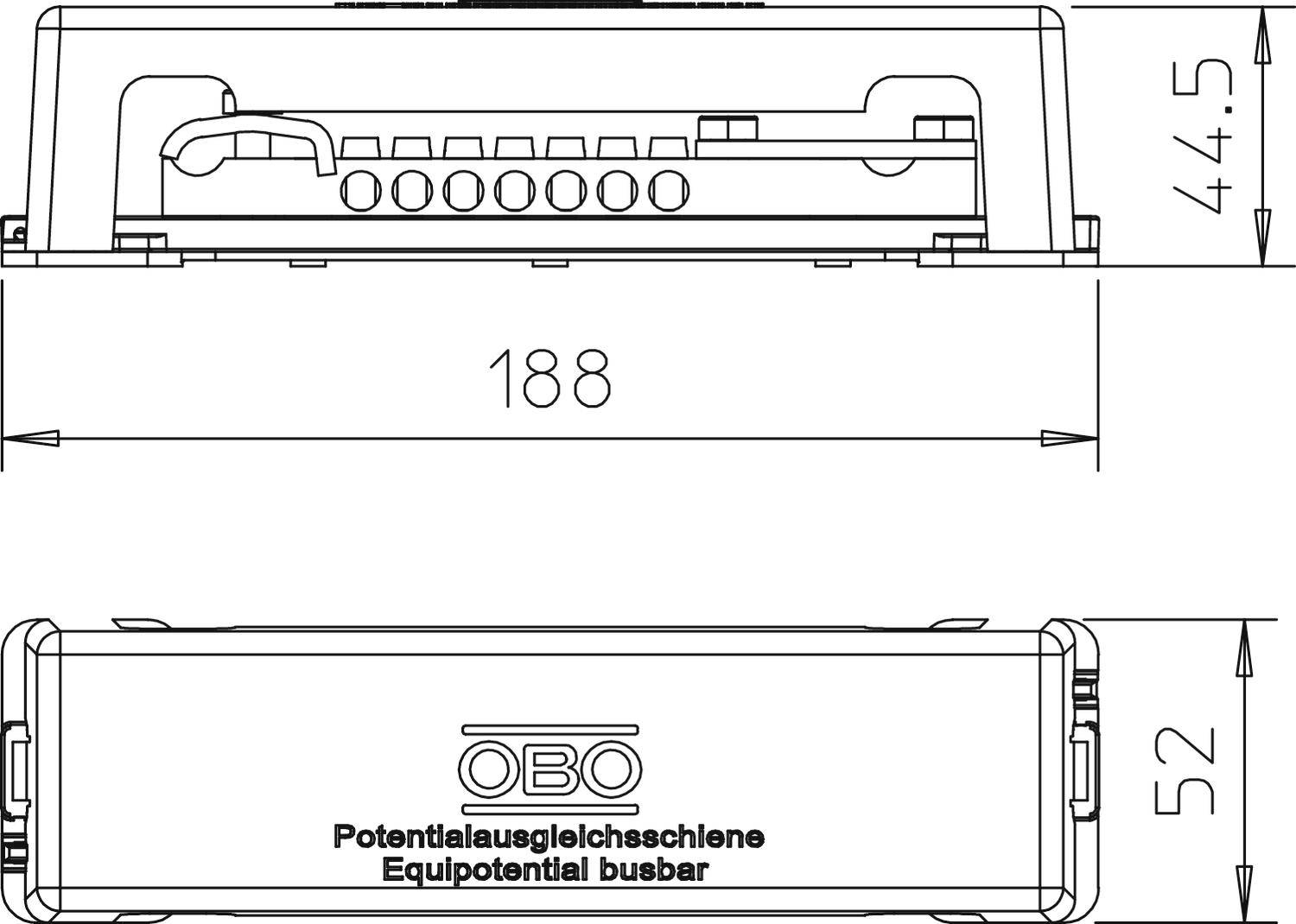

With covering cap
44.5 mm
Surface mounting fix
188 m
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955849 OBO Bettermann 5015105 1809 AM Electrical bonding 1 pc(s)
Description
Equipotential bonding rail connection options: - 7 x single and multi-cables up to 25 mm² or fine-stranded cables up to 16mm² - 1x round conductor Rd 8-10 - 1x flat ribbon to FL 30 or round conductor Rd 8-10-cover made of polystirene foot plate made of steel, surface zinc-iron-UV-resistant screws and uberleger made of VA-lightning current-carrying capacity 50 kA (10/350) Color: black weight 23 kg/100 pcs. Type: 1809 AT THE Art.-No.: 5015105
