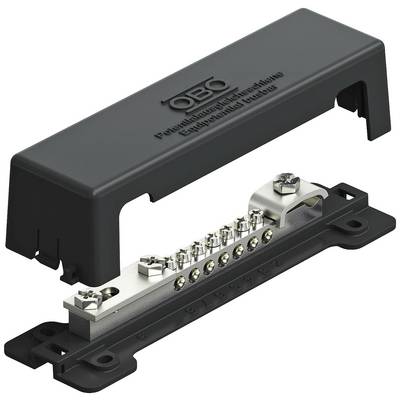

OBO Bettermann 5015111 1809 A Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = structure fix
- Version = with cover
- Insulator = Yes
- Height = 44.5 mm
- Width = 52 mm
- Length = 188 mm
- Number of connections round conductor total = 0
- Number of connections round conductor 8 mm = 0
- Number of connections round conductor 10 mm = 0
- Number of connections round conductor 8-10mm = 1
- Number of connections ribbon cables up to 30 mm = 1
- Number of connections ribbon cables up to 40 mm = 0
- Number of ports line up to 6 mm² rigid = 0
- Number of ports line up to 16mm² rigid = 0
- Number of connections cable up to 25 mm² rigid = 7
- Number of connections cable up to 95 mm² rigid = 0
- Material of the contact rail = brass
- Surface of the contact rail = Nickel-plated
- Material of the clip = stainless steel (V2A)
- Surface of the clip = untreated
- Product type
Electrical bonding
- Manufacturer part #
5015111
- Factory colour
Multicolour
- Dim
(L x W x H) 188 x 52 x 44.5 mm
- Length
188 mm
- Width
52 mm
- Height
44.5 mm
- Depth
188 mm
- Content
1 pc(s)
- Weight
0.23
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960317 OBO Bettermann 5015111 1809 A Electrical bonding 1 pc(s)
Description
Clamping points tested according to VDE 0609, base plate and cover made of polystirene gray, contact strip made from nickel-plated brass, screws and uberleger from VA. For outdoor area. Base plate and cover made of polystirene-UV-resistant
