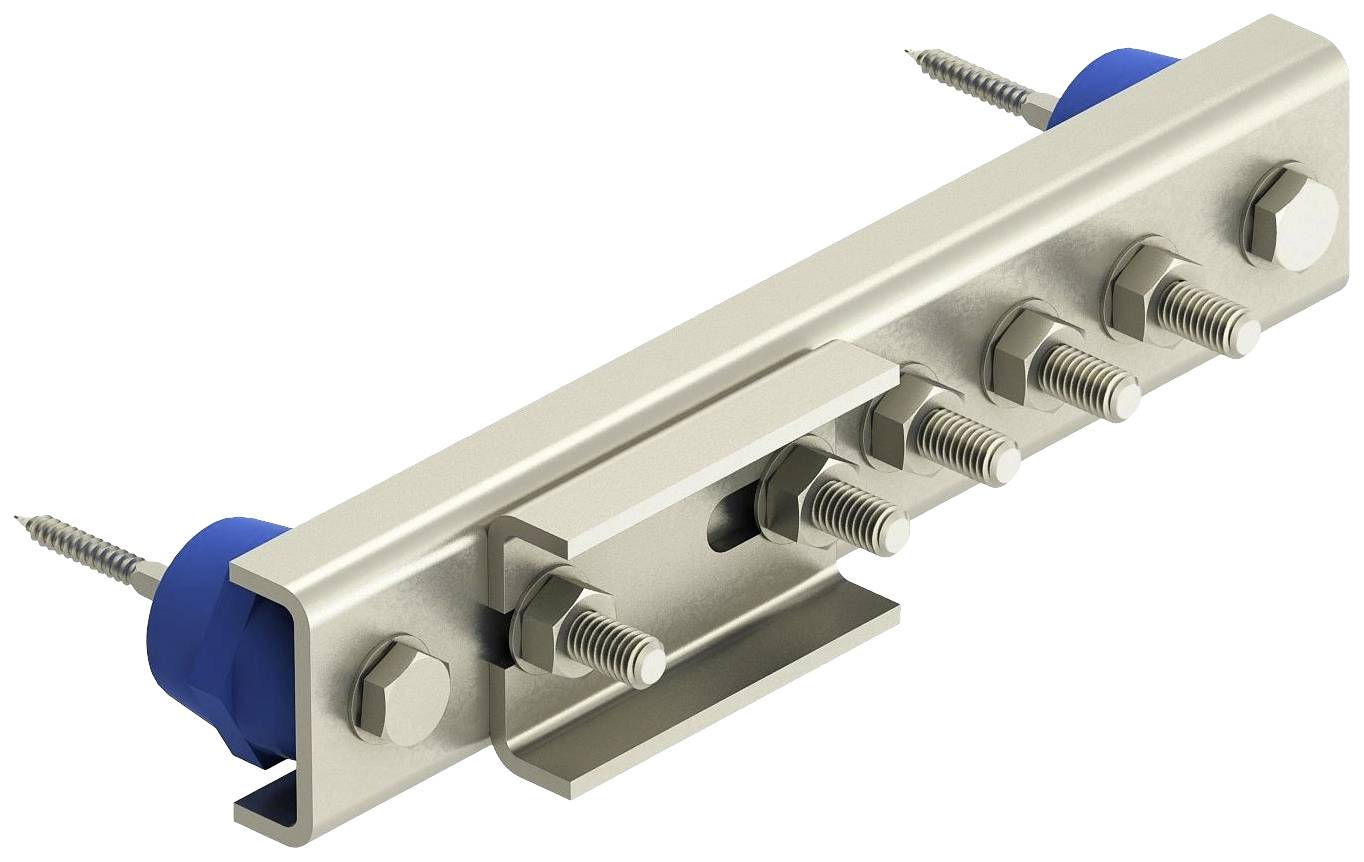

OBO Bettermann 5015270 EX PAS 10 Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design = structure fix
- Design = only terminal
- Insulator = Yes
- Height = 4 mm
- Width = 54 mm
- Length = 441 mm
- Number of connections round conductors, total=10
- Number of connections round conductor 8 mm = 0
- Number of connections round conductor 10 mm = 0
- Number of connections round conductor 8-10mm = 0
- Number of connections ribbon cables up to 30 mm = 0
- Number of connections ribbon cables up to 40 mm = 1
- Number of ports line up to 6 mm² rigid = 0
- Number of ports line up to 16mm² rigid = 0
- Number of connections cable up to 25 mm² rigid = 0
- Number of connections cable up to 95 mm² rigid = 0
- Material of the contact rail = rust free steel (V2A)
- Surface of the contact rail = untreated
- Material of the clip = stainless steel (V2A)
- Surface of the clip = untreated
- Product type
Electrical bonding
- Manufacturer part #
5015270
- Dim

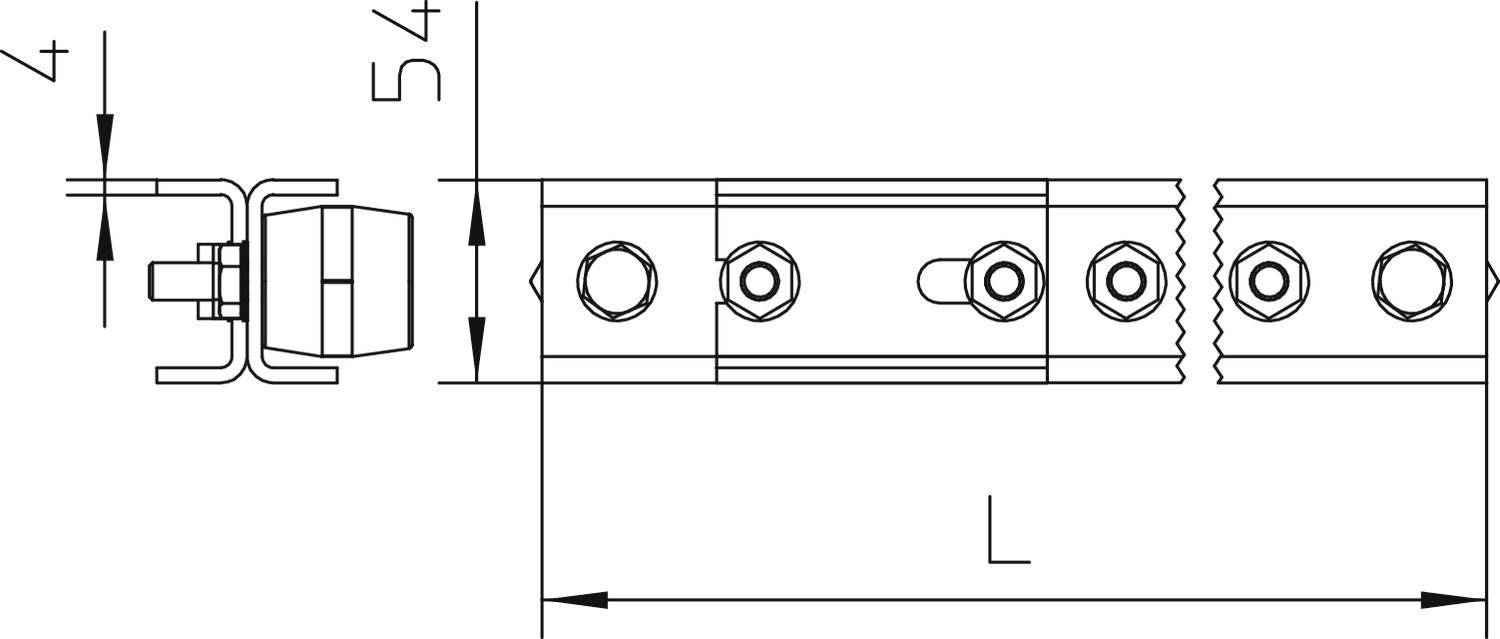

(L x W x H) 441 x 54 x 4 mm
- Length
441 mm
- Width
54 mm
- Height
4 mm
- Depth
441 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1964534 OBO Bettermann 5015270 EX PAS 10 Electrical bonding 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1964534 OBO Bettermann 5015270 EX PAS 10 Electrical bonding 1 pc(s)
Description
The equipotential bonding rail EX PAS for the potential compensation according to DIN VDE 0100-410/540 as well as lightning protection potential compensation according to DIN VDE 0185-305 (IEC 62305) is suitable for use in hazardous areas Ex zone 1 and 2 as well as 21 and 22. The EX PAS is tested according to the explosion group IIC up to 75 kA and thus representative for all explosive gas and vapor-air mixtures of explosion group IIA, IIB and IIC, as well as all explosive dust-air mixtures. The equipotential bonding rail is class H (100 kA) according to DIN EN 62561-1 (IEC 62561-1) is tested. Spring Washers for screw fuse with automatic loosen according to VDE 0165-1 (IEC 60079-14) and the technical rules for operational safety (TRBS) 2152 part 3 as well as the UV stabilizer etched and halogen-free insulator feet provide a flexible use in outdoor and indoor areas.
