OBO Bettermann 5015847 1802 14 CU Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = structure fix
- Design = only terminal
- Insulator = Yes
- Height = 5 mm
- Width = 40 mm
- Length = 538,5 mm
- Number of connections round conductors, total=14
- Number of connections round conductor 8 mm = 0
- Number of connections round conductor 10 mm = 0
- Number of connections round conductor 8-10mm = 0
- Number of connections ribbon cables up to 30 mm = 0
- Number of connections ribbon cables up to 40 mm = 0
- Number of ports line up to 6 mm² rigid = 0
- Number of ports line up to 16mm² rigid = 0
- Number of connections cable up to 25 mm² rigid = 0
- Number of connections cable up to 95 mm² rigid = 0
- The contact rail material = copper
- Surface of the contact rail = untreated
- Material of the clip = copper
- Surface of the clip = untreated
- Product type
Electrical bonding
- Manufacturer part #
5015847

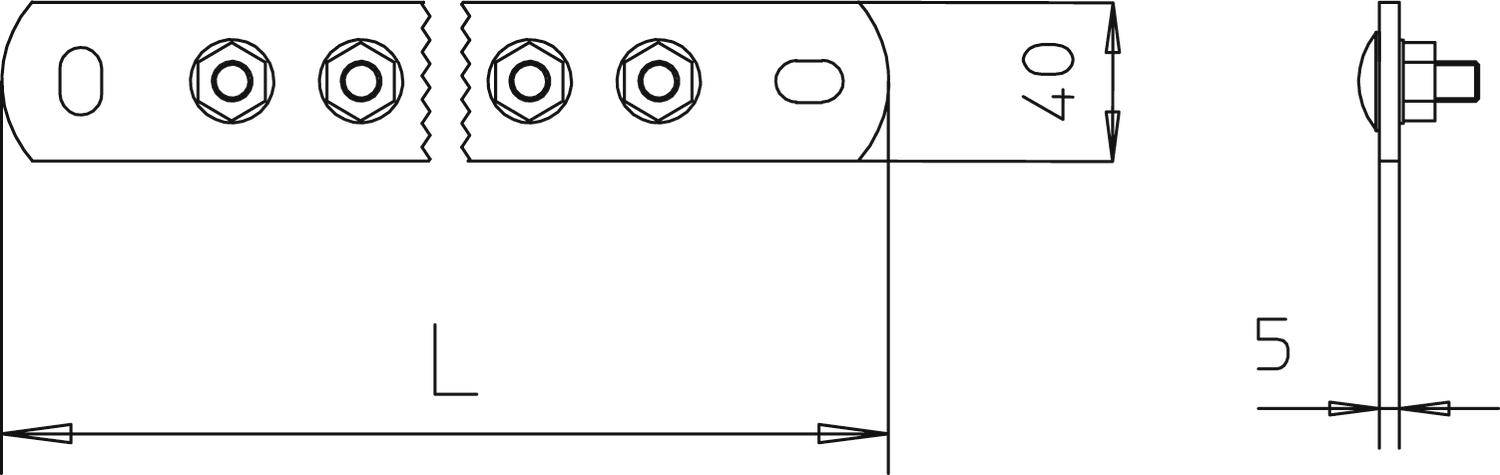

- Dim
(L x W x H) 538.5 x 40 x 5 mm
- Length
538.5 mm
- Width
40 mm
- Height
5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966141 OBO Bettermann 5015847 1802 14 CU Electrical bonding 1 pc(s)
Description

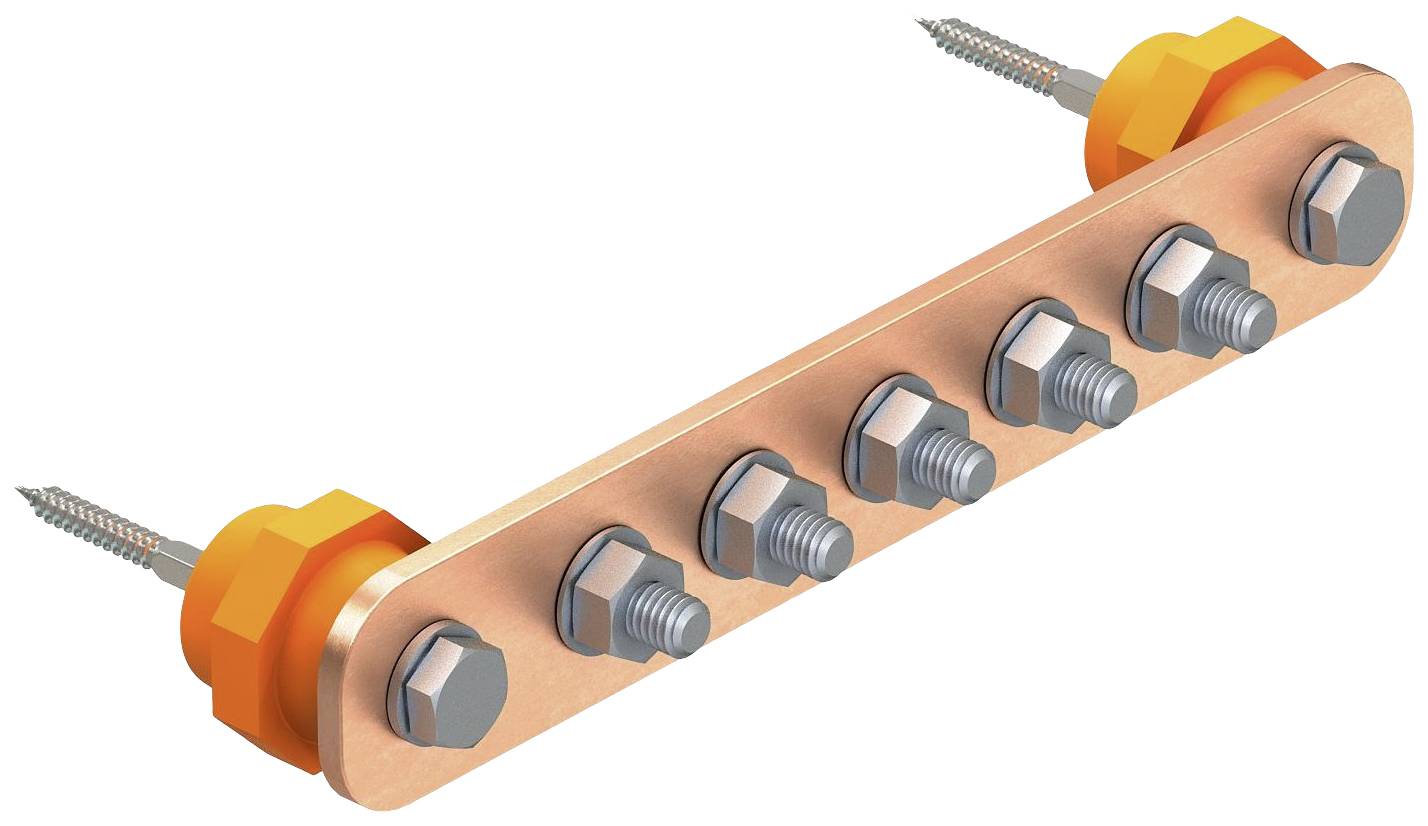

Equipotential bonding rail BigBar/14 connections with insulator feet for countless applications in the industry - suitable for the main potential equalization according to DIN VDE 0100 Part 410 and part 540, as well as lightning protection potential compensation according to DIN VDE 0185-305 Part 3 - fast and easy installation of the connection cables to the contact rail by means of lock screws M10 - complete with wall plugs and screws for wall mounting number of connections: 14
