OBO Bettermann 5015849 1802 20 CU Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

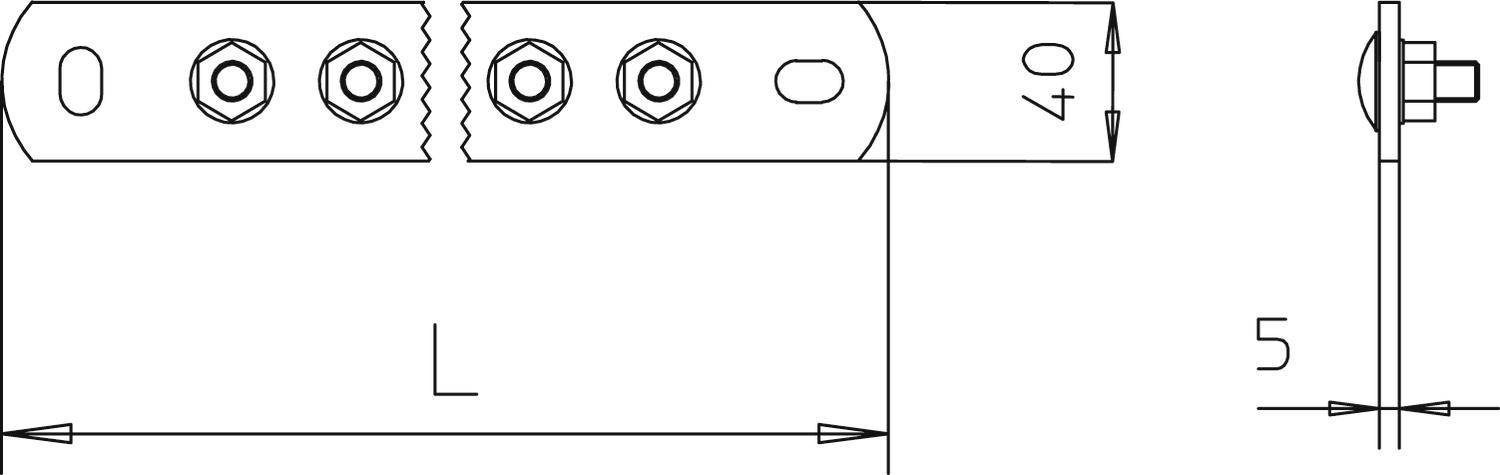

- Height = 5 mm
- Width = 40 mm
- Length = 733,5 mm
- Product type
Electrical bonding
- Manufacturer part #
5015849
- Dim
(L x W x H) 733.5 x 40 x 5 mm
- Length
733.5 mm
- Width
40 mm
- Height
5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955318 OBO Bettermann 5015849 1802 20 CU Electrical bonding 1 pc(s)
Description

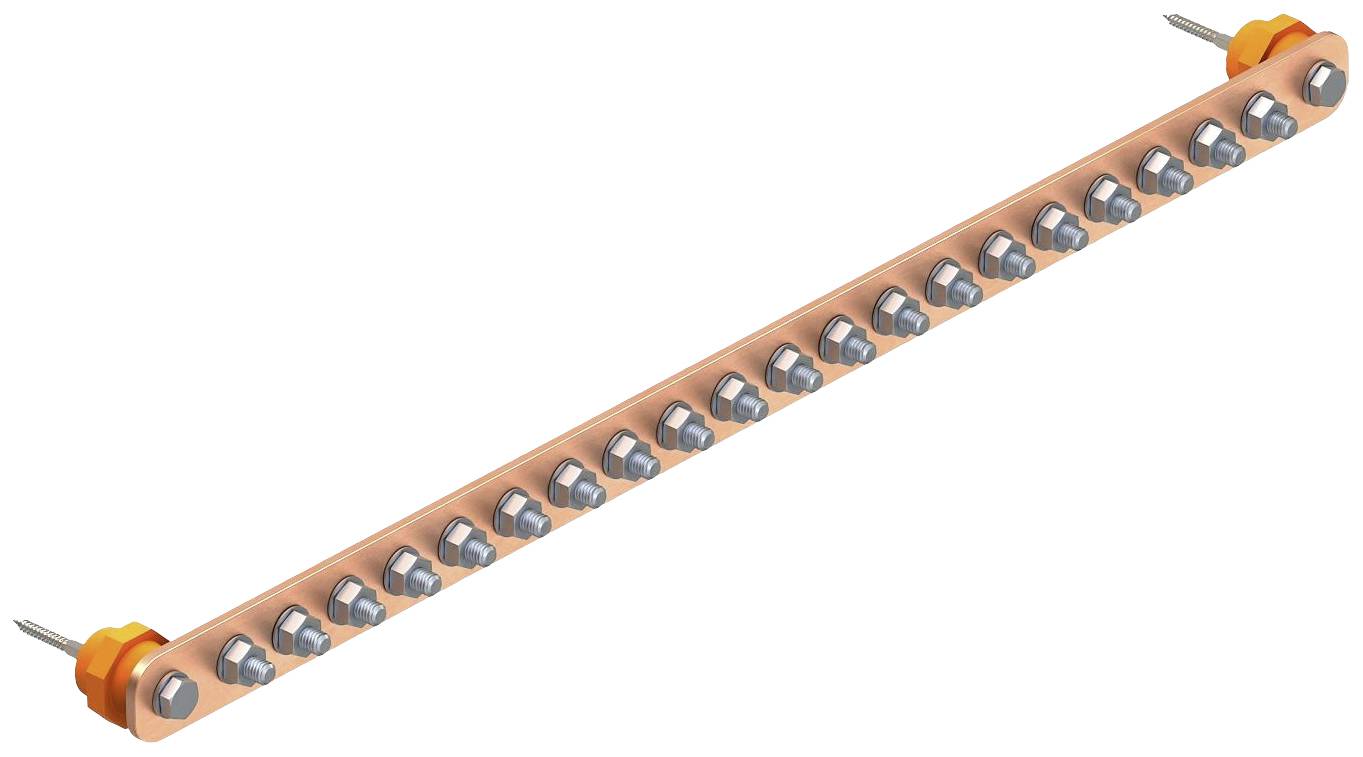

Equipotential bonding rail BigBar/20 connections with insulator feet for countless applications in the industry - suitable for the main potential equalization according to DIN VDE 0100 Part 410 and part 540, as well as lightning protection potential compensation according to DIN VDE 0185-305 Part 3 - fast and easy installation of the connection cables to the contact rail by means of lock screws M10 - 5 or 10 connection options - the variants made of stainless steel (V2A) suitable for outdoor use - complete with wall plugs and screws for wall mounting number of connections: 20 material: Copper weight: 225,45 kg/100 pcs. Type: 1802 20 CU Art.-No.: 5015849
