OBO Bettermann 5015876 1802 DC 5+5 VA Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Electrical bonding
- Manufacturer part #
5015876

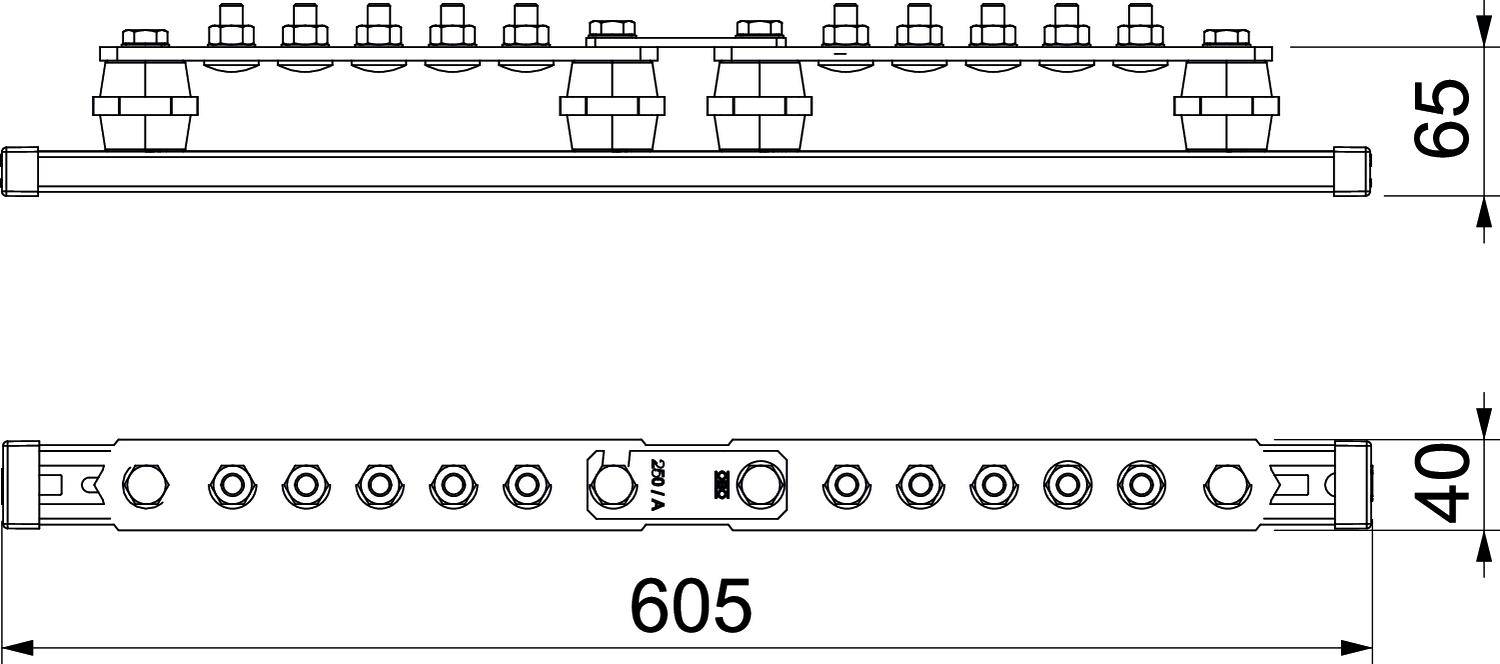

- Dim
(L x W x H) 605 x 40 x 85 mm
- Length
605 mm
- Width
40 mm
- Height
85 mm
- Content
1 pc(s)
- UKCA
not relevant
Description

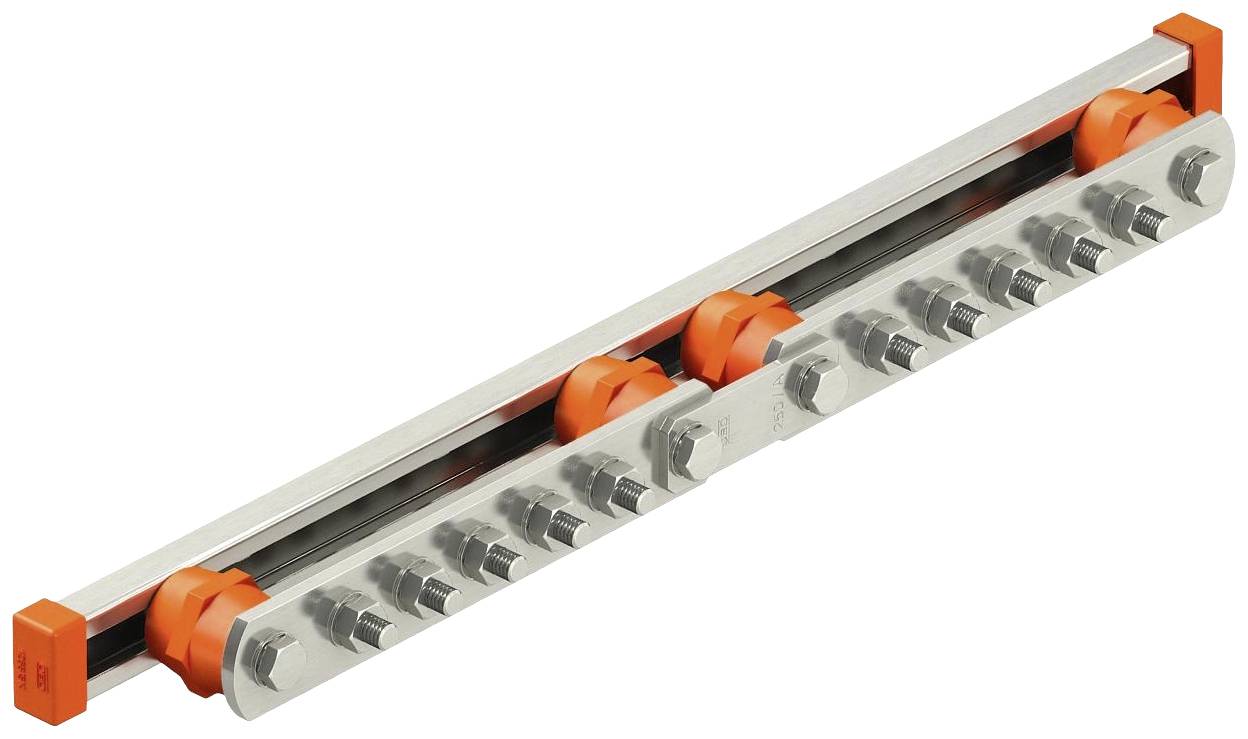

Potential equalization bar BigBar/5+5 connections VA main potential bonding bar for the equipotential bonding according to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding according to DIN VDE 0185-305 (IEC 62305) - with disconnection point (Disconnect - DC) - For flexible wall mounting - complete with mounting rail (FT) and screws - variants made of stainless steel (V2A) suitable for use outdoors - quick and easy mounting of the connecting cable by means of lock screws M10 - with spring washer (DIN137) for screw locking against self-loosening Number of connections: 10 Material: Stainless steel, stainless material 1.4301 Weight: 237 kg/100 pcs Type: 1802 DC 5+5 VA Art.-Nr.: 5015876
