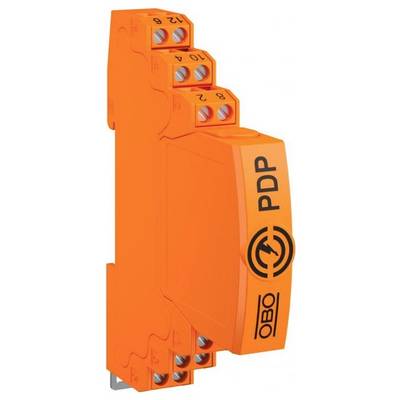

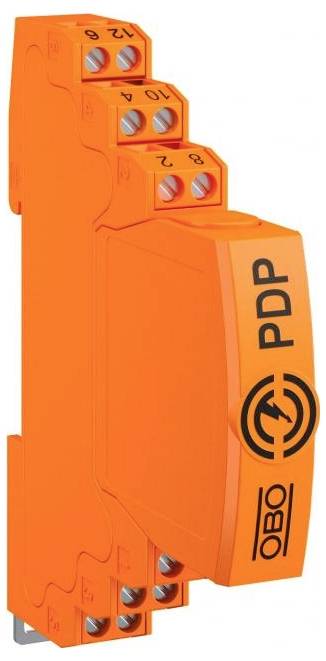

OBO Bettermann 5080319 5080319 Data network surge protection 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Highest continuous voltage AC 12 V
- Max. Continuous voltage DC 16 V
- Nominal surge current (8/20) 10 kA
- Protection level wire/wire 130 V
- Protection level wire/earth 850 V
- Signalling at device: Without
- Product type
Data network surge protection
- Leakage current
10 kA
- Manufacturer part #
5080319
- Width
12.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162020 OBO Bettermann 5080319 5080319 Data network surge protection 1 pc(s)
Description
Pluggable data cable protection type 1+2/D1+C2 for use in measurement, control and regulation systems
Protective device for multi-wire systems
Direct shielding earthing
Frequency range up to 100 MHz
Grounding via the DIN rail or connection cable is possible

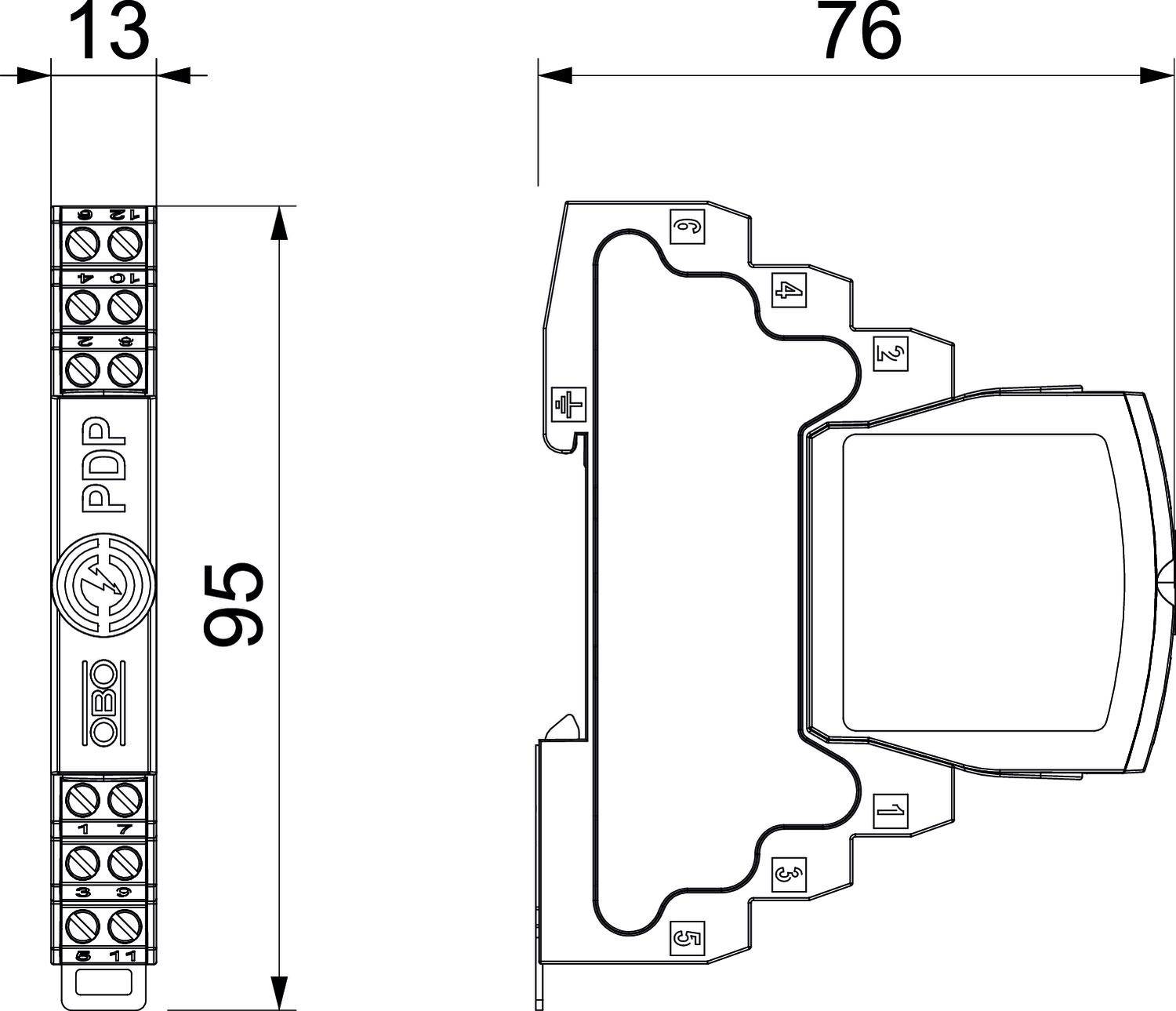

Small width of 12.5 mm
High plant availability - no signal interruption without protection module
Application: Universal lightning and surge protection for data transfer devices in the MSR technology.
This text is machine translated.
Protective device for multi-wire systems
Direct shielding earthing
Frequency range up to 100 MHz
Grounding via the DIN rail or connection cable is possible
Small width of 12.5 mm
High plant availability - no signal interruption without protection module
Application: Universal lightning and surge protection for data transfer devices in the MSR technology.
