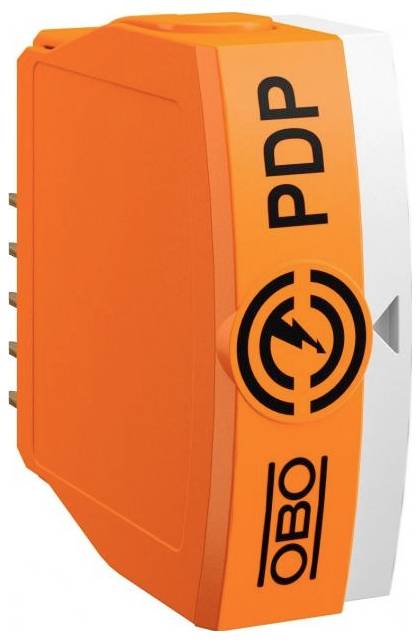

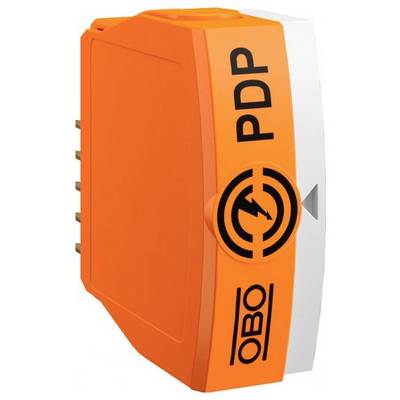

OBO Bettermann 5080430 5080430 Data network surge protection 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Highest continuous voltage AC 4.2 V
- Max. Continuous voltage DC 6 V
- Nominal surge current (8/20) 10 kA
- Signalling at device: Without
- Product type
Data network surge protection
- Leakage current
10 kA
- Manufacturer part #
5080430

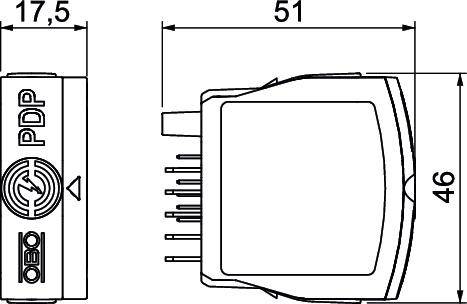

- Width
12.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134982 OBO Bettermann 5080430 5080430 Data network surge protection 1 pc(s)
Description
Upper section, pluggable data cable protection type 1+2/D1+C2 for use in measurement, control and regulation technology
Protective device for multi-wire systems
Frequency range up to 100 MHz
Small width of 12.5 mm
With optical signaling and remote signaling options
Application: Universal lightning and surge protection for data transfer devices in the MSR technology.
This text is machine translated.
Protective device for multi-wire systems
Frequency range up to 100 MHz
Small width of 12.5 mm
With optical signaling and remote signaling options
Application: Universal lightning and surge protection for data transfer devices in the MSR technology.
