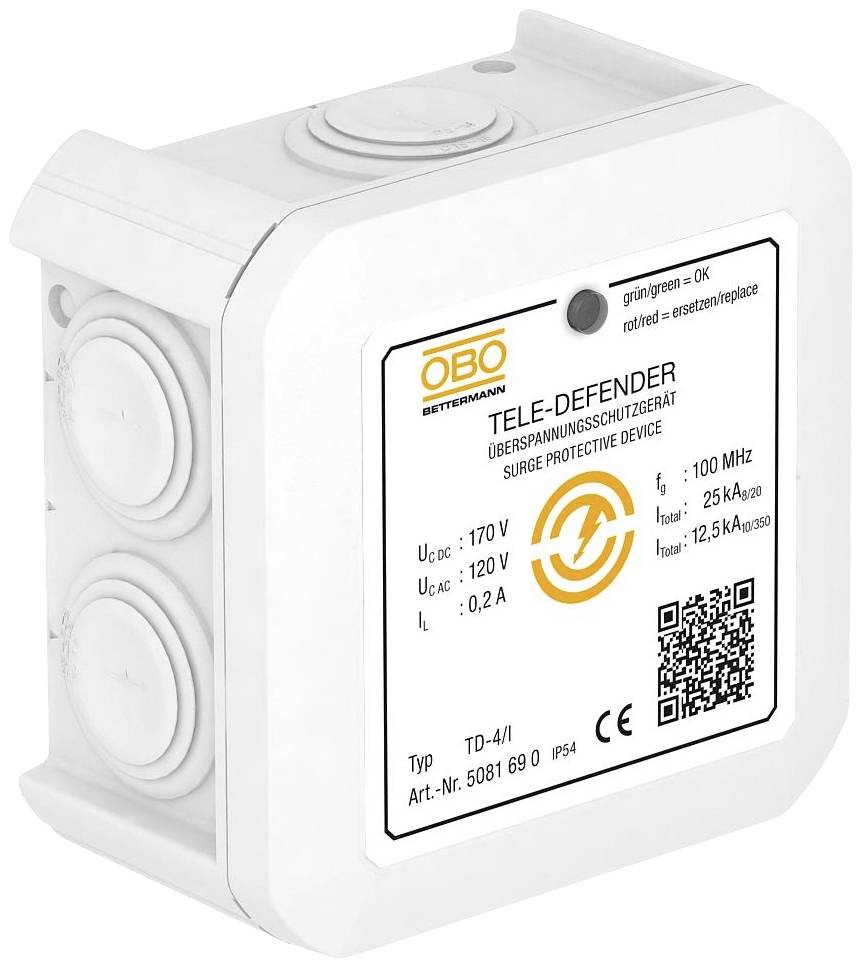

OBO Bettermann 5081690 TD-4/I Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 120 V
- The highest continuous voltage DC: 170 V
- Track 1: Terminal
- Surge arrester monitoring: no
- With remote signalling contact: no
- Signaling on the device: optical
- Explosion tested design: no
- Product type
Surge protection device
- Type
Mounting type: wall mounted
- Operating temperature
-40 to +80 °C
IP54
- Manufacturer part #
5081690

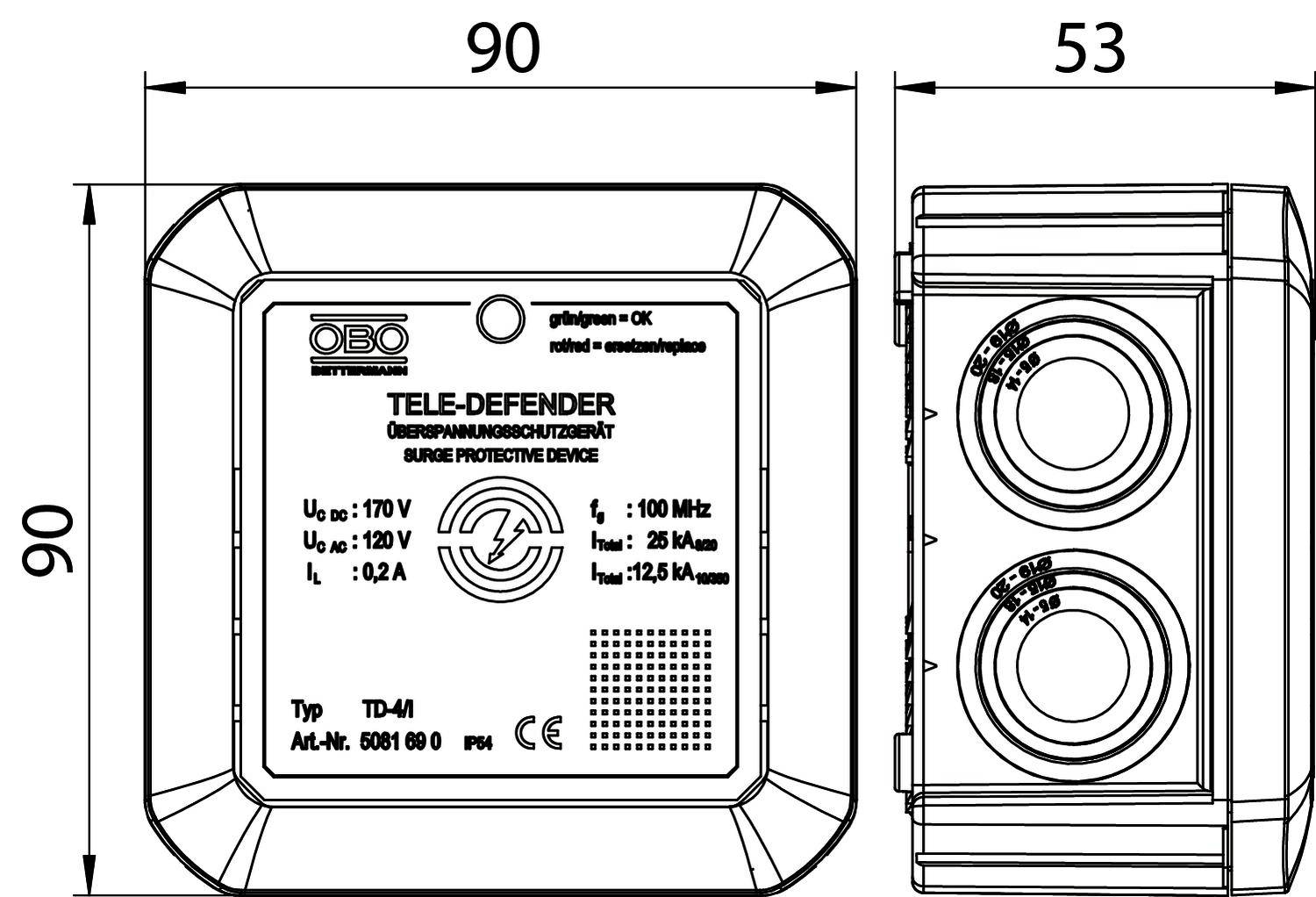

- Dim
(W x H x D) 90 x 90 x 53 mm
- Width
90 mm
- Height
90 mm
- Depth
53 mm
- Content
1 pc(s)
- Packaging type
Piece
- Mounting type
Surface-mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961875 OBO Bettermann 5081690 TD-4/I Surge protection device 1 pc(s)
Description
Data line protection devices for telecommunications equipment. Low voltage protection level at high current load. Push-in terminals for quick installation. Bandwidth optimized for secure transmission. Surface mounting Visual function display Application for DSL, ISDN or analog telecommunications systems.
