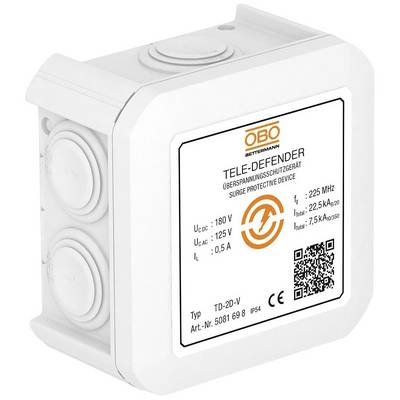

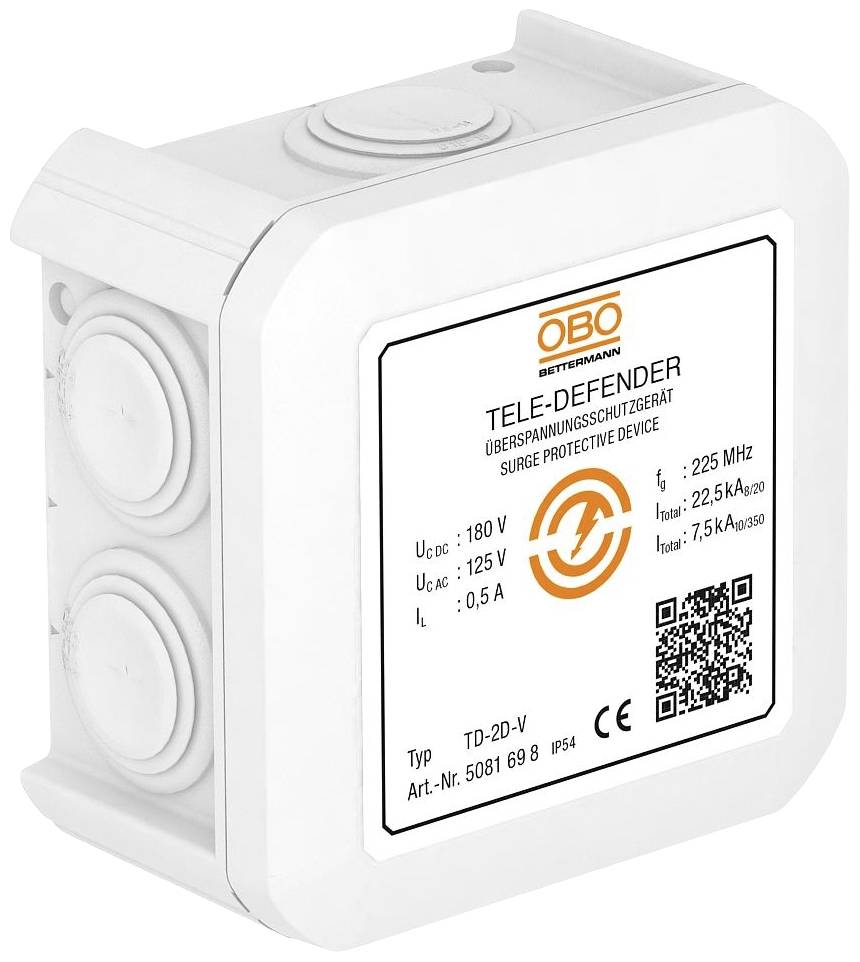

OBO Bettermann 5081698 TD-2D-V Surge protection device 7.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 125 V
- The highest continuous voltage DC: 180 V
- Nominal load current: 0.5 A
- Protection level wire/wire: 350V
- Protection level wire/Earth: 600 V
- Cut-off frequency: 225 MHz
- Track 1: Terminal
- Surge arrester monitoring: no
- With remote signalling contact: no
- Signaling on the device: without
- Explosion tested design: no
- Product type
Surge protection device
- Leakage current
7.5 kA
- Type
Mounting type: wall mounted
- Operating temperature
-40 to +80 °C
IP54
- Manufacturer part #
5081698

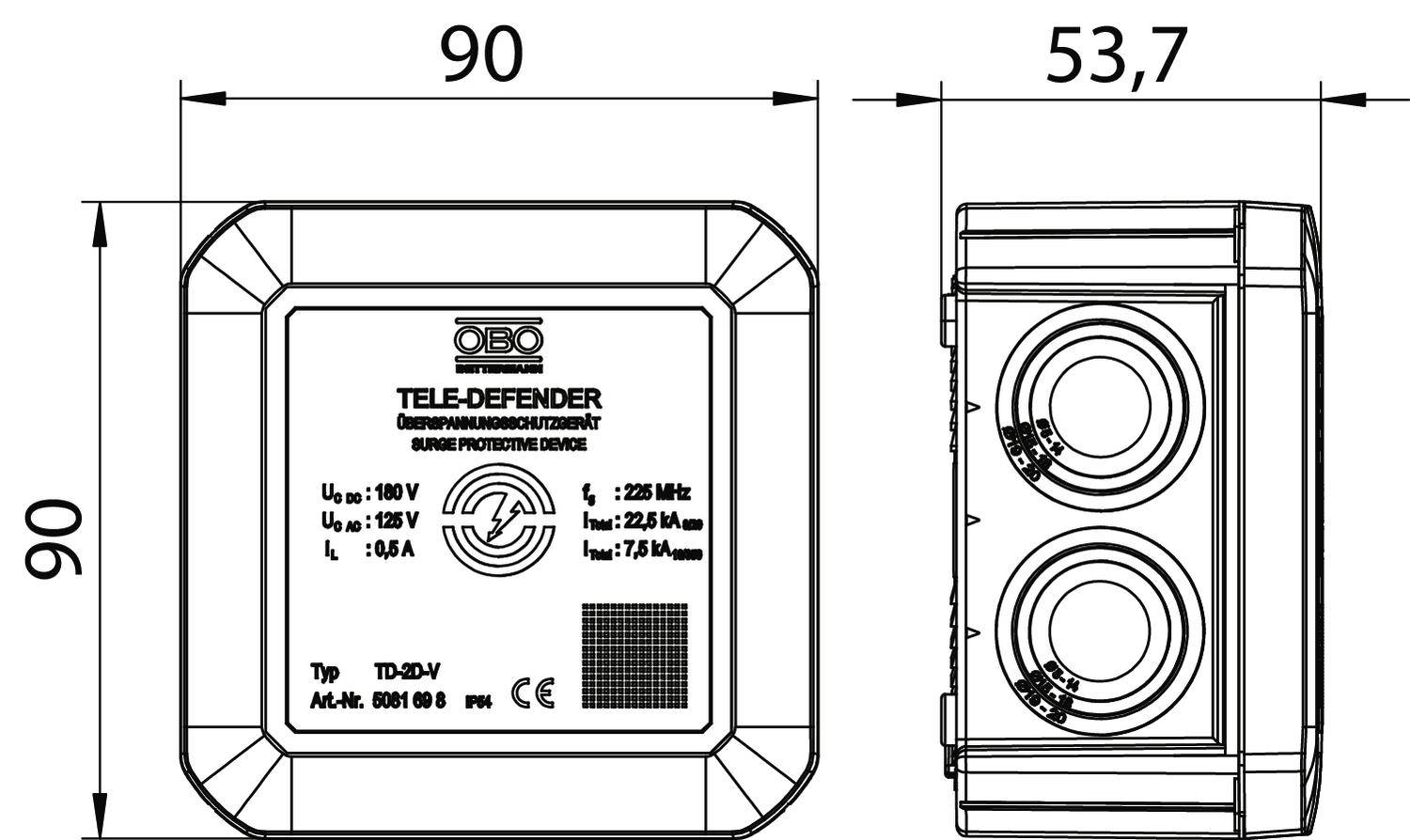

- Dim
(W x H x D) 90 x 90 x 53.7 mm
- Width
90 mm
- Height
90 mm
- Depth
53.7 mm
- Content
1 pc(s)
- Mounting type
Surface-mount
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964597 OBO Bettermann 5081698 TD-2D-V Surge protection device 7.5 kA 1 pc(s)
Description
Data line protection devices for telecommunications equipment. Low voltage protection level at high current load. Terminals for quick installation. Bandwidth optimized for secure transmissions up to 225 MHz. Surface mounting For use with DSL systems, particularly in the case of VDSL and IP connections, ISDN or analog telecommunications base connections
