OBO Bettermann 5081800 ND-CAT6A/EA Surge protection device 7 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 41 V
- The highest continuous voltage DC: 58 V
- Nominal load current 1 A
- Protection level wire/wire: 120 V
- Protection level wire/Earth: 700 V
- Installation type: Other
- Track 1: RJ45
- With remote signalling contact: no
- Signaling on the device: without
- Explosion tested design: no
- Product type
Surge protection device
- Leakage current
7 kA
- Operating temperature
-40 to +80 °C
IP10
- Manufacturer part #
5081800
- Factory colour
Multicolour
- Compatible with (details)
High-speed networks

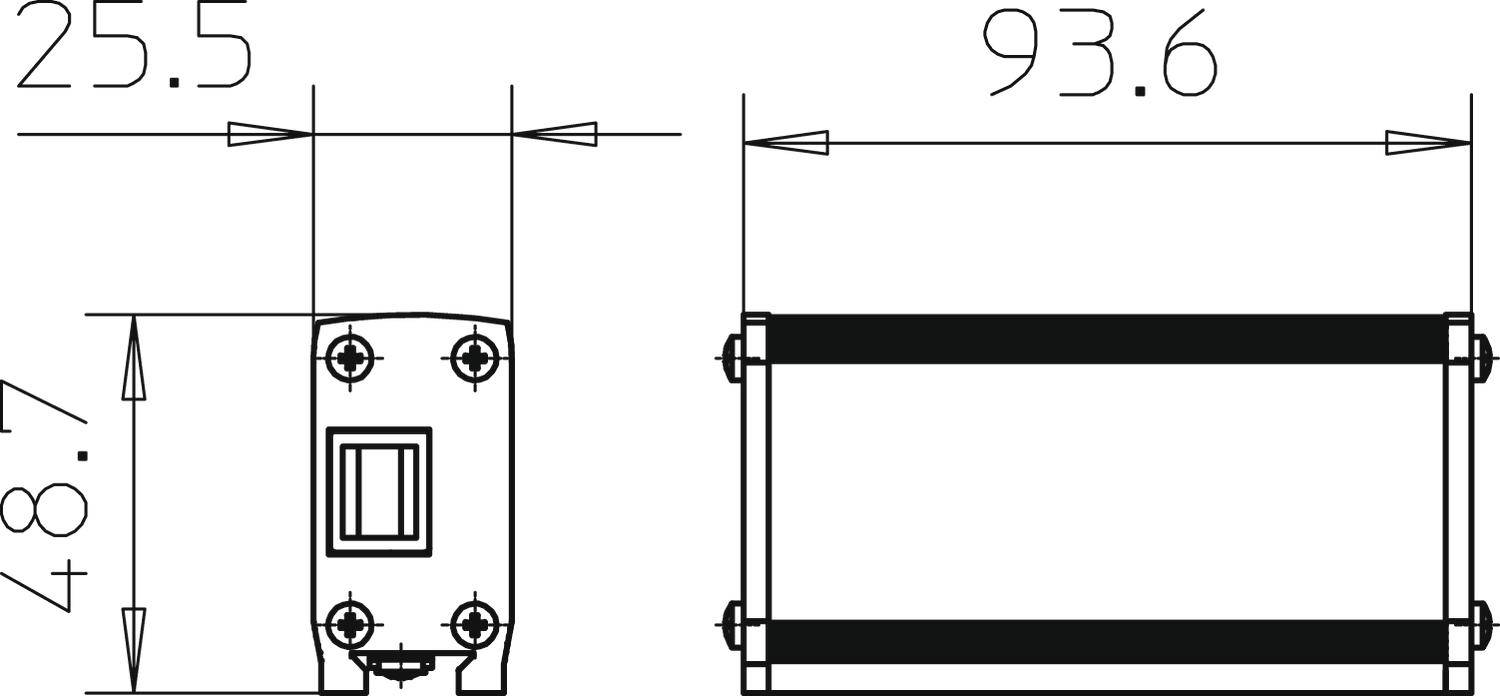

- Dim
(W x H x D) 93.6 x 48.7 x 25.5 mm
- Width
93.6 mm
- Height
48.7 mm
- Depth
25.5 mm
- Content
1 pc(s)
Connector/cable adapter
FALSE
IP20
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963219 OBO Bettermann 5081800 ND-CAT6A/EA Surge protection device 7 kA 1 pc(s)
Description
Data line protection device for high-speed networks with high-quality RJ-45 jacks and low voltage protection level at high current load. Support of Power over Ethernet + up to 1 A. Approved transmission quality in networks up to 10 GBit (Class EA) or CAT 6A. Quick Installation by plug-in design.
