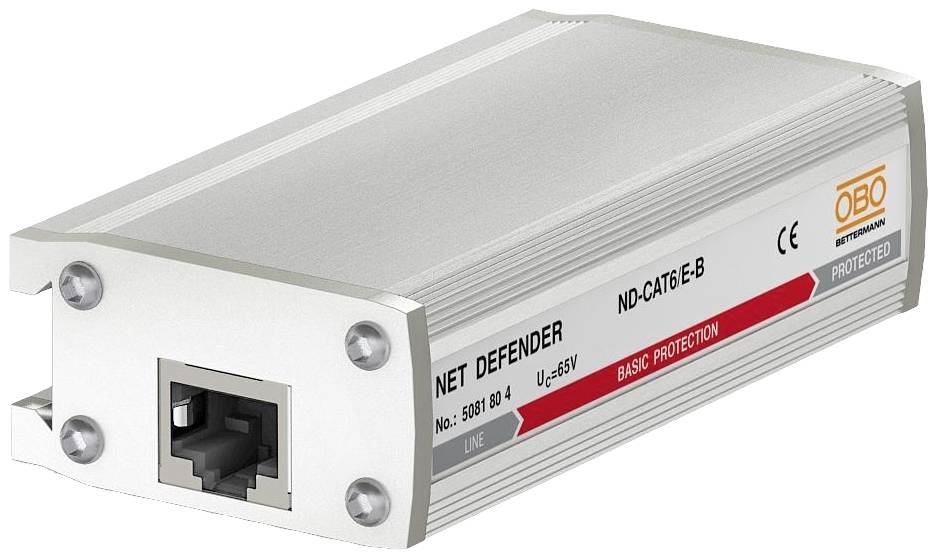

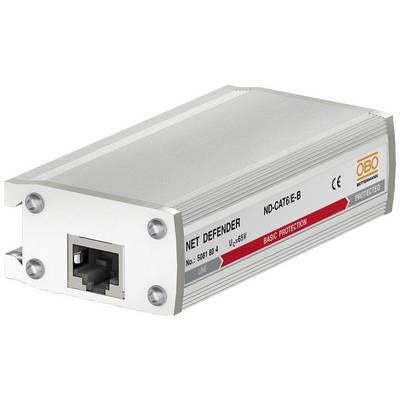

OBO Bettermann 5081804 ND-CAT6/E-B Surge protection device 7 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 41 V
- The highest continuous voltage DC: 58 V
- Nominal load current 1 A
- Protection level wire/wire: 120 V
- Protection level wire/Earth: 700 V
- Cut-off frequency: 500 MHz
- Track 1: RJ45
- With remote signalling contact: no
- Explosion tested design: no
- Product type
Surge protection device
- Leakage current
7 kA
- Type
Installation type: Connector/cable adapter
- Operating temperature
-40 to +80 °C
- Manufacturer part #
5081804
- Factory colour
Silver-grey
- Compatible with (details)
High-speed networks

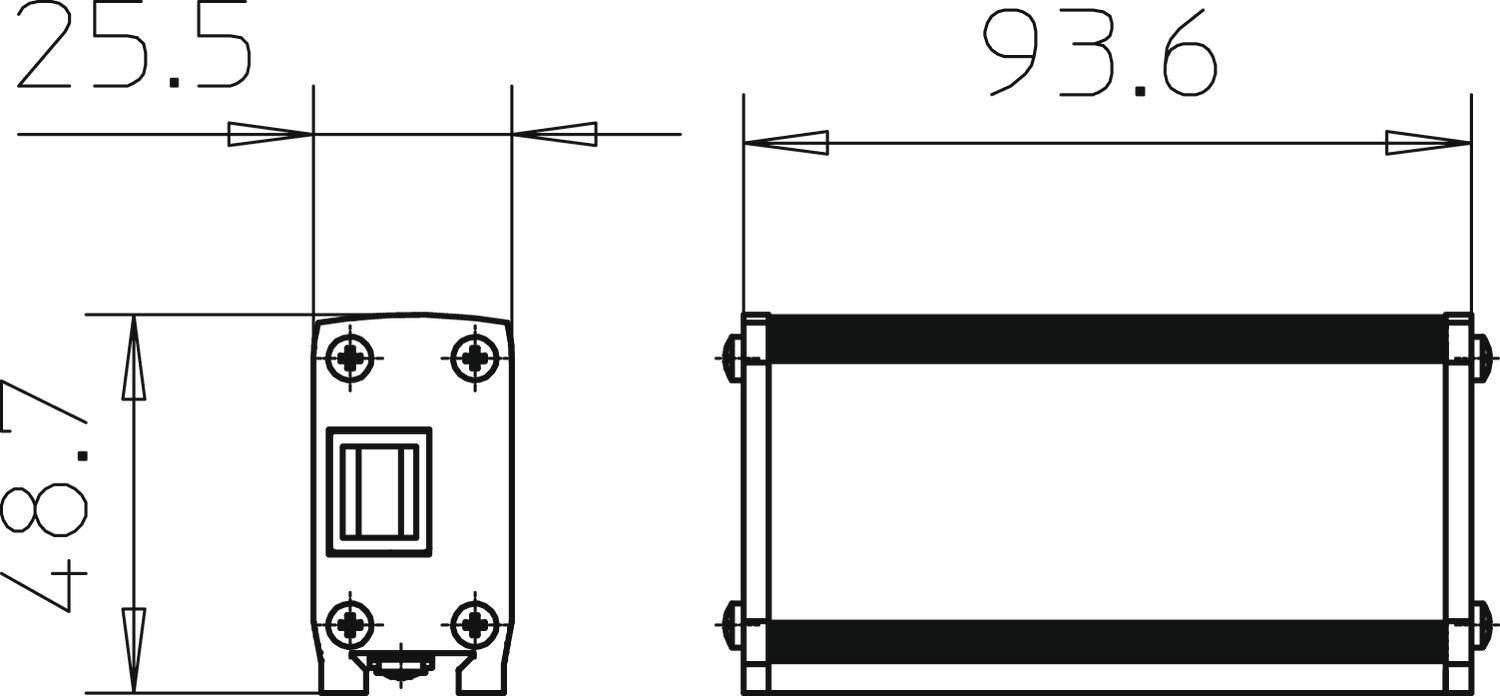

- Dim
(W x H x D) 93.6 x 48.7 x 25.5 mm
- Width
93.6 mm
- Height
48.7 mm
- Depth
25.5 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963215 OBO Bettermann 5081804 ND-CAT6/E-B Surge protection device 7 kA 1 pc(s)
Description
Data line protection devices for high-speed networks with high-quality RJ-45 jacks and low voltage protection level at high current load. Support of Power over Ethernet + up to 1 A. Approved transmission quality in networks up to 1 GBit (Class E) or CAT 6. Quick Installation by plug-in design. Application example: 1G Mbit Ethernet, 10/100 Mbit Ethernet, PoE-applications
