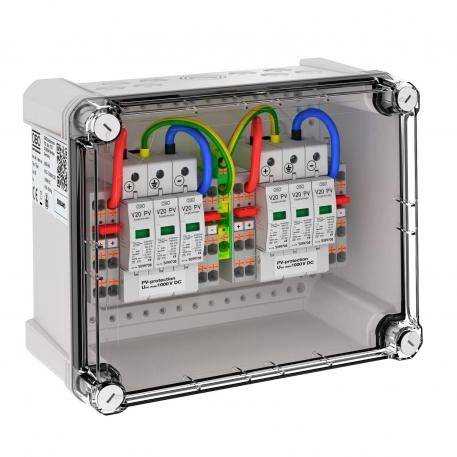

OBO Bettermann 5088445 5088445 Generator junction box
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 2
- Max. Voltage range DC 1000 V

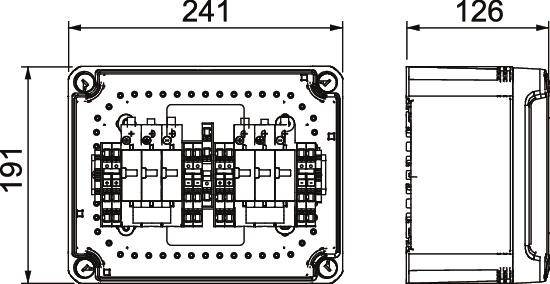

- Width 240 mm
- Height: 191 mm
- Depth: 125 mm
- String safeguard: Without
- Protection class (IP) IP66
- Impact strength: IK07
- Test class type 1: No.
- Test class type 2: Yes
- Test class type 3: No.
- Monitoring function: No.
- Operating temperature -25..65°C
- Max. output current 41 A
- Colour: grey
- Number of cable entries: 16
- Type of introduction: Screw connection
- Product type
Generator junction box
- Dim
(L x W x H) 400 cm x 240.00 mm x 191.00 mm
- Factory colour
Grey
- Content
1 pc(s)
- Width
240.00 mm
- Height
191.00 mm
- Depth
125.00 mm
- Length
400 cm
IP66
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162736 OBO Bettermann 5088445 5088445 Generator junction box
Description
Generator connection box type 2 for photovoltaic systems for the connection of 2 x 2 strings. For DC-protection of the inverter.
Varistor, pluggable, with separating device in error-resistant Y-circuit according to VDE 0100-712 (50539-12)
Low DC protection level: < 4.0 kV (Uoc max = 1000 VDC)
2 protective devices each with 5 clamping points up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
Polycarbonate housing (IP66), UV resistant for outdoor use, including cable fitting set and pressure compensation element
Additional measures may be required if there is a danger of condensation due to wind, ice, temperature or sun!
