OBO Bettermann 5088565 VG-BC900S11 Fittings 7 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pins = 3
- Lightning impulse current (10/350 μs) = 7 kA
- Max. PV-voltage = 900V
- Protection level=3 kV
- Max. Conductor cross-section (inflexible) (on/multi-wired) = 35 mm²
- Max. Conductor cross-section (flexible) (fine) = 25 mm²
- Mounting type = pre-mounted in the housing
- Size = other
- Remote signalling = No
- Signaling on the device = optical
- Test class = type 1 and 2
- Ausblasend = No
- Product type
Fittings
- Leakage current
7 kA
- Manufacturer part #
5088565
- Dim
(L x W) 400 cm x 300 mm
- Length
400 cm
- Width
300 mm
- Content
1 pc(s)
- Mounting type
Enclosure
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957771 OBO Bettermann 5088565 VG-BC900S11 Fittings 7 kA 1 pc(s)
Description

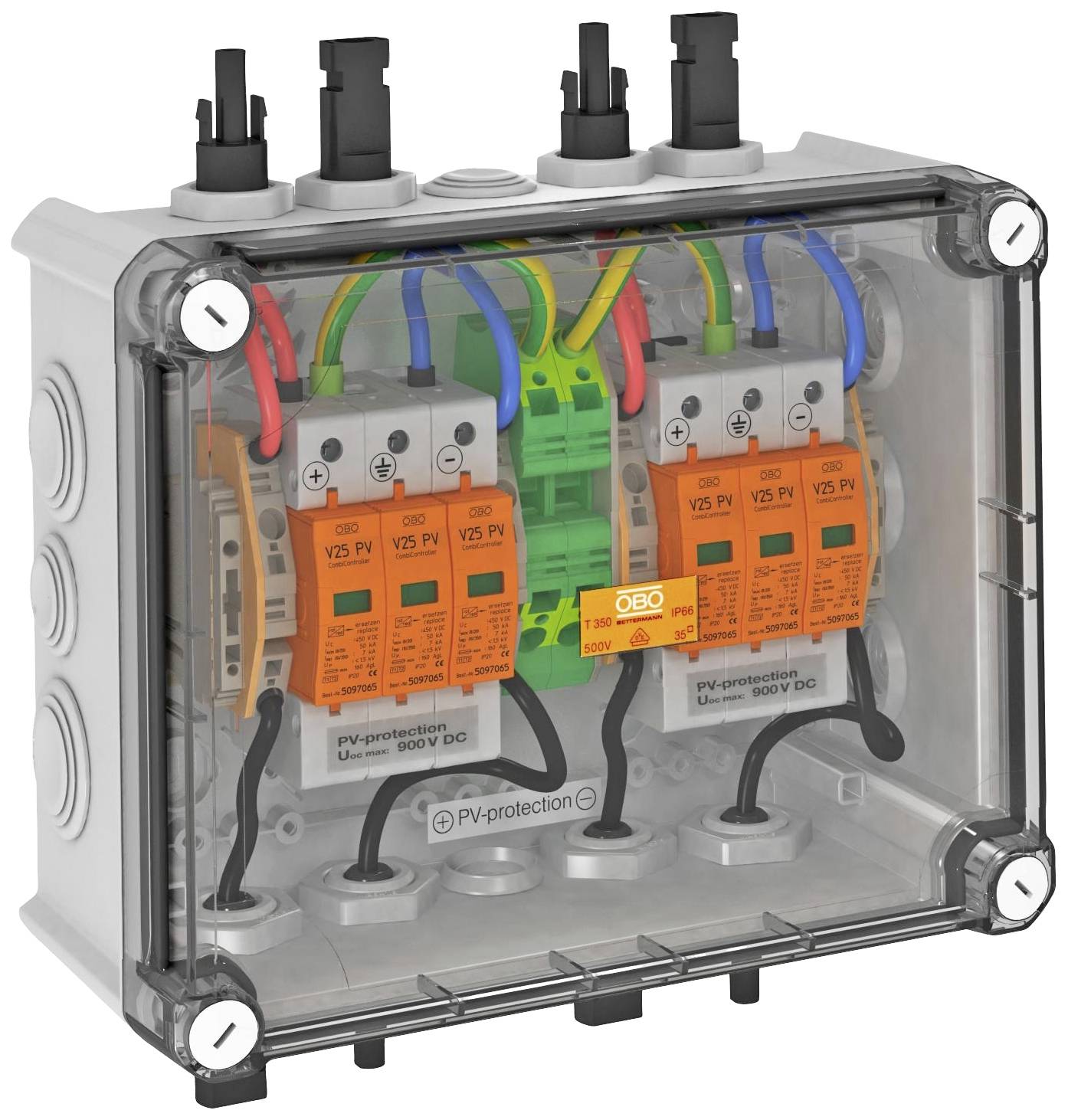

System solution with PV fuses for PV inverter with 2 MPP tracker. The built-in Combination arrester type 1+2 of the series V 25-B+C offer a high lightning current discharge capacity and surge protection for PV systems. For lightning protection potential compensation in accordance with DIN EN 62305 (VDE0185-305). Can be used in accordance with IEC 60364-7-712 (VDE 0100-712). The labelled protection devices and allows easy connection of the plus, minus and earth. With the error-resistant Y-Circuit is the use of up to 900 V DC (V25-B + C) is possible. The protective devices are on the maximum idle-run voltage Uoc of the system.
