OBO Bettermann 5091722 LSC I+II Surge protection module 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design: Evaluation Unit
- LAN connection: no
- Operation via web interface: no
- Supports protocol for MODBUS: no
- Number of sensors: 1
- Current measuring range: 1..100 kA
- Ambient temperature during operation: -20.:00-15 °C
- Product type
Surge protection module
- Operating temperature
-20 to +60 °C
IP65
- Manufacturer part #
5091722

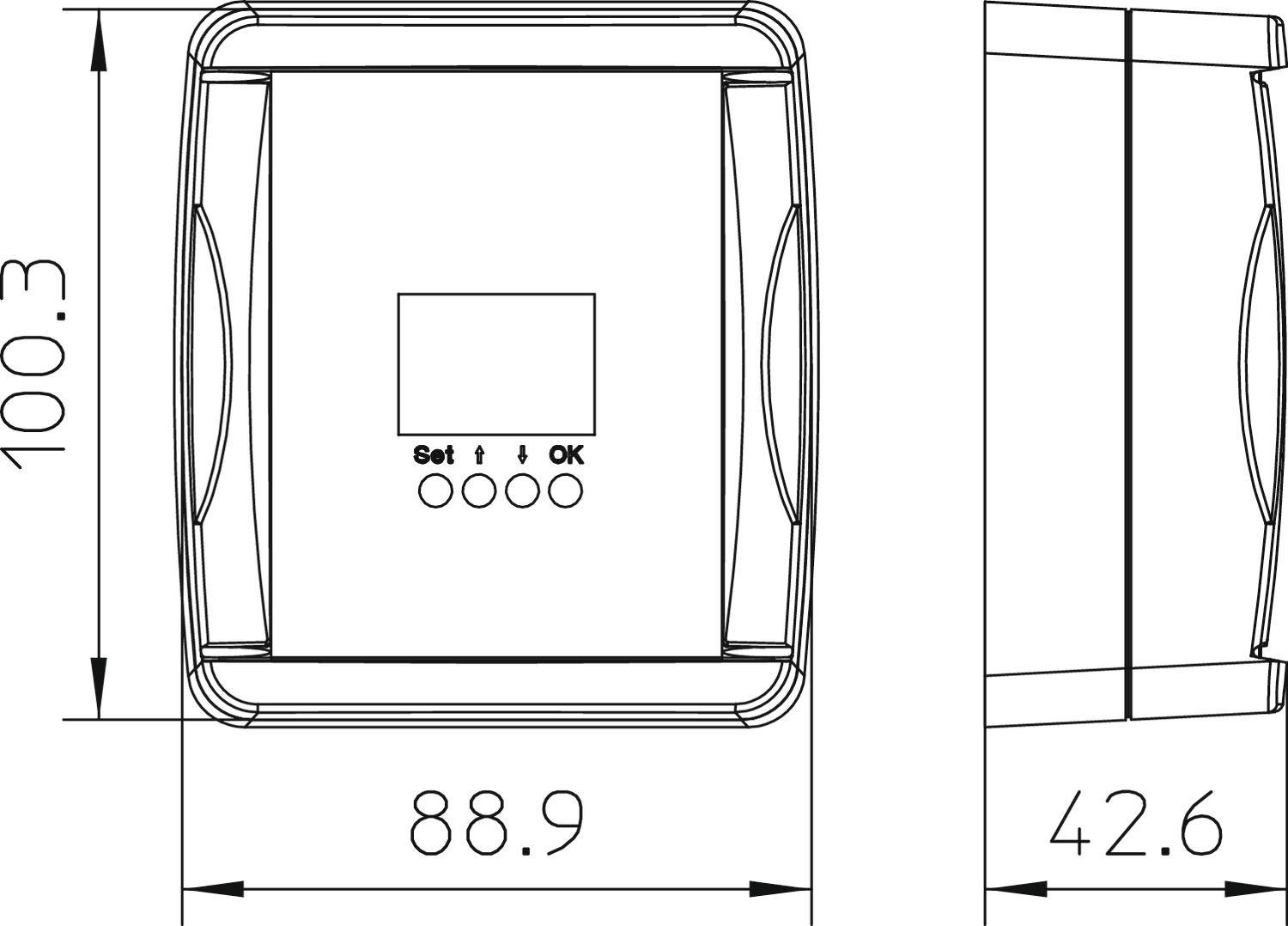

- Dim
(W x H x D) 88.9 x 100.3 x 42.6 mm
- Width
88.9 mm
- Height
100.3 mm
- Depth
42.6 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959167 OBO Bettermann 5091722 LSC I+II Surge protection module 1 pc(s)
Description

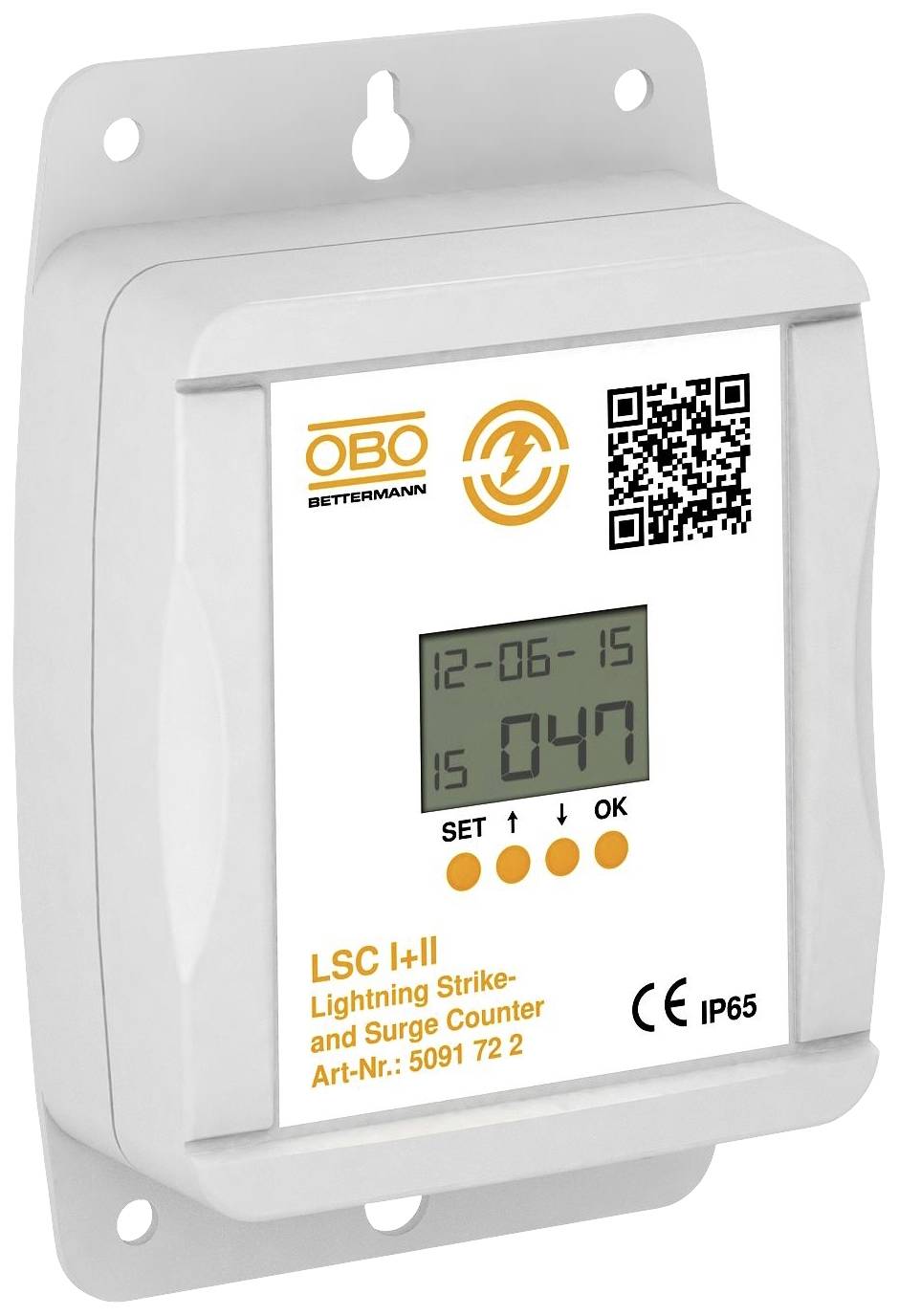

Lightning current counter LSC I + II with LCD display and internal battery with a long life. For recording and storing of impulse currents caused by lightning strikes. By the recording of date and time, it is particularly suited for testing and maintenance of lightning protection systems according to VDE 0185 IEC 62305-3-305-3 (). Due to the high protection class IP67, the lightning current meter be used indoors and outdoors. With the integrated cable clamp for round Leister or flat conductor, the lightning counter directly on the arrester or PE line of the surge protection device to be mounted.
This text is machine translated.
This text is machine translated.
