OBO Bettermann 5092431 ÜSM-20-230I1P+PE Surge protection device 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Protection level L-N: 1.3 kV
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection device
- Leakage current
10 kA
- Nominal voltage
230 V AC
- Operating temperature
-15 up to +60 °C
IP20
- Manufacturer part #
5092431
- Factory colour
Multicolour

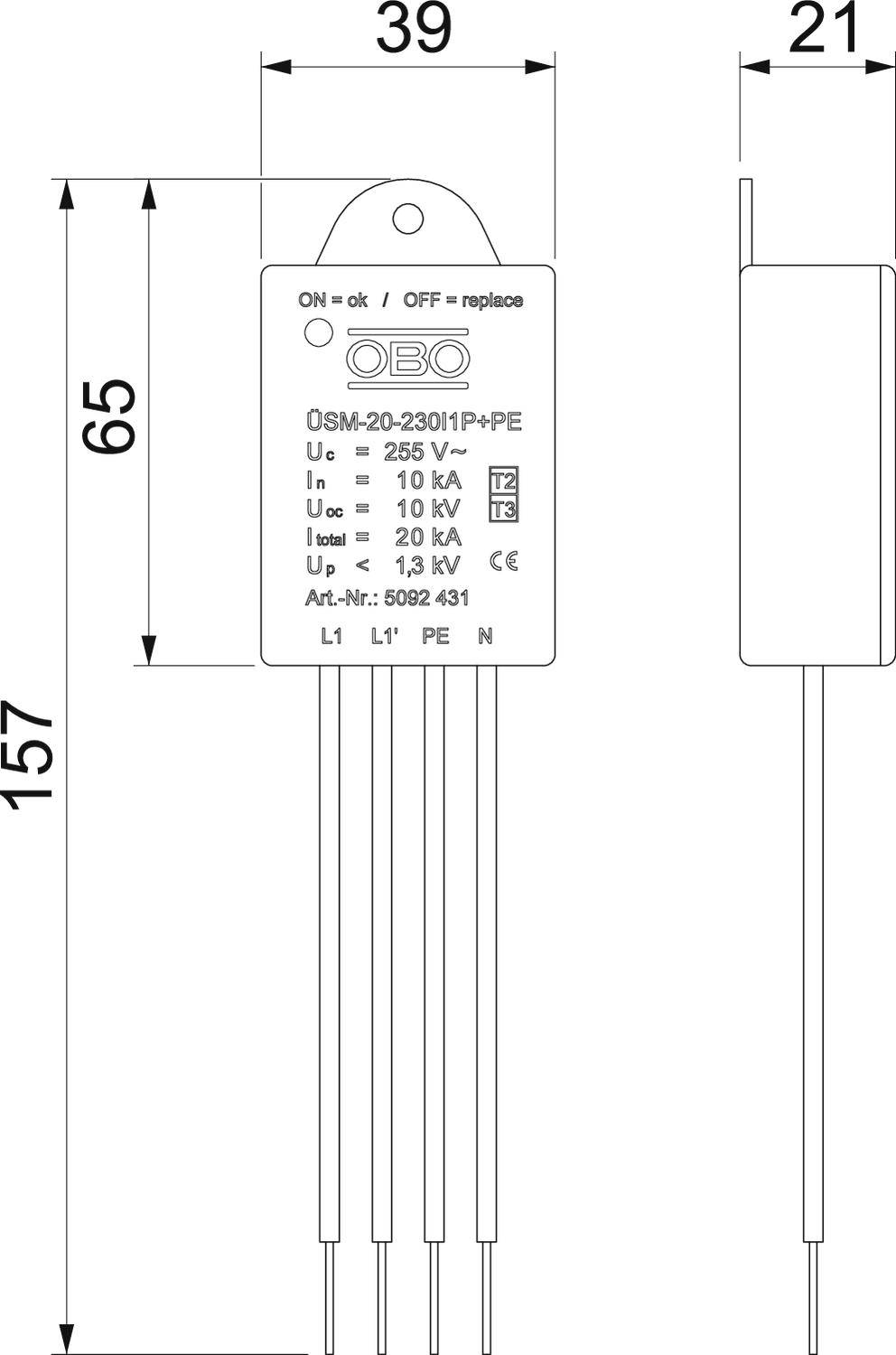

- Dim
(W x H x D) 39 x 65 x 21 mm
- Width
39 mm
- Height
65 mm
- Depth
21 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964570 OBO Bettermann 5092431 ÜSM-20-230I1P+PE Surge protection device 10 kA 1 pc(s)
Description
Surge protection module type 2+3 according to DIN EN 61643 for 230/400 V networks. Intended for the protection of LED lighting. - With function display and switch-off of the load circuit in the event of a failure of the SPD, small size for installation in the pole connection box or in front of the driver 1 + NPE protective circuit with a maximum of 20 kA discharge capacity-over voltage limit under 1300 V or 1000 V@ 5 kA - with or without cut-off of the lamp in the case of defective application: in the cable junction boxes, junction boxes, cable channel to underground systems
