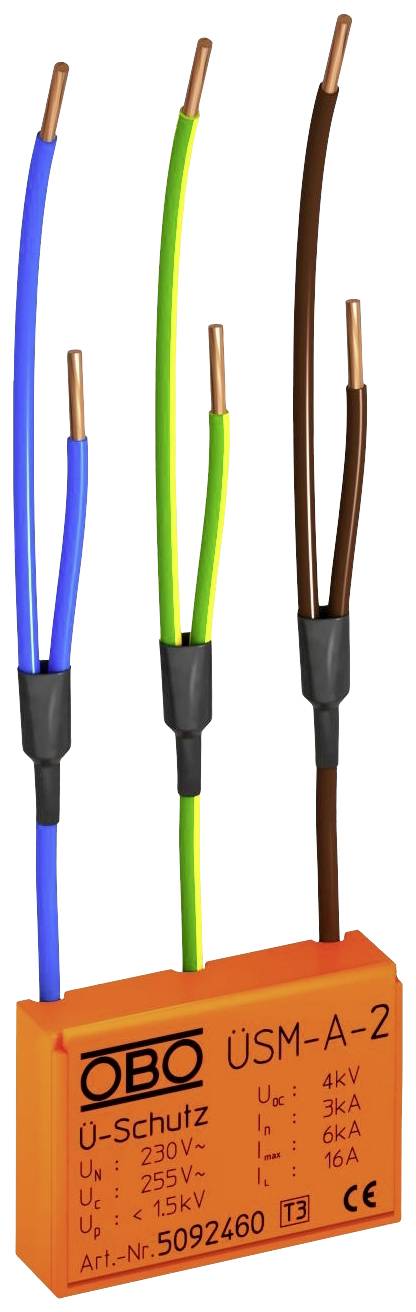

OBO Bettermann 5092460 ÜSM-A-2 Surge protection module 3 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Installation type: Other
- Size: other
- Protection level: 1.3 kV
- Protection level L-N: 1.3 kV
- Protection level N-PE: 1.5 kV
- Signaling on the device: acoustic
- Product type
Surge protection module
- Leakage current
3 kA
- Nominal voltage
230 V AC
- Operating temperature
-15 up to +60 °C
- Manufacturer part #
5092460
- Factory colour
Multicolour
- Dim

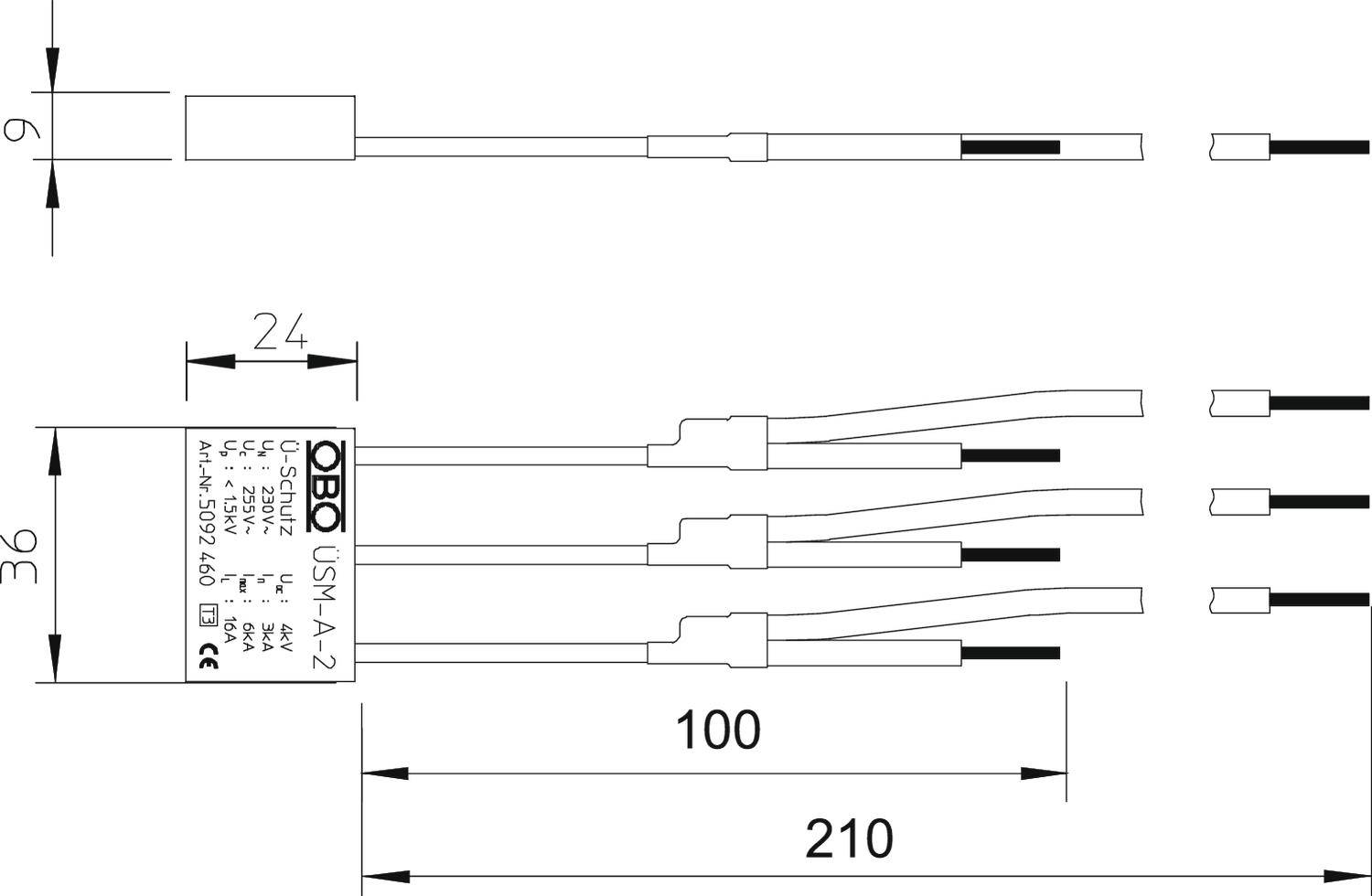

(W x H x D) 9 x 36 x 24 mm
- Width
9 mm
- Height
36 mm
- Depth
24 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963218 OBO Bettermann 5092460 ÜSM-A-2 Surge protection module 3 kA 1 pc(s)
Description
Surge protection module, fine protection device SPD according to EN 61643: Type 3 for 230 V networks, for use in sockets. Compact size for all installation systems, for use in flush-mounted, floor and cable channel systems. 2 strands for through-wiring. With acoustic defect notification.
