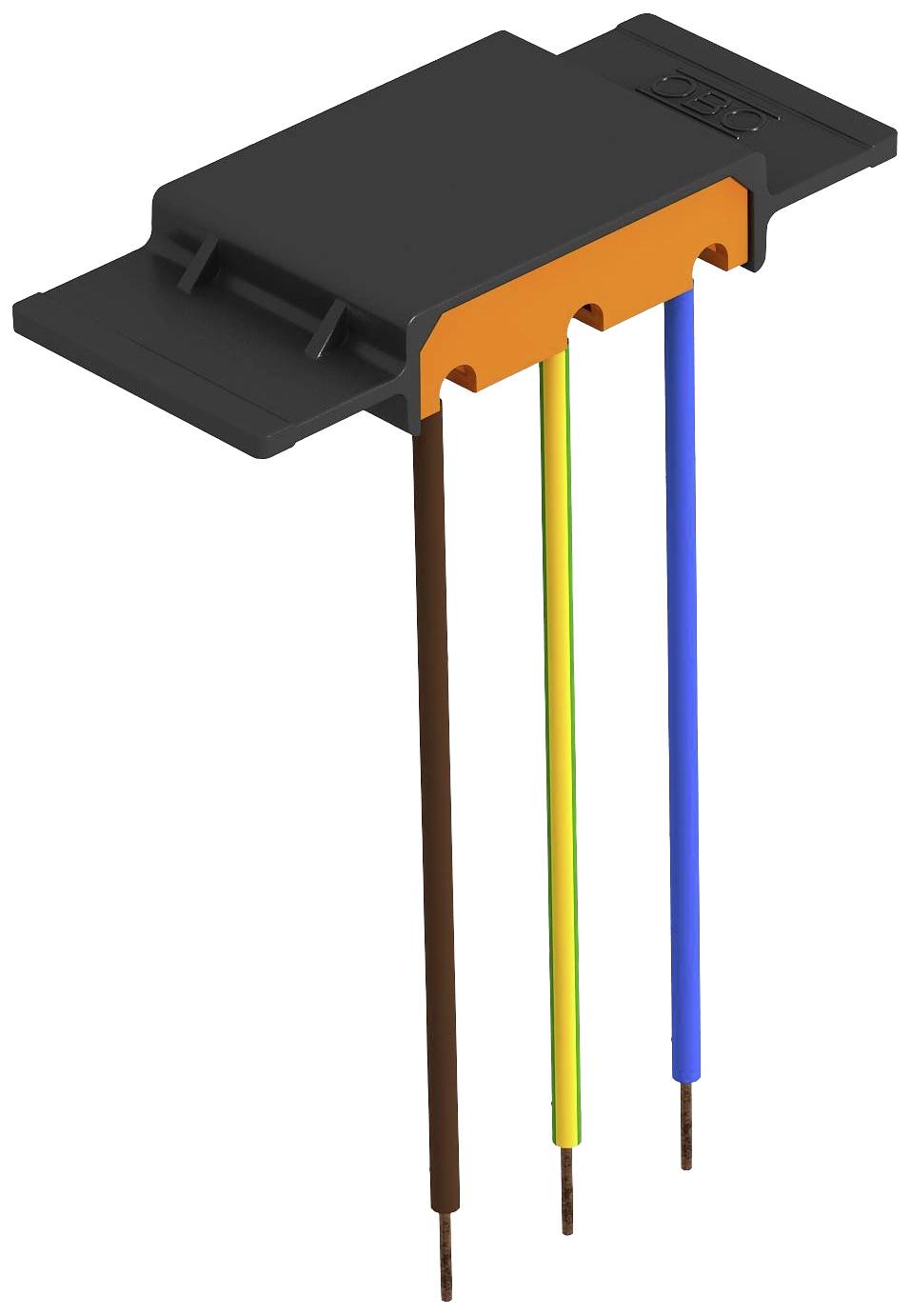

OBO Bettermann 5092472 ÜSM-A-4 Surge protection module 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal load current 16 A
- Number of pins: 3
- With remote signalling contact: no
- Signaling on the device: acoustic
- Test class type 3: yes
- With noise filter: no
- Product type
Surge protection module
- Surge protection for
Mains outlets
- Nominal voltage
230 V AC
- Type
Installation type: Module
- Operating temperature
-15 up to +60 °C
- Manufacturer part #
5092472

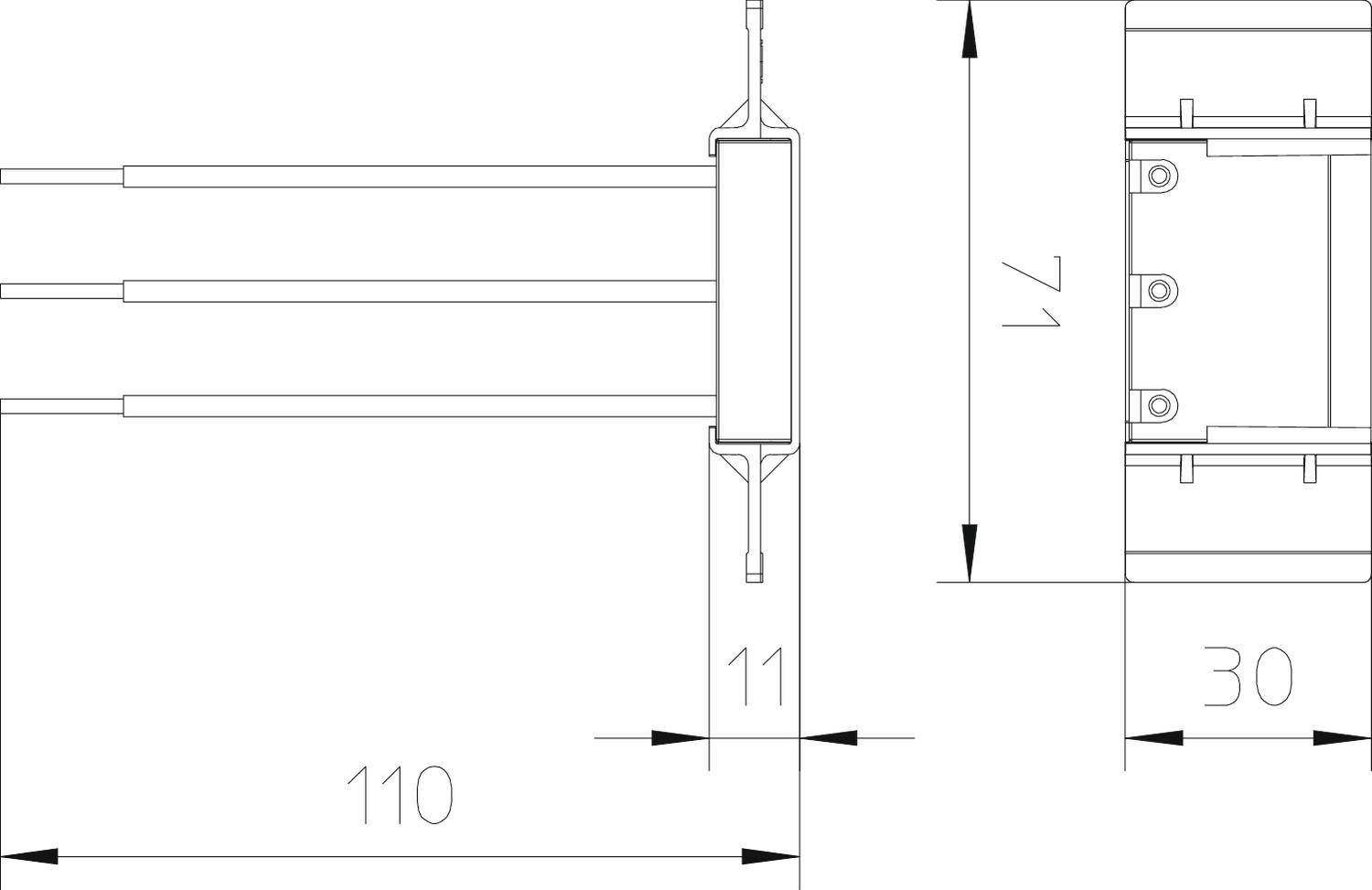

- Dim
(W x H x D) 30 x 71 x 11 mm
- Width
30 mm
- Height
71 mm
- Depth
11 mm
- Content
1 pc(s)
- Packaging type
Piece
- Mounting type
Module
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957795 OBO Bettermann 5092472 ÜSM-A-4 Surge protection module 1 pc(s)
Description
Surge protection module with acoustic defect display, no power cut-off, for the connection to a single or multiple socket. For installation in GB2 and GB3 device cups with beigestelltem of separation bar. The overvoltage protection module conforms to EN 61643, type 3, Class III, Request class D
