OBO Bettermann 5092482 ÜSM-LED 440 Surge protection module 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 440 V
- Installation type: Other
- Size: other
- Protection level: 1.8 kV
- Protection level L-N: 1.8 kV
- With remote signalling contact: no
- Integrated fusing: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection module
- Leakage current
10 kA
- Nominal voltage
440 V
- Operating temperature
-15 up to +60 °C
IP20
- Manufacturer part #
5092482

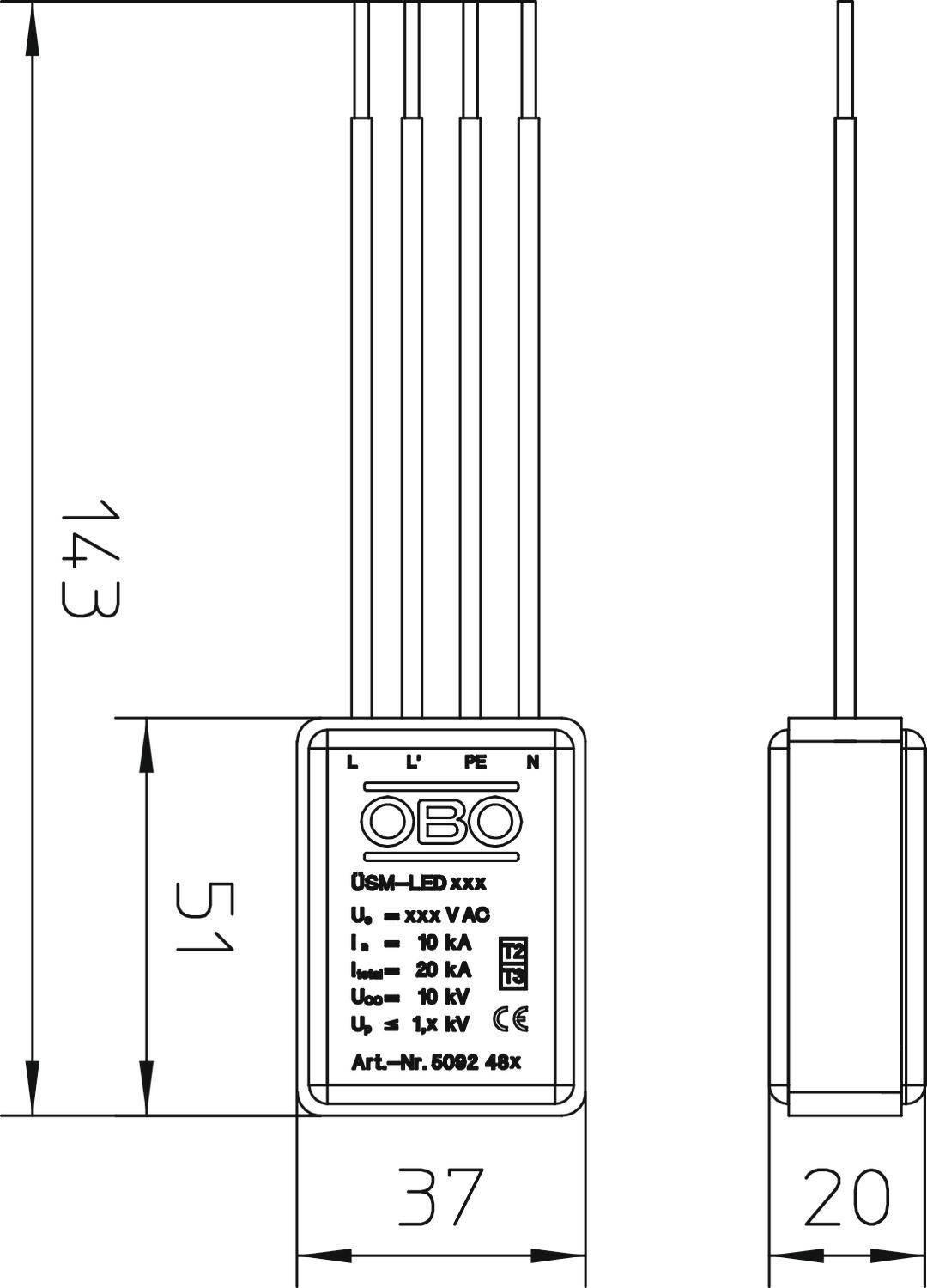

- Dim
(W x H x D) 37 x 51 x 20 mm
- Width
37 mm
- Height
51 mm
- Depth
20 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963237 OBO Bettermann 5092482 ÜSM-LED 440 Surge protection module 10 kA 1 pc(s)
Description
Surge protection module type 2+3 according to DIN EN 61643 for 440 V networks. Intended for the protection of LED lighting. - With visual function display - with a small size for installation in the tower or in the LED light head-1 + NPE protective circuit with a maximum of 20 kA discharge capacity-over voltage limit under 1800 V - with or without cut-off of the lamp in the case of defective application: can be used universally for all lighting systems
This text is machine translated.
This text is machine translated.
