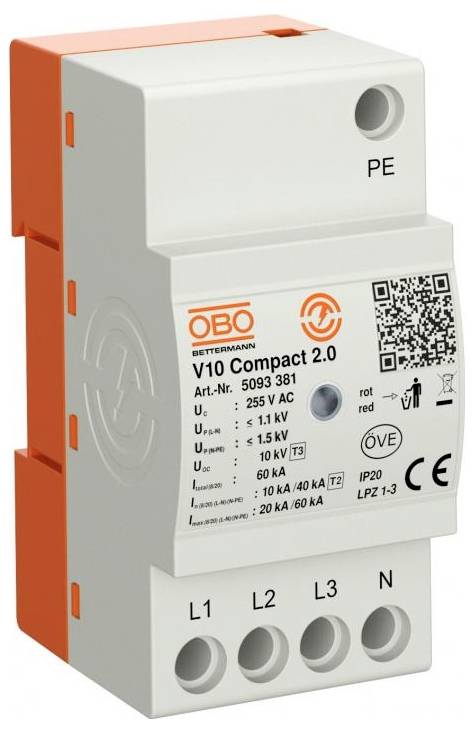

OBO Bettermann 5093381 5093381 Surge arrester 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Network type TN: Yes
- Mains type TN-C-S: Yes
- Network type TN-S: Yes
- Grid type TT: Yes
- Nominal surge current (8/20) 10 kA
- Max. Surge current (8/20) 20 kA
- Nominal voltage AC 230 V
- Highest continuous voltage AC 255 V
- Protection level L-N 1.1 kV
- Integrated fuse: No.
- Mounting type: Top hat rail TH35
- Design size: Other
- Max. Conductor cross-section rigid (single/multi-wired): 10 mm²
- Signalling at device: Optical
- Test class type 2: Yes
- Protection class (IP) IP20
- Product type
Surge arrester
- Surge protection for
Switchboards
IP20
- Manufacturer part #
5093381
- Factory colour
Multicolour
- Dim
(W x H x D) 92.0000 x 73.0000 x 68.0000 mm
- Width
92.0000 mm
- Height
73.0000 mm
- Depth
68.0000 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162028 OBO Bettermann 5093381 5093381 Surge arrester 1 pc(s)
Description
Overvoltage protection device compact module type 2+3
Overvoltage in main and sub-distribution in accordance with VDE 0100-443 (IEC 60364-4-44)
Total leakage capacity up to 60 kA (8/20)
Integrated 3+1 solution for TN and TT network systems with 45 mm module width
High-performance varistor technology
Incl. Thermal and dynamic separation device and optical function display
Application: Main and sub-distribution as well as device protection of three-phase systems.
This text is machine translated.
Overvoltage in main and sub-distribution in accordance with VDE 0100-443 (IEC 60364-4-44)
Total leakage capacity up to 60 kA (8/20)
Integrated 3+1 solution for TN and TT network systems with 45 mm module width
High-performance varistor technology
Incl. Thermal and dynamic separation device and optical function display
Application: Main and sub-distribution as well as device protection of three-phase systems.
