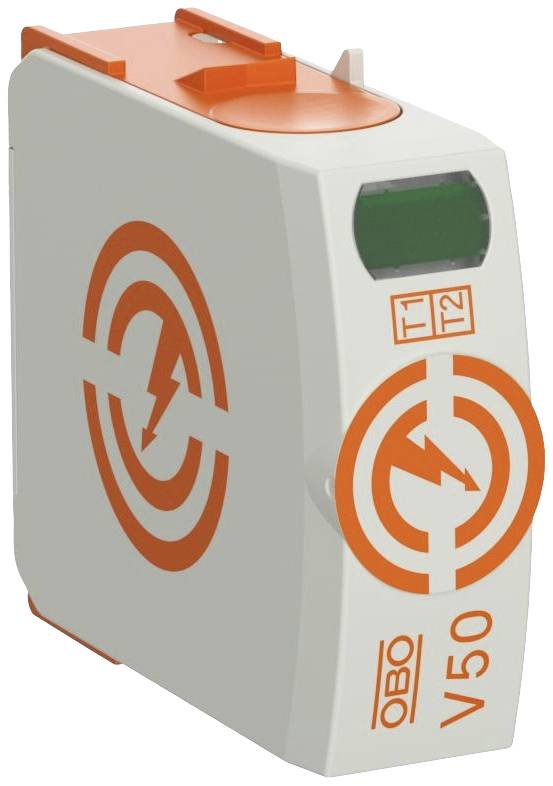

OBO Bettermann 5093508 V50-0-280 CombiController 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pins = 1
- Lightning impulse current (10/350 μs) = 12.5 kA
- The highest continuous voltage AC = 280 V
- Nominal voltage AC = 230V
- Protection level = 1.3 kV
- Protection level L-N= 1.3 kV
- Max. Conductor cross-section (inflexible) (on/multi-wired) = 35 mm²
- Max. Conductor cross-section (flexible) (fine) = 25 mm²
- Mounting type = TH 35 standard mounting rail
- Size = 1 TE
- Remote signalling = No
- Signaling on the device = optical
- Test class = type 1 and 2
- Ausblasend = No
- Product type
CombiController
- Leakage current
50 kA
- Nominal voltage
230 V
IP20
- Manufacturer part #
5093508
- Dim
(W x H x D) 58.0000 x 45.0000 x 17.5000 mm
- Width
58.0000 mm
- Height
45.0000 mm
- Depth
17.5000 mm
- Content
1 pc(s)
- Number of pins
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955092 OBO Bettermann 5093508 V50-0-280 CombiController 50 kA 1 pc(s)
Description
The top part of the V50 Flash Power Combination arrester halogen-free plastic and is suitable for a lightning protection potential compensation according to VDE 0185-305 (IEC 62305) and is intended to be used as a replacement part for the V50 Combi controller. A dynamic Disconnection device disconnects, as well as a visual status display features of the modular pluggable surge arrester. The Blitzstromabableitvermogen is 12.5 kA (10/350) per pin and up to 50 kA (10/350) total. The vibration-proof latching and the voltage as well as types encoding provides security and avoid confusion of upper and split. By the wedge-shaped design of the contacts is a easy insertion and even more simply remove the upper parts is possible. Via the QR code can be applied on the rating plate with the help of mobile devices quickly and easily connect additional technical product information.
