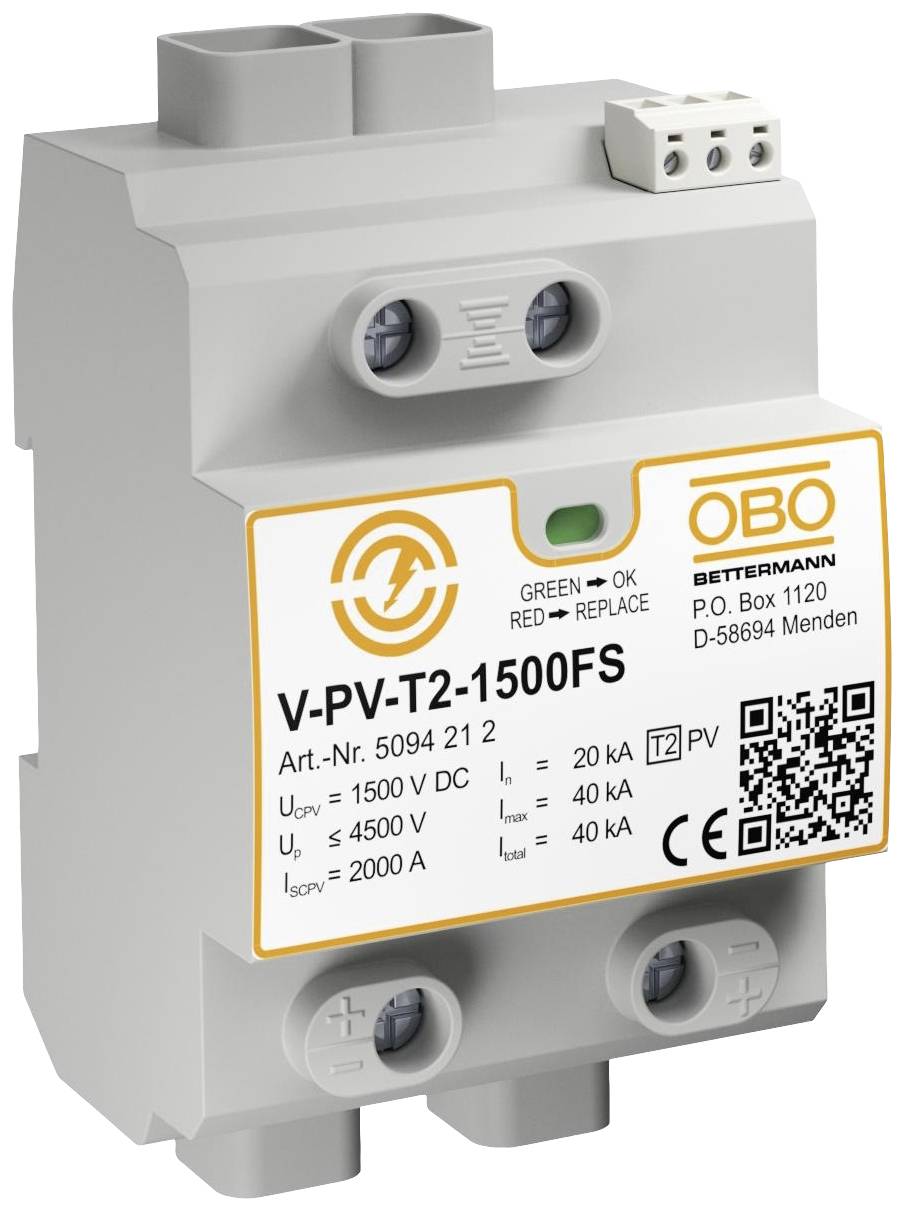

OBO Bettermann 5094212 V-PV-T2-1500+FS Surge arrester 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Size: 4 TE
- Max. PV-voltage: 1500 V
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
40 kA
- Type
Installation type: TH 35 standard mounting rail
IP20
- Manufacturer part #
5094212

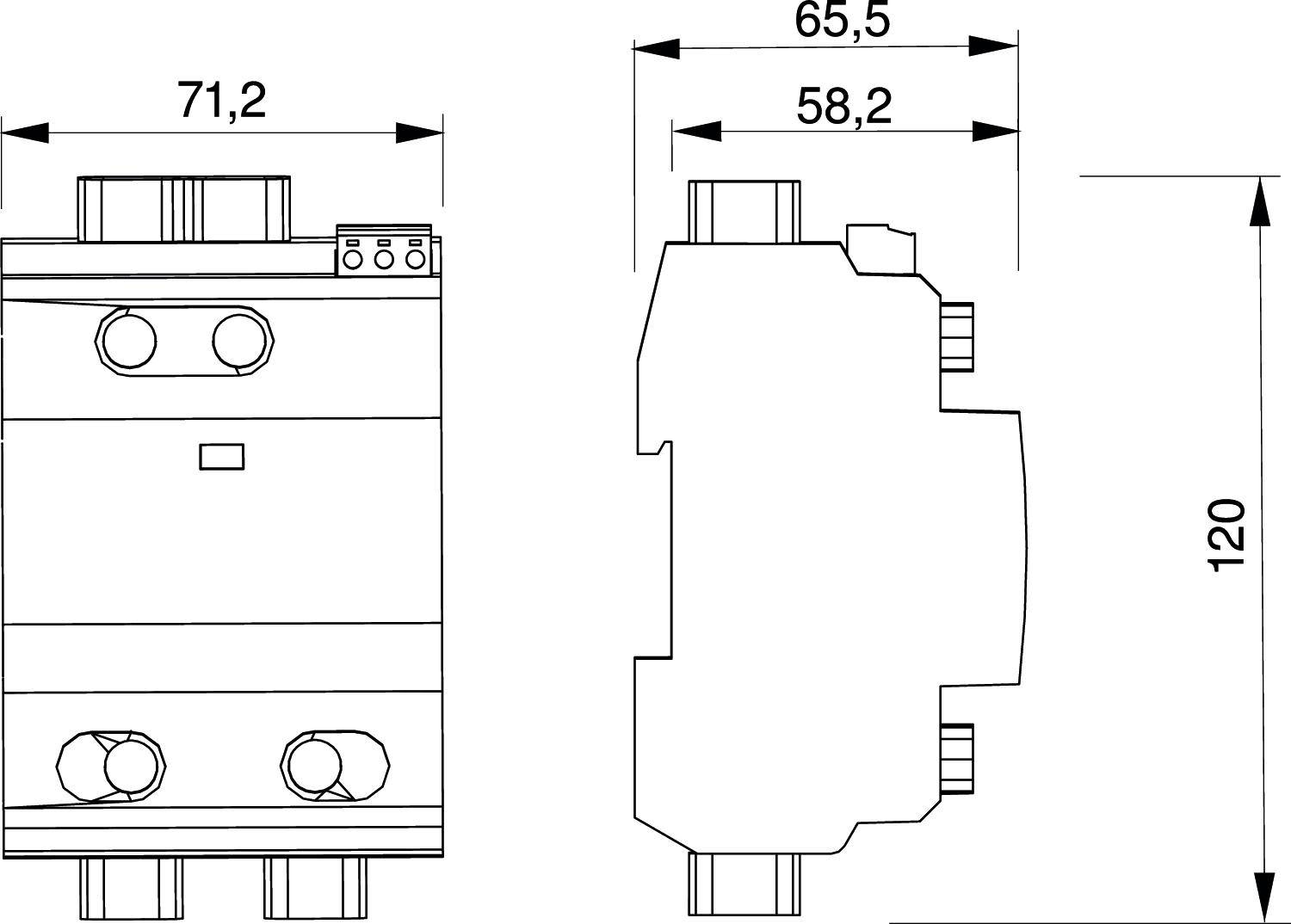

- Dim
(W x H x D) 71.2 x 120 x 65.5 mm
- Width
71.2 mm
- Height
120 mm
- Depth
65.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960491 OBO Bettermann 5094212 V-PV-T2-1500+FS Surge arrester 40 kA 1 pc(s)
Description
Type 2 surge protection for PV systems. Surge protection according to IEC 60364-7-712 (VDE 0100-712) - discharge capacity of 20 kA per pin and up to 40 kA (8/20)-error-resistant Y-circuit with status display - the FS version has a potential-free changeover contact for remote signalling application: surge protection devices for PV systems.
