OBO Bettermann 5094230 V-PV-T1+2-1000 Surge protection device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Installation type: TH 35 standard mounting rail
- Size: 4 TE
- Test class: Type 1 and 2
- Max. PV-voltage: 1000 V
- Signaling on the device: optical
- Product type
Surge protection device
- Surge protection for
PV systems
- Leakage current
40 kA
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5094230

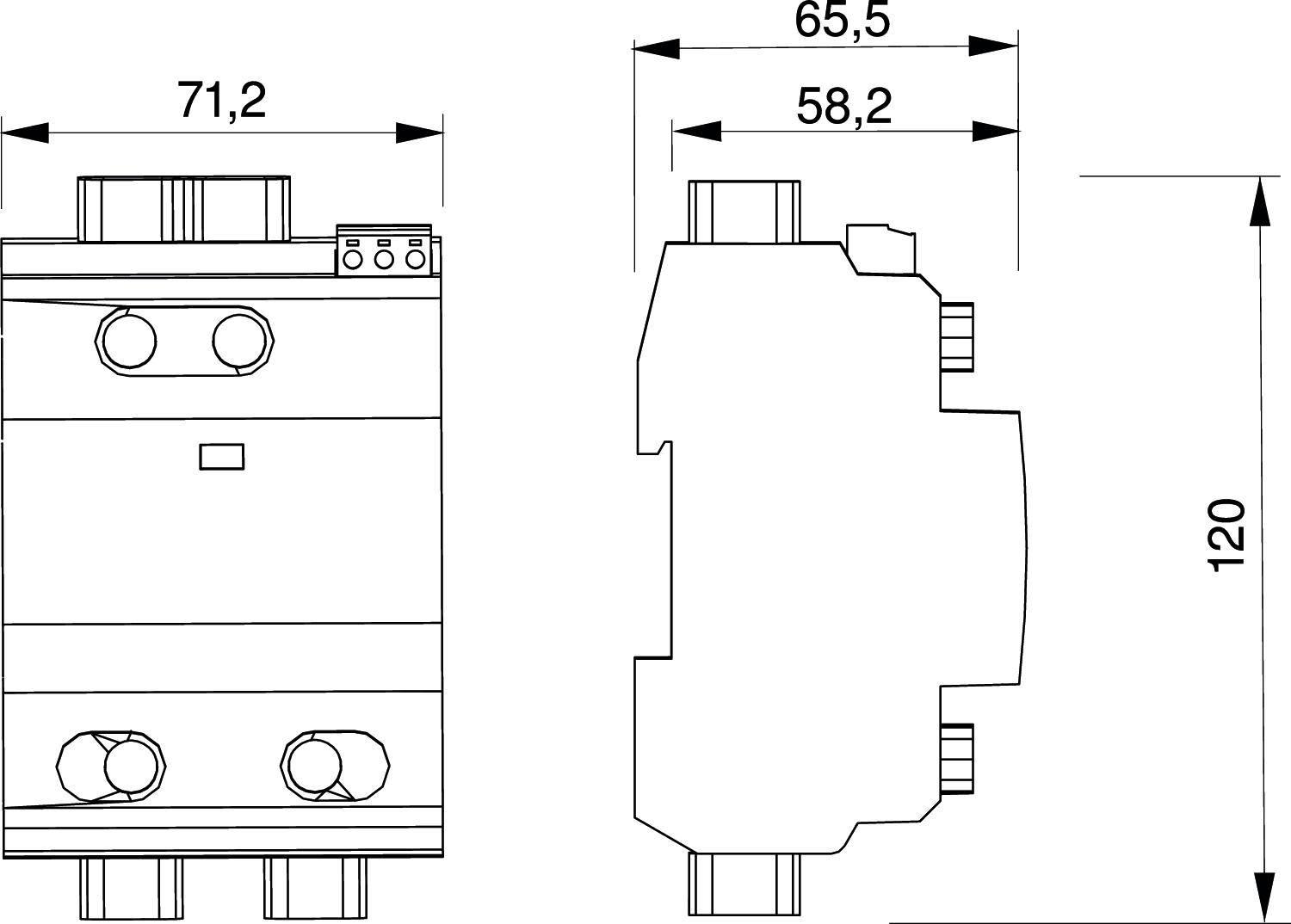

- Dim
(W x H x D) 71.2 x 120 x 65.5 mm
- Width
71.2 mm
- Height
120 mm
- Depth
65.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965914 OBO Bettermann 5094230 V-PV-T1+2-1000 Surge protection device 1 pc(s)
Description
Type 1+2 Combination arrester according to EN 50539-11 for lightning and surge protection for PV systems. Lightning protection potential compensation in accordance with IEC 62305 (VDE 0185-305) surge protection according to IEC 60364-7-712 (VDE 0100-712) - discharge capacity up to 12.5 kA (10/350) and 40 kA (8/20)-error-resistant Y-circuit with status display - the FS version has a potential-free changeover contact for remote signalling application: lightning current and surge protection devices for PV systems.
