OBO Bettermann 5094574 V20-C 3PHFS-1000 Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage DC: 1000 V
- Size: 4 TE
- Max. PV-voltage: 1000 V
- Protection level: 4 kV
- With remote signalling contact: yes
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
20 kA
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5094574

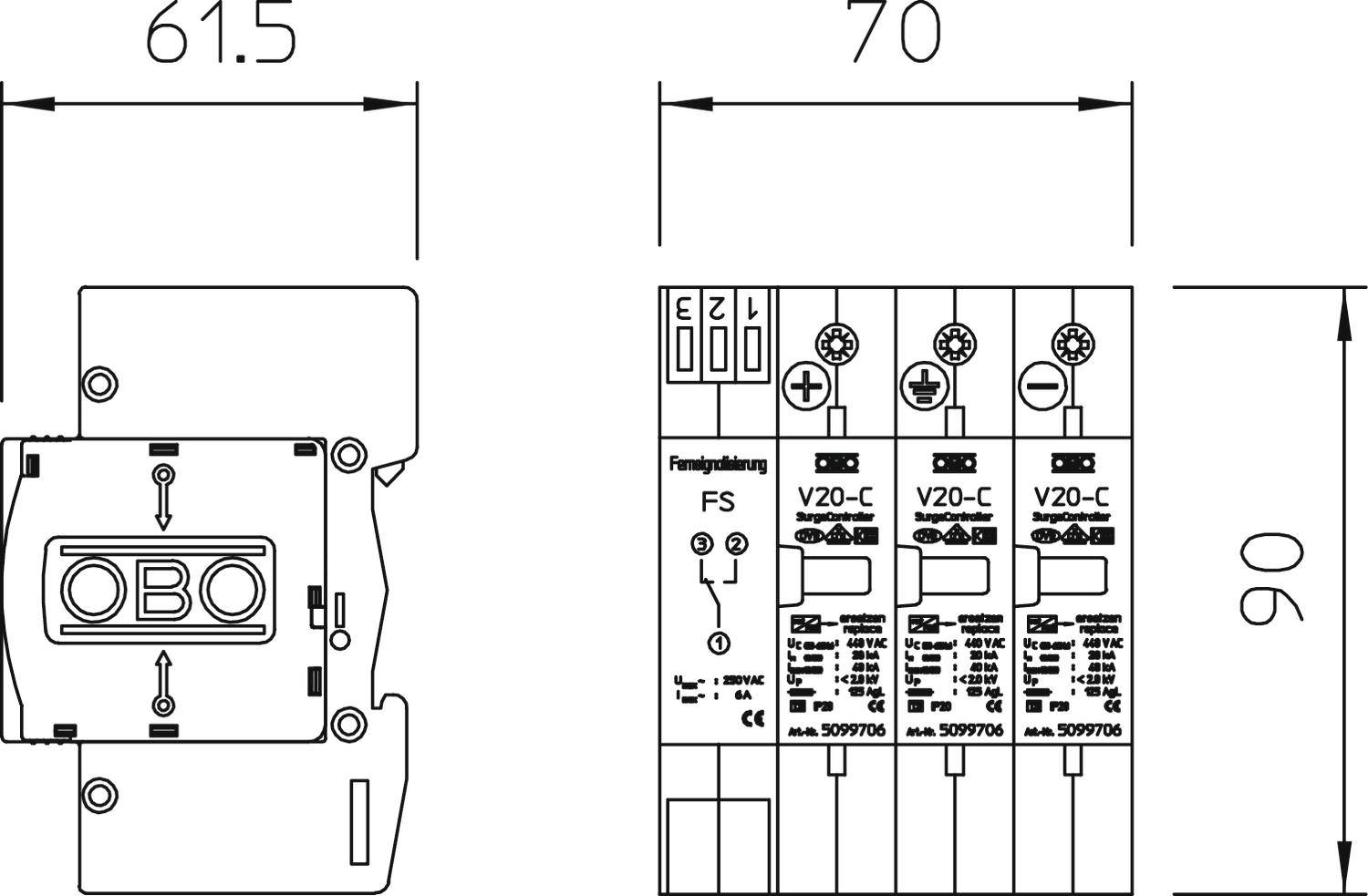

- Dim
(W x H x D) 70 x 90 x 61.5 mm
- Width
70 mm
- Height
90 mm
- Depth
61.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957798 OBO Bettermann 5094574 V20-C 3PHFS-1000 Surge arrester 20 kA 1 pc(s)
Description
Surge suppressor type 2 for photovoltaic systems. Error-resistant Y-circuit for use (IEC 60364-7-712 according to VDE 0100-712). Surge protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). Discharge capacity up to 40 kA (8/20) per pin and low DC protection level:< 4.0 kV (uoc max = 1000 V DC). Surge arrester can be plugged with thermo-dynamic Disconnection device disconnects and visual function display. Encapsulated zinc oxide varistor-arrester for use in distributor housings. Application: PV systems with or without separate insulated lightning protection system.
