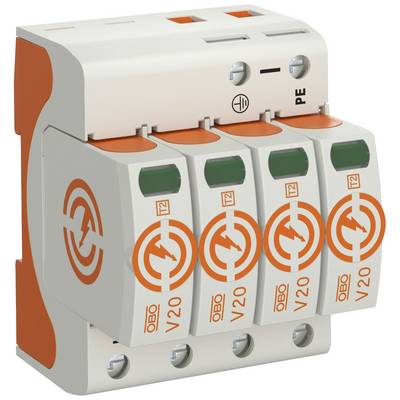

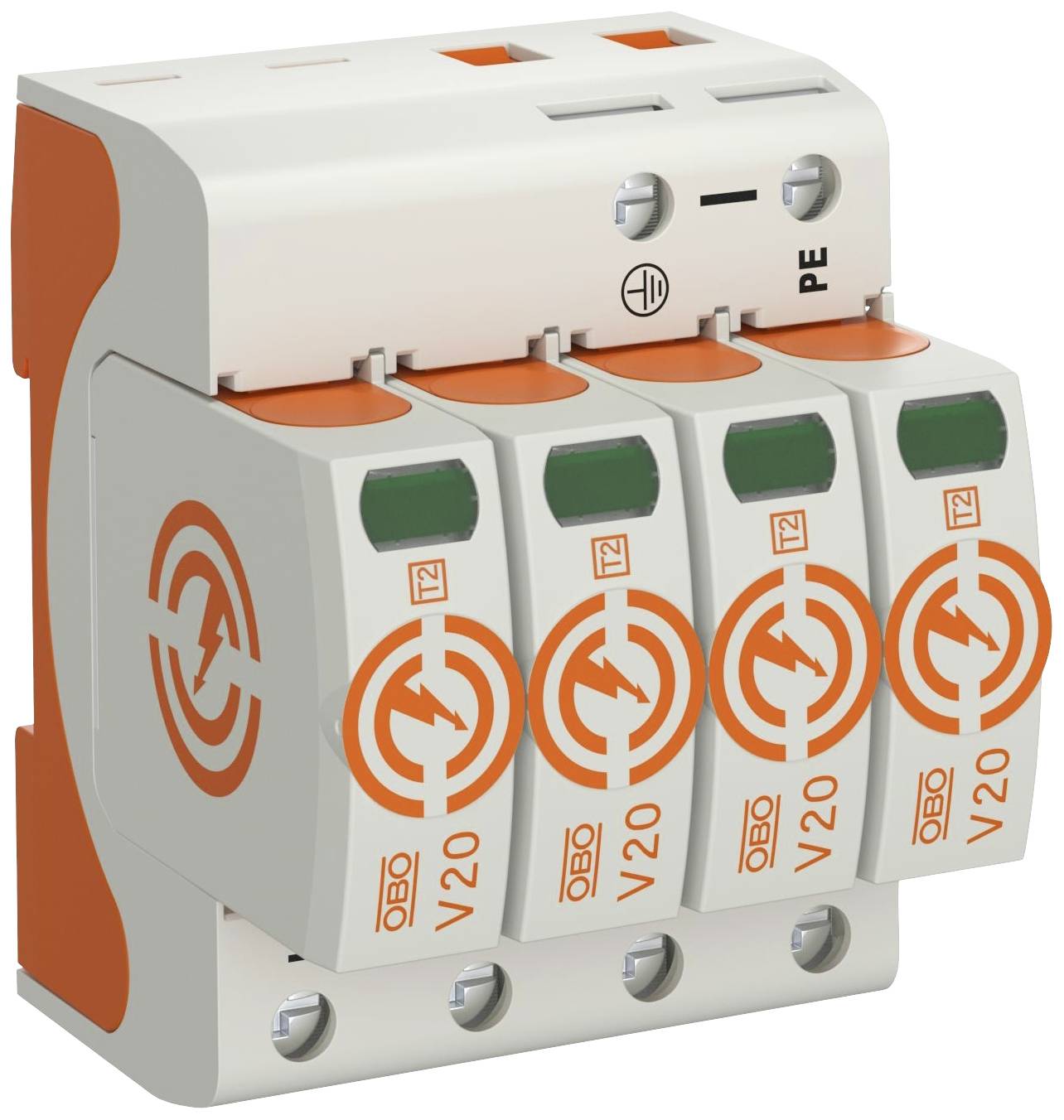

OBO Bettermann 5095164 V20-4-280 Surge protection device 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 280 V
- Protection level: 1.3 kV
- Max. Conductor cross-section (inflexible) (on/multi-wired): 35mm²
- Max. Conductor cross-section (flexible) (fine): 25 mm²
- Protection level L-N: 1.3 kV
- With remote signalling contact: no
- Integrated fusing: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge protection device
- Leakage current
20 kA
- Nominal voltage
230 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5095164

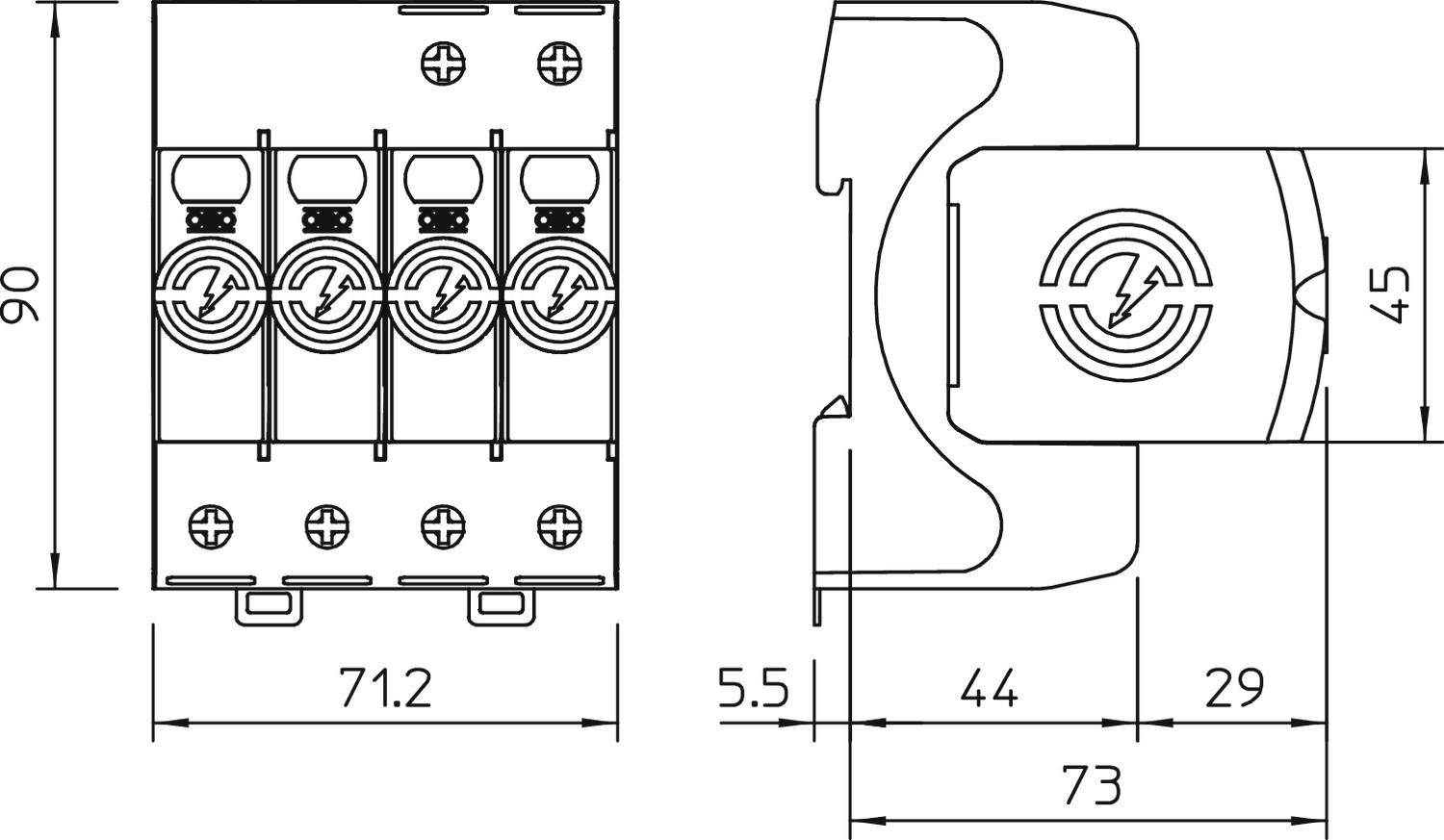

- Dim
(W x H x D) 71.2 x 90 x 78.5 mm
- Width
71.2 mm
- Height
90 mm
- Depth
78.5 mm
- Content
1 pc(s)
- Weight
0.47
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965925 OBO Bettermann 5095164 V20-4-280 Surge protection device 20 kA 1 pc(s)
Description
The V20 surge suppressor halogen-free plastic and is suitable for a surge protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). A dynamic Disconnection device disconnects and visual status display features of the modular pluggable surge arrester. The Surge controller is particularly suitable for the equipotential bonding in the main and sub-distributors, depending on the type in the range of TN-networks. Thanks to the high-performance varistors, the discharge capacity up to 40 kA (8/20) per pole. The vibration-proof latching and the voltage as well as types encoding provides security and avoid confusion of upper and split. By the wedge-shaped design of the contacts is a easy insertion and even more simply remove the upper parts is possible. Via the QR code can be applied on the rating plate with the help of mobile devices quickly and easily connect additional technical product information.
