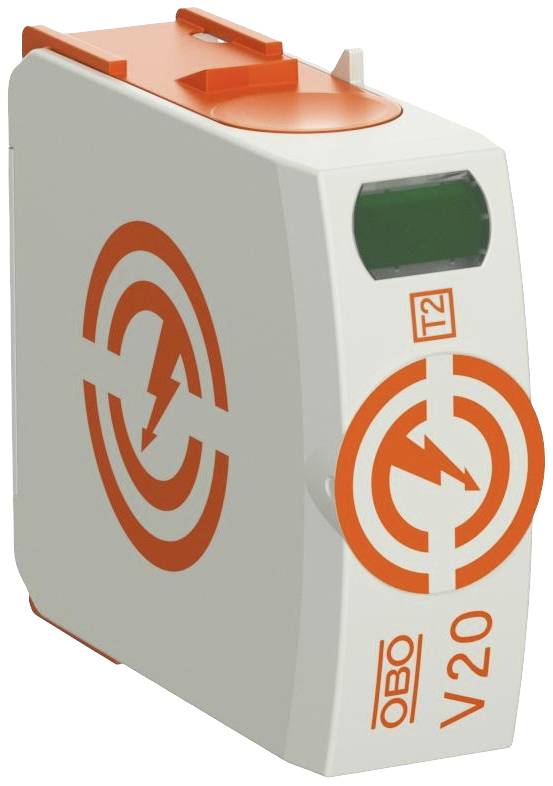

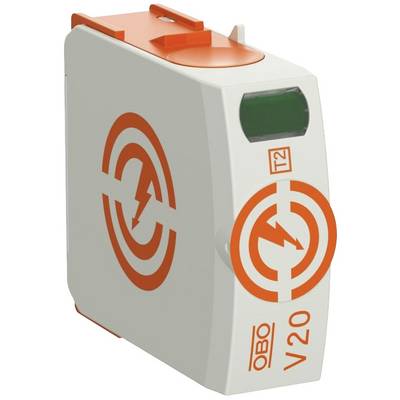

OBO Bettermann 5095370 V20-0-440 Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 440 V
- Size: 1 TE
- Protection level: 2 kV
- Max. Conductor cross-section (inflexible) (on/multi-wired): 35mm²
- Max. Conductor cross-section (flexible) (fine): 25 mm²
- Protection level L-N: 2 kV
- Integrated fusing: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
440 V
- Type
Installation type: TH 35 standard mounting rail
IP20
- Manufacturer part #
5095370

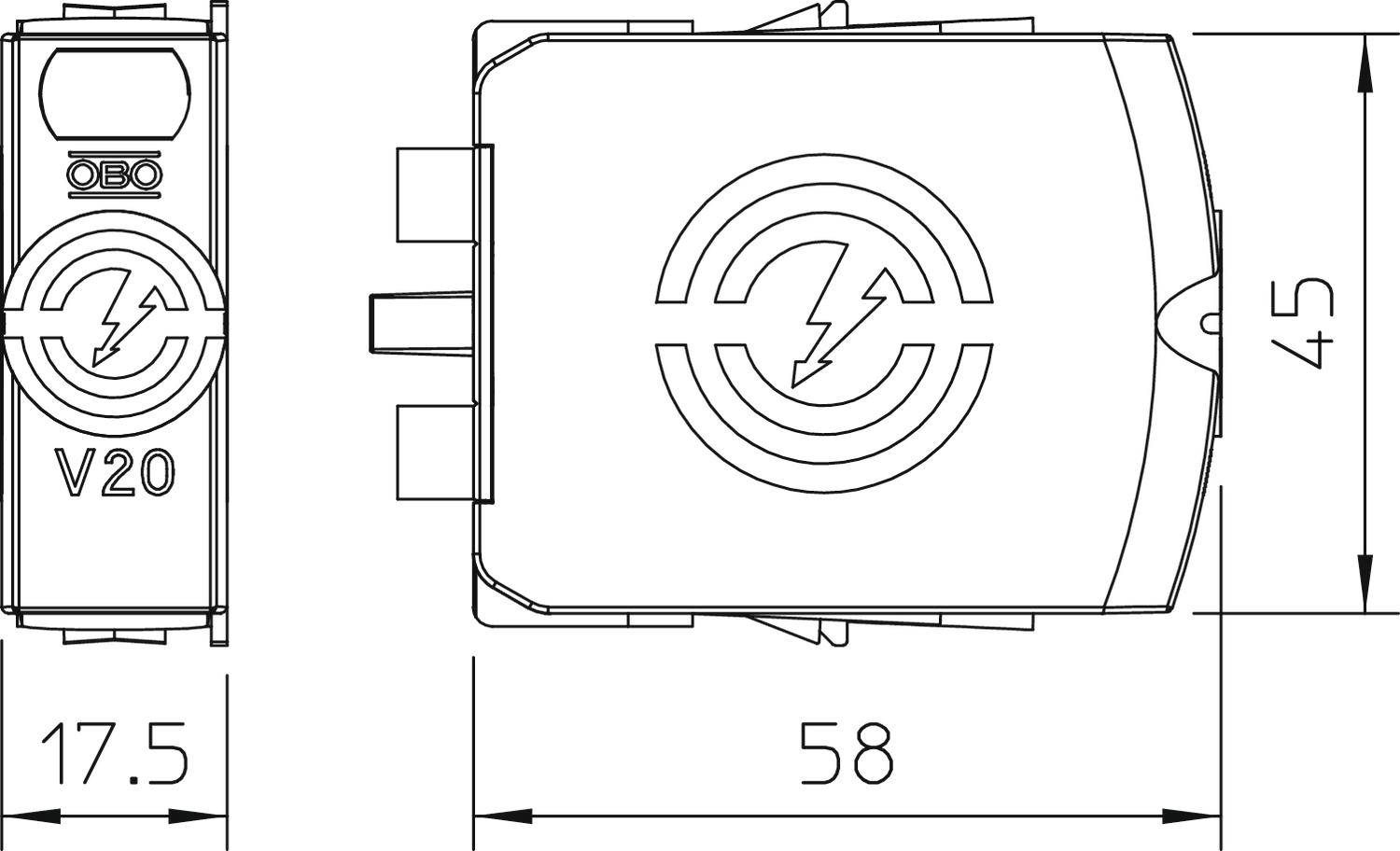

- Dim
(W x H x D) 17.5 x 45 x 58 mm
- Width
17.5 mm
- Height
45 mm
- Depth
58 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956431 OBO Bettermann 5095370 V20-0-440 Surge arrester 20 kA 1 pc(s)
Description
The top part of the V20 surge arrester halogen-free plastic and is suitable for a surge protection potential compensation (IEC 60364-4-44 according to VDE 0100-443) and is used as a spare part for the V20 surge controller. A dynamic Disconnection device disconnects, as well as a visual status display features of the modular pluggable surge arrester. Thanks to the high-performance varistors, the discharge capacity up to 40 kA (8/20) per pole. The vibration-proof latching and the voltage as well as types encoding provides security and avoid confusion of upper and split. By the wedge-shaped design of the contacts is a easy insertion and even more simply remove the upper parts is possible. Via the QR code can be applied on the rating plate with the help of mobile devices quickly and easily connect additional technical product information.
