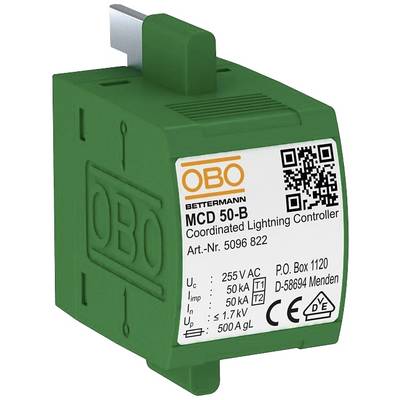

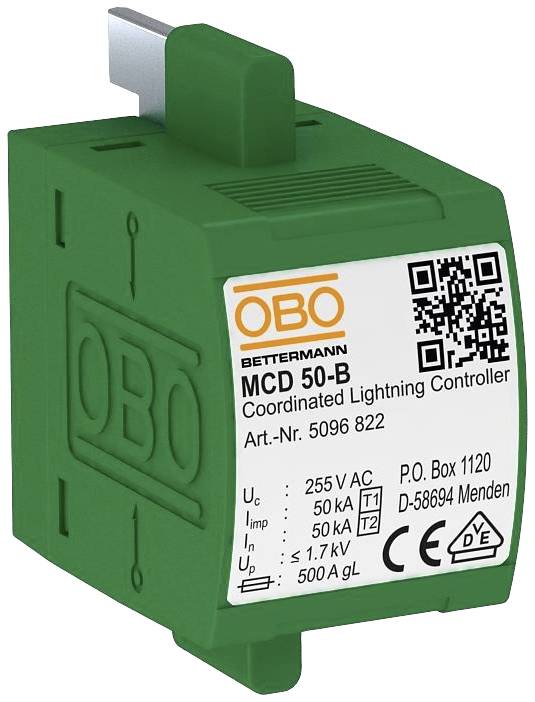

OBO Bettermann 5096822 MCD 50-B 0 Surge arrester 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Follow current extinguishing capability: 12.5 kA
- Size: 2 TE
- With remote signalling contact: no
- Signaling on the device: without
- Test class type 1: yes
- Product type
Surge arrester
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Type
Installation type: on the basis of element
- Manufacturer part #
5096822

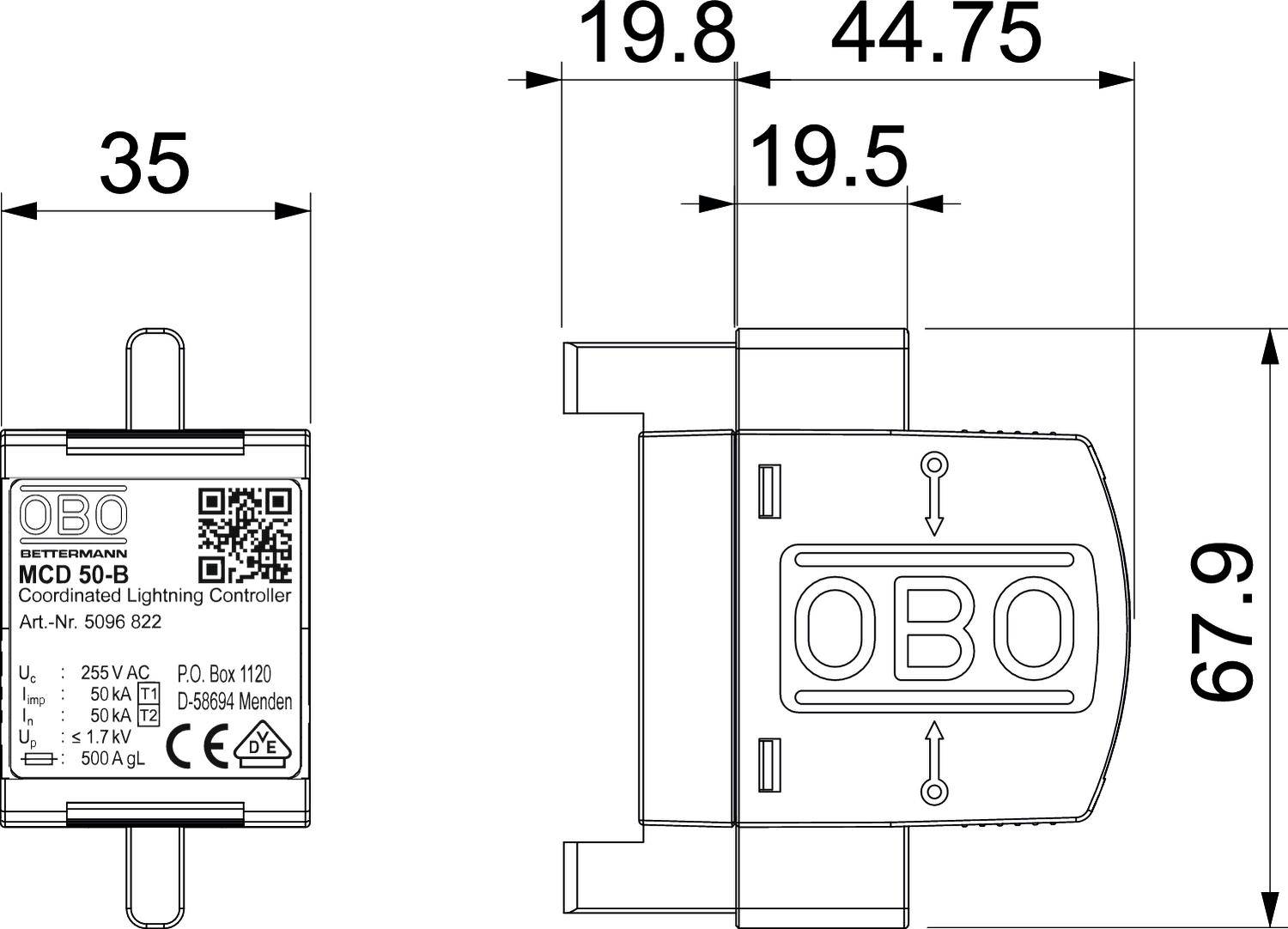

- Dim
(W x H x D) 35 x 67.9 x 64.55 mm
- Width
35 mm
- Height
67.9 mm
- Depth
64.55 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964586 OBO Bettermann 5096822 MCD 50-B 0 Surge arrester 50 kA 1 pc(s)
Description
Upper section: Combination / lightning conductor type 1 (class B) according to EN 61643-11. Top, complies with VDN policy 2. Edition 2004, leakage capacity 50 kA 10/350µs per pole, protection level< 1.3 kV, line sequence current extinguishing 25 kA peak max. required pre-fuse 500 A, LPZ 0-2. Encapsulated, non-blowing spark gap. No distance (cable length) to downstream type 2 conductors (overvoltage protection) is necessary.
