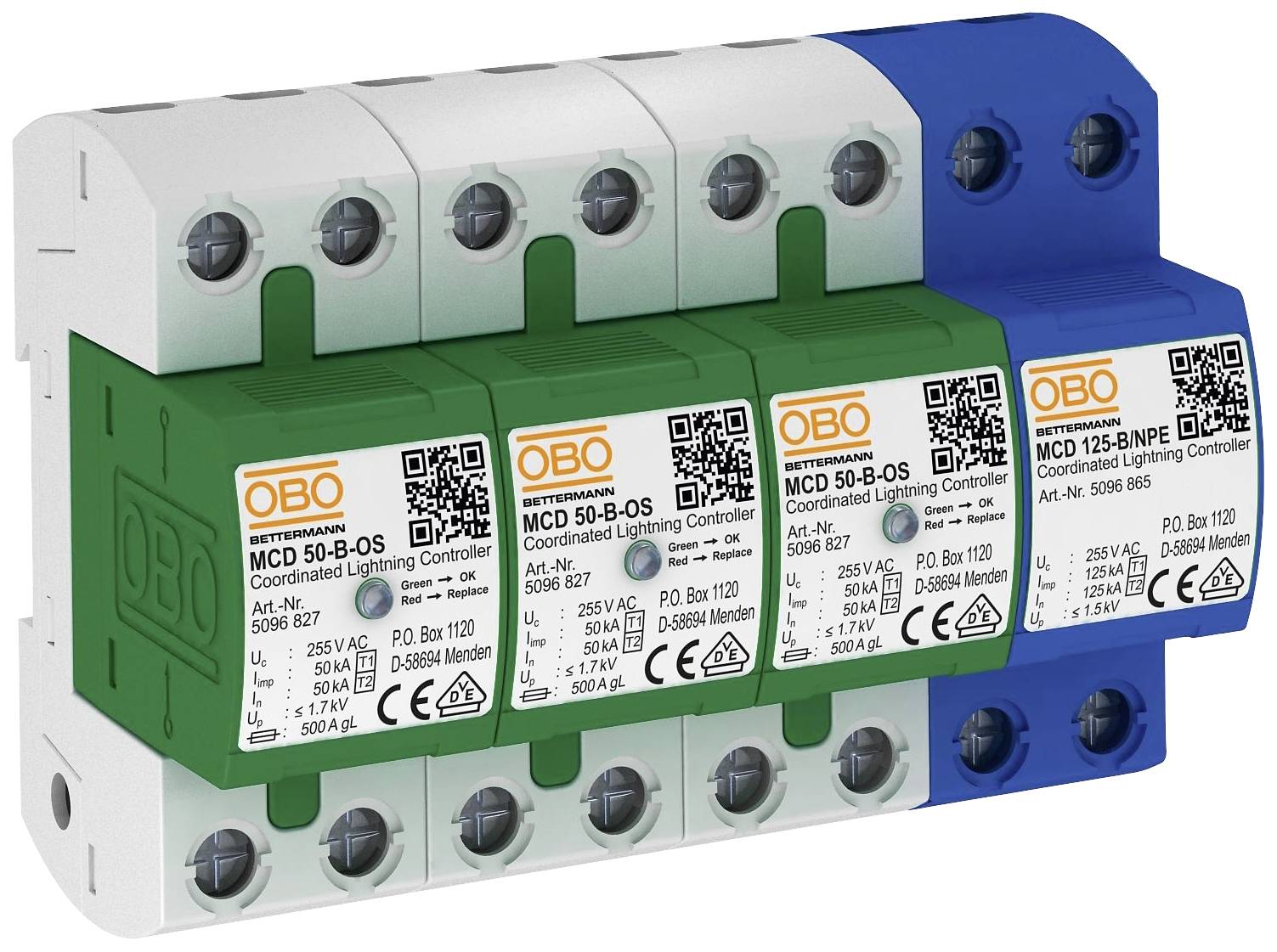

OBO Bettermann 5096836 MCD 50-B 3+1-OS Surge arrester 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Signaling on the device: optical
- Product type
Surge arrester
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +85 °C
IP20
- Manufacturer part #
5096836

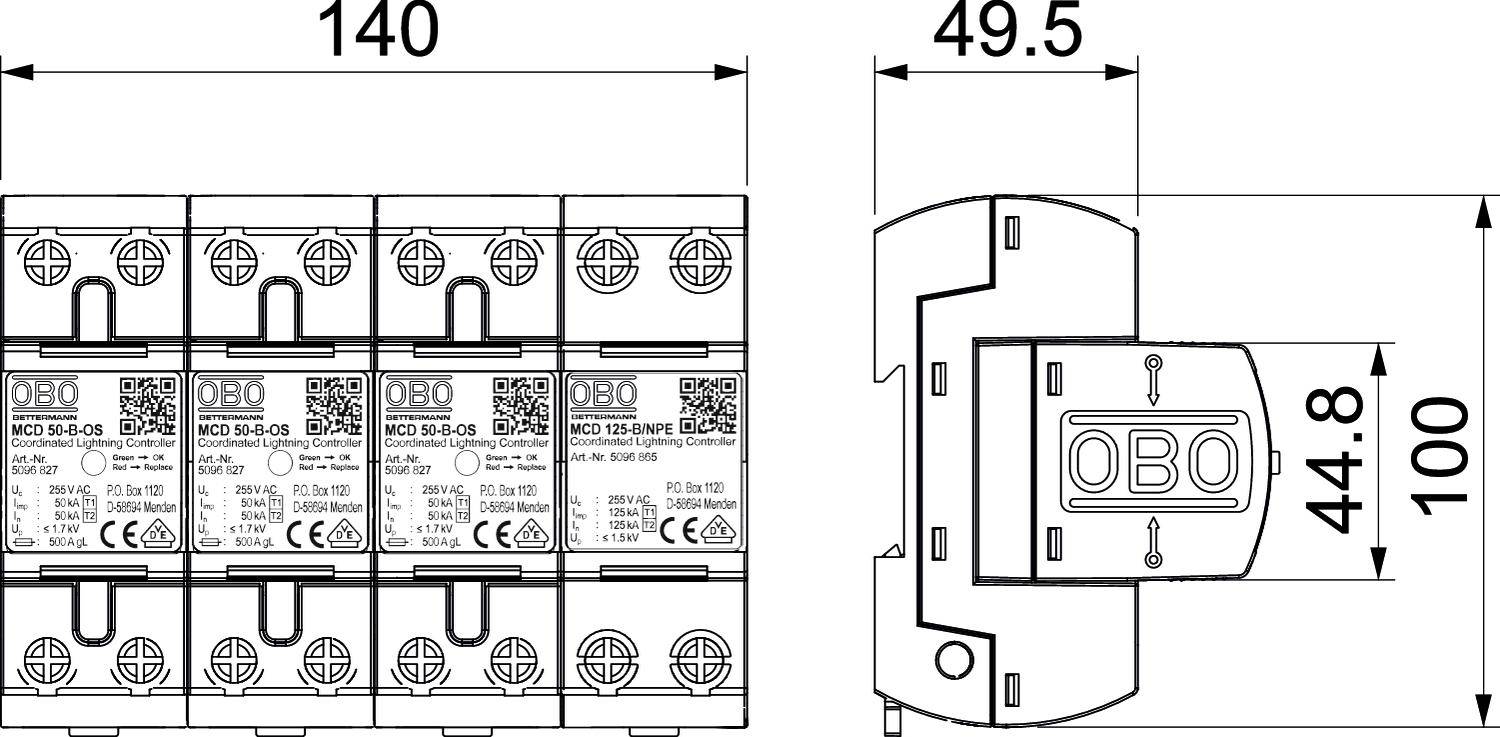

- Dim
(W x H x D) 140 x 100 x 49.5 mm
- Width
140 mm
- Height
100 mm
- Depth
49.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959153 OBO Bettermann 5096836 MCD 50-B 3+1-OS Surge arrester 50 kA 1 pc(s)
Description
Coordinated lightning controller set with function display plug-in lightning current arresters3+ NPE for 230/400 V networks. SPD according to EN 61643: Type 1 SPD in accordance with IEC 61643 Class I can be used in network form: high-performance radio link technology maximum continuous operating voltage: 255 impulse current (10/350): 50 protection level: 1.3 signaling on the device: optical short-circuit strength: 25 remote signaling contact: no division unit TE (17.5 mm): 8 Ausblasend: no type: MCD 50-B 3+1-OS Art.-No.: 5096836
