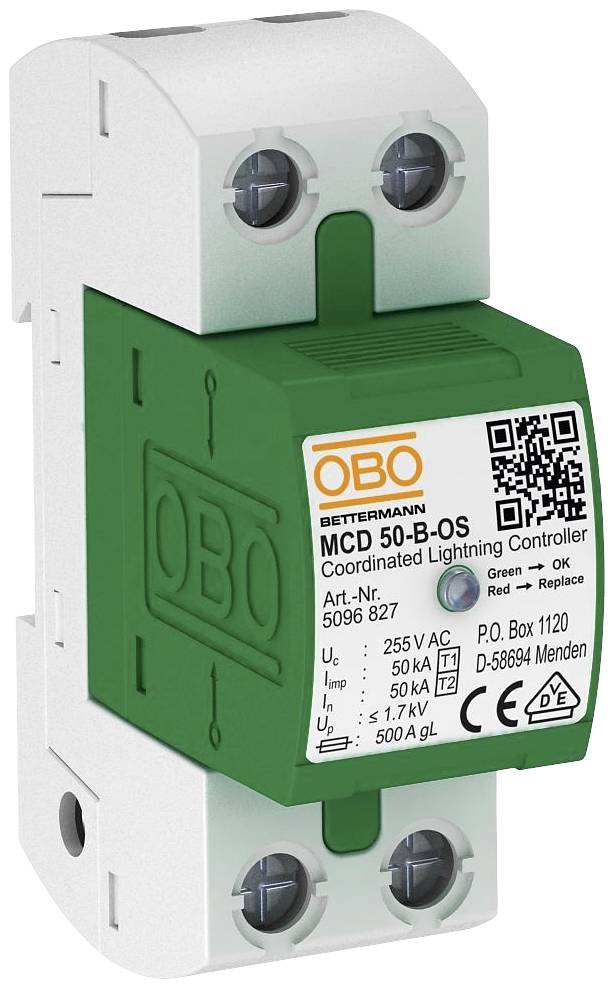

OBO Bettermann 5096852 MCD 50-B-OS Lightning conductor 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Follow current extinguishing capability: 25kA
- Size: 2 TE
- With remote signalling contact: no
- Ausblasend: no
- Signaling on the device: optical
- Test class type 1: yes
- Product type
Lightning conductor
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5096852

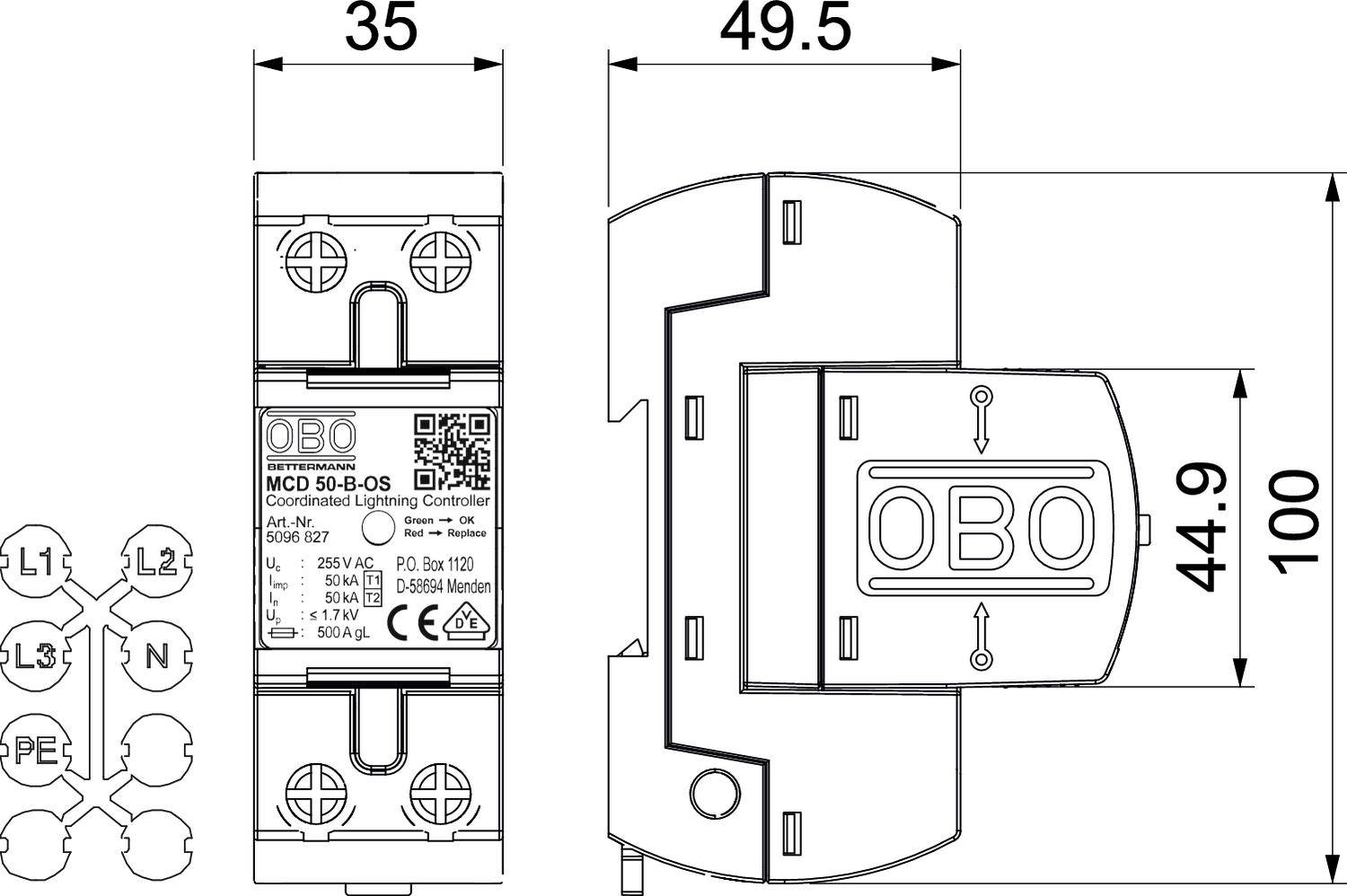

- Dim
(W x H x D) 35 x 100 x 49.5 mm
- Width
35 mm
- Height
100 mm
- Depth
49.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957813 OBO Bettermann 5096852 MCD 50-B-OS Lightning conductor 50 kA 1 pc(s)
Description
Combination / lightning conductor type 1 (class B) according to EN 61643-11. Upper and lower sections with visual indicator, compliant with VDN policy 2. Edition 2004, leakage capacity 50 kA 10/350µs per pole, protection level< 1.3 kV, line sequence current extinguishing 25 kA peak max. required pre-fuse 500 A, LPZ 0-2. Encapsulated, non-blowing spark gap. No distance (cable length) to downstream type 2 conductors (overvoltage protection) is necessary.
