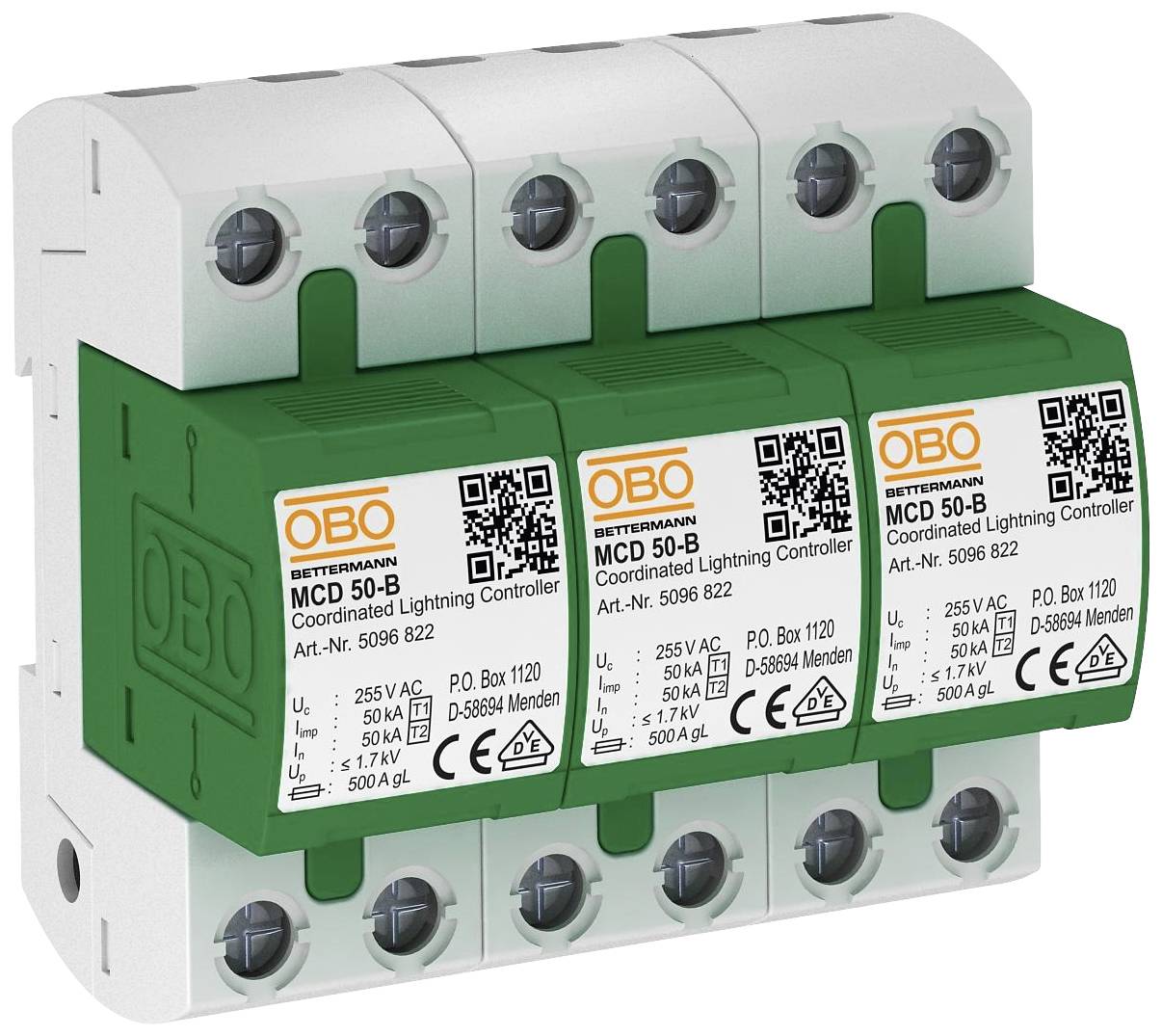

OBO Bettermann 5096877 MCD 50-B 3 Surge arrester 150 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 255 V
- Protection level: 1.3 kV
- Follow current extinguishing capability: 25kA
- Size: 6 TE
- With remote signalling contact: no
- Ausblasend: no
- Signaling on the device: without
- Test class type 1: yes
- Product type
Surge arrester
- Leakage current
150 kA
- Nominal voltage
230 V AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5096877

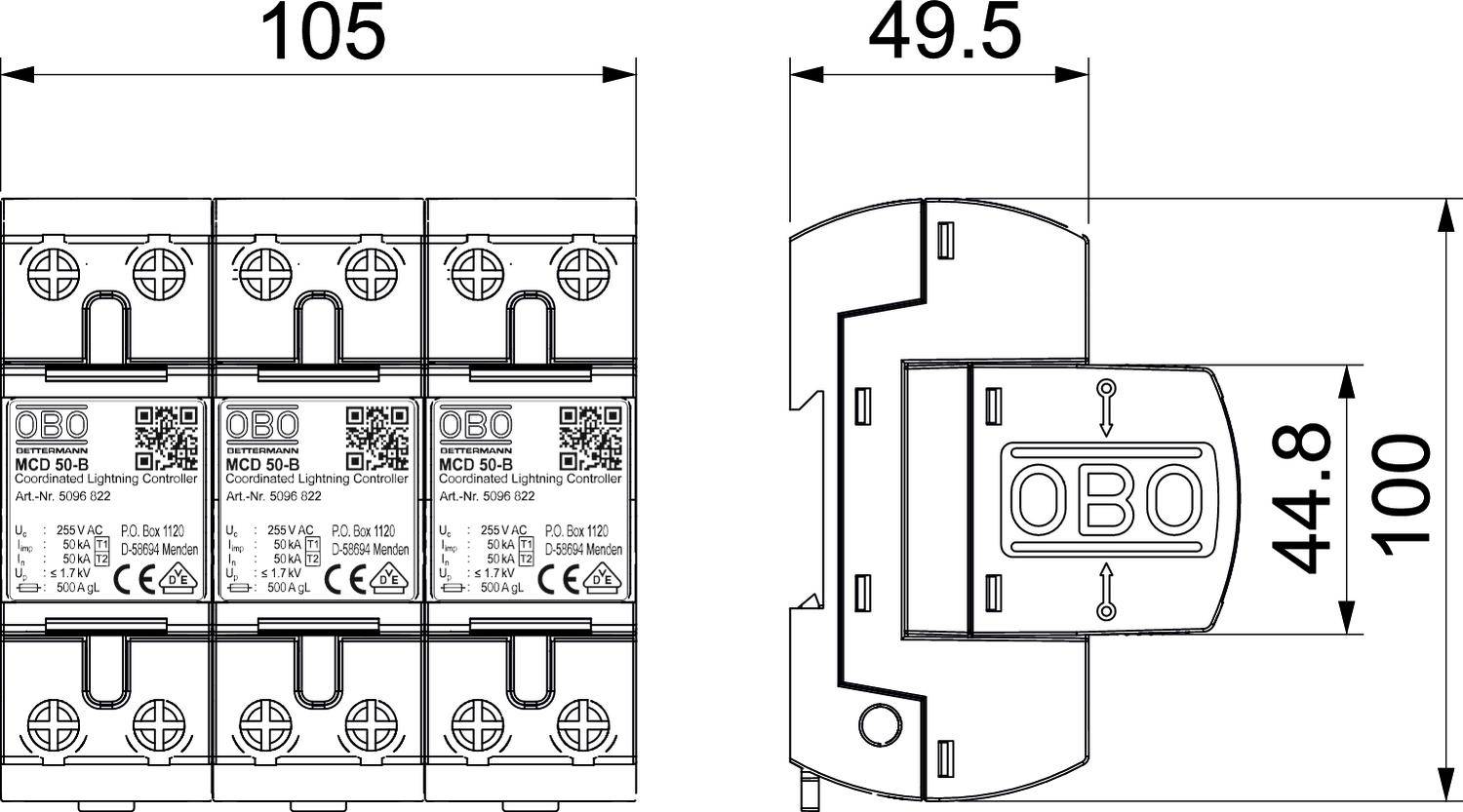

- Dim
(W x H x D) 105 x 100 x 49.5 mm
- Width
105 mm
- Height
100 mm
- Depth
49.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961863 OBO Bettermann 5096877 MCD 50-B 3 Surge arrester 150 kA 1 pc(s)
Description
Combi-/Blitzstromableiter-Set MCD... Type 1 (Class B) according to EN 61643. MCD 50-B/3: (3-pin) for use in 230/400 V TN-C systems, energy-coordinated to Type 2-conductors as well as directly to devices. Innovative multi-carbon-technology with plug-in, sealed radio links. Corresponds to the VDN Directive 2. Edition 2004, discharge capacity 50 kA 10/350 μs per pin, power of current-Extinguishing 25kA peak max. Required fuse 500A, LPZ 0-2. The low protection level (up< 1.3 kV) makes the installation of entkopplungs-induktivitaten superfluous and offers a protection directly to the terminal. The Ableiter-Set is complete, ready and pre-installed.
