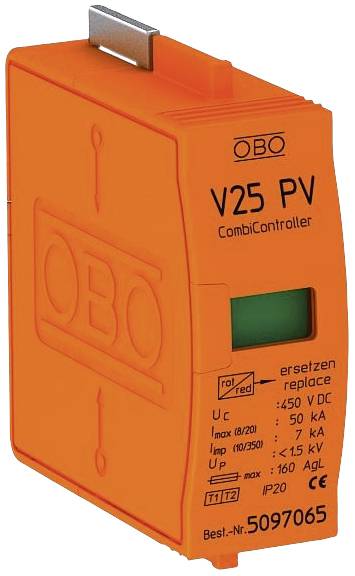

OBO Bettermann 5097065 V25-B+C 0-450PV CombiController 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pins = 1
- Lightning impulse current (10/350 μs) = 12.5 kA
- The highest continuous voltage AC = 385 V
- Nominal voltage DC = 450 V
- Max. PV-voltage = 450 V
- Protection level = 1.5 kV
- Size = 1 TE
- Remote signalling = No
- Signaling on the device = optical
- Test class = type 1 and 2
- Ausblasend = No
- Product type
CombiController
- Leakage current
50 kA
- Manufacturer part #
5097065
- Content
1 pc(s)
- Number of pins
1
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964579 OBO Bettermann 5097065 V25-B+C 0-450PV CombiController 50 kA 1 pc(s)
Description
Combi controller upper part, type 1+2 combination surge arrester for photovoltaic systems. For overvoltage protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). Discharge capacity up to 7 kA (10/350) and 50 kA (8/20) per pole. low DC protection level:< 1.5 kV per pin (Y-connection: 3.0 KV and uoc max = 900V DC). Surge arrester, can be plugged with thermal-dynamic Disconnection device disconnects and visual function display. Encapsulated zinc oxide varistor-arrester for use in distributor housings. Application: PV systems with lightning protection system.
