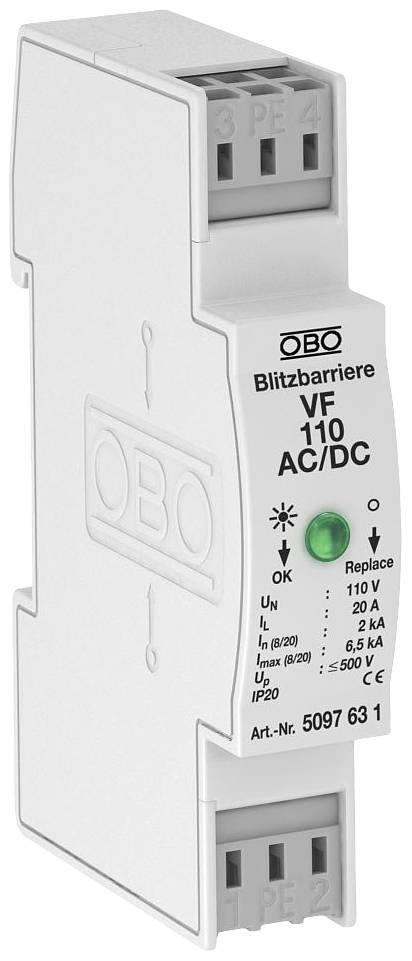

OBO Bettermann 5097631 VF110-AC DC Surge protection device 6.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 120 V
- The highest continuous voltage DC: 170 V
- Nominal load current 20 A
- Protection level L-N: 0.5 kV
- Protection level L-PE/N-PE: 1.4 kV
- Number of pins: 2
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 3: yes
- With noise filter: no
- Product type
Surge protection device
- Leakage current
6.5 kA
- Nominal voltage
110 V DC/AC
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5097631

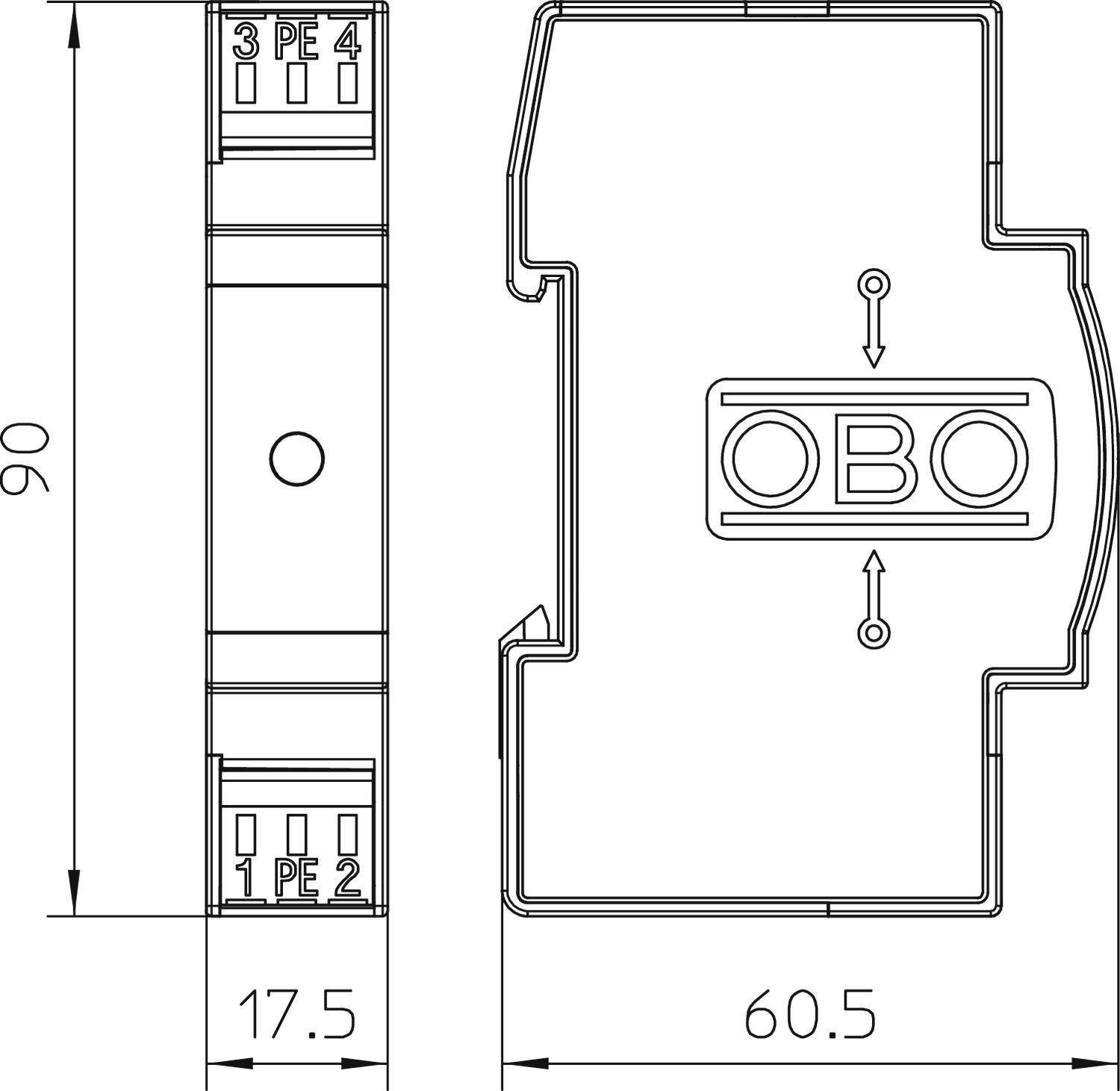

- Dim
(W x H x D) 17.5 x 90 x 60.5 mm
- Width
17.5 mm
- Height
90 mm
- Depth
60.5 mm
- Content
1 pc(s)
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963225 OBO Bettermann 5097631 VF110-AC DC Surge protection device 6.5 kA 1 pc(s)
Description
Suitable for direct and alternating voltage systems, with screw less terminals, Y-circuit
