OBO Bettermann 5097822 VF48-AC/DC-FS Surge protection device 2 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 60 V
- Nominal load current 20 A
- Nominal surge current (8/20) (L-N): 0.7 kA
- With remote signalling contact: yes
- Signaling on the device: optical
- Test class type 3: yes
- Product type
Surge protection device
- Leakage current
2 kA
- Nominal voltage
48 V AC
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5097822

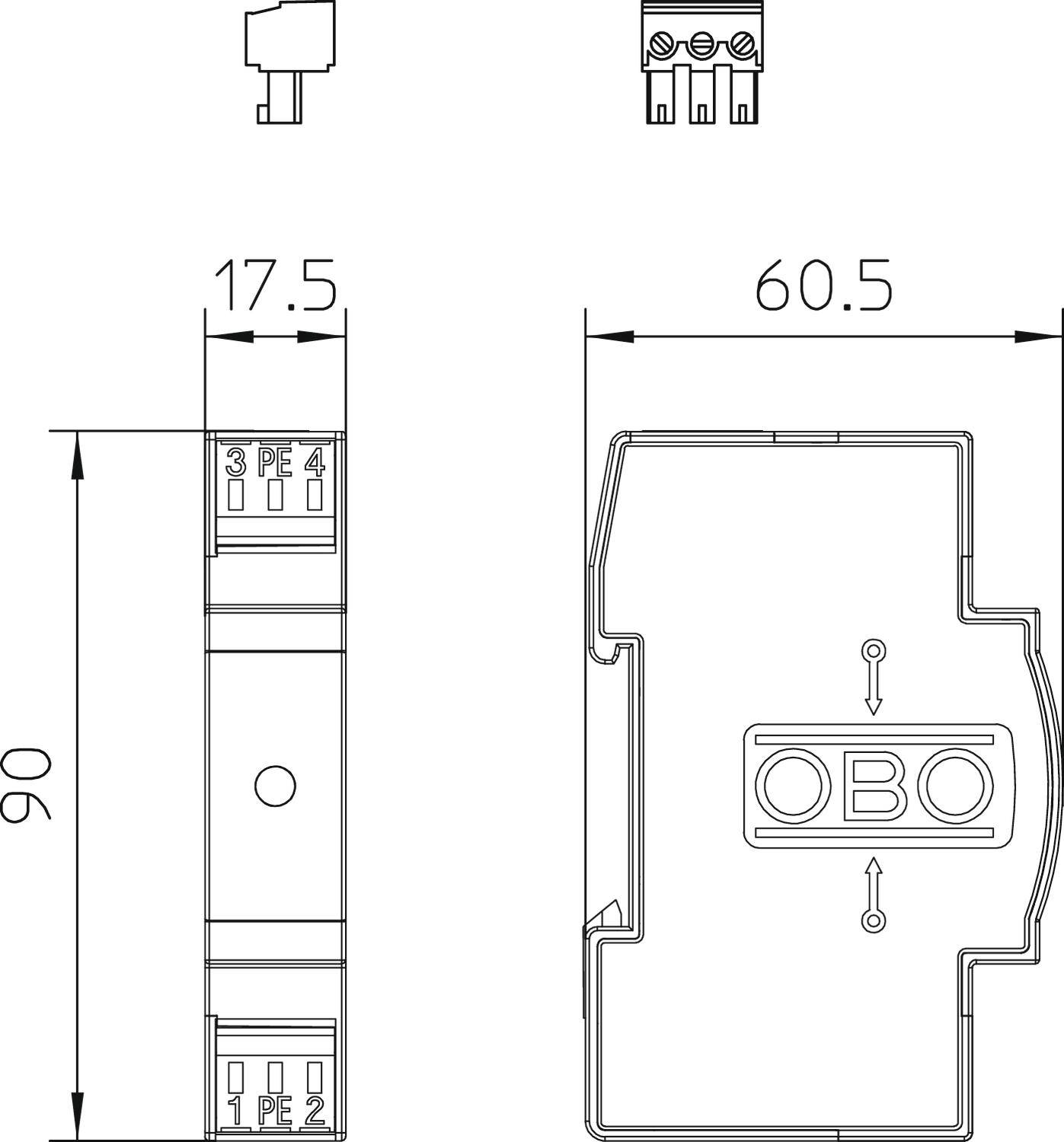

- Dim
(W x H x D) 17.5 x 90 x 60.5 mm
- Width
17.5 mm
- Height
90 mm
- Depth
60.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961880 OBO Bettermann 5097822 VF48-AC/DC-FS Surge protection device 2 kA 1 pc(s)
Description
Overload protection/Power fine protection type 3 according to EN 61643 with remote signalling - with remote signalling: potential-free changeover contact - suitable for direct and alternating voltage systems - with visual function display - with installation-friendly, screw less terminals - in the space-saving, 17.5 mm grid-Y-Circuit Application: universal use on 35 mm top hat profile rail in commercially available in manifold.
