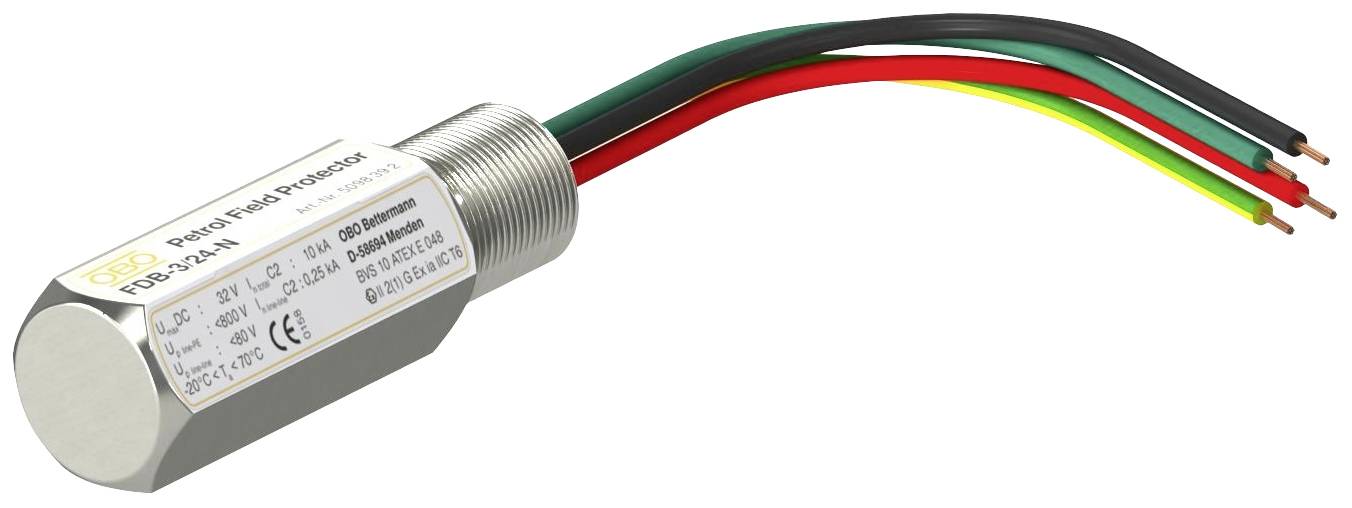

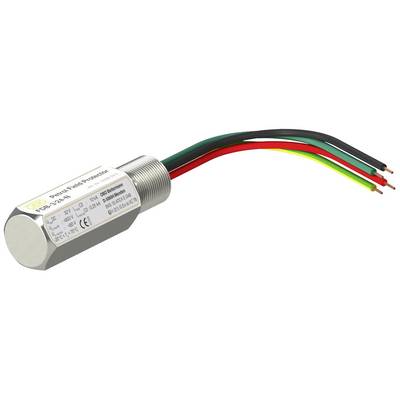

OBO Bettermann 5098392 FDB-3 24-N Surge protection device 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 22 V
- The highest continuous voltage DC: 32 V
- Protection level wire/wire: 80 V
- Protection level wire/Earth: 850 V
- Installation type: Other
- Track 1: other
- With remote signalling contact: no
- Signaling on the device: without
- Explosion tested design: yes
- Product type
Surge protection device
- Leakage current
10 kA
- Nominal voltage
24 V AC
- Operating temperature
-20 to +70 °C
IP65
- Manufacturer part #
5098392

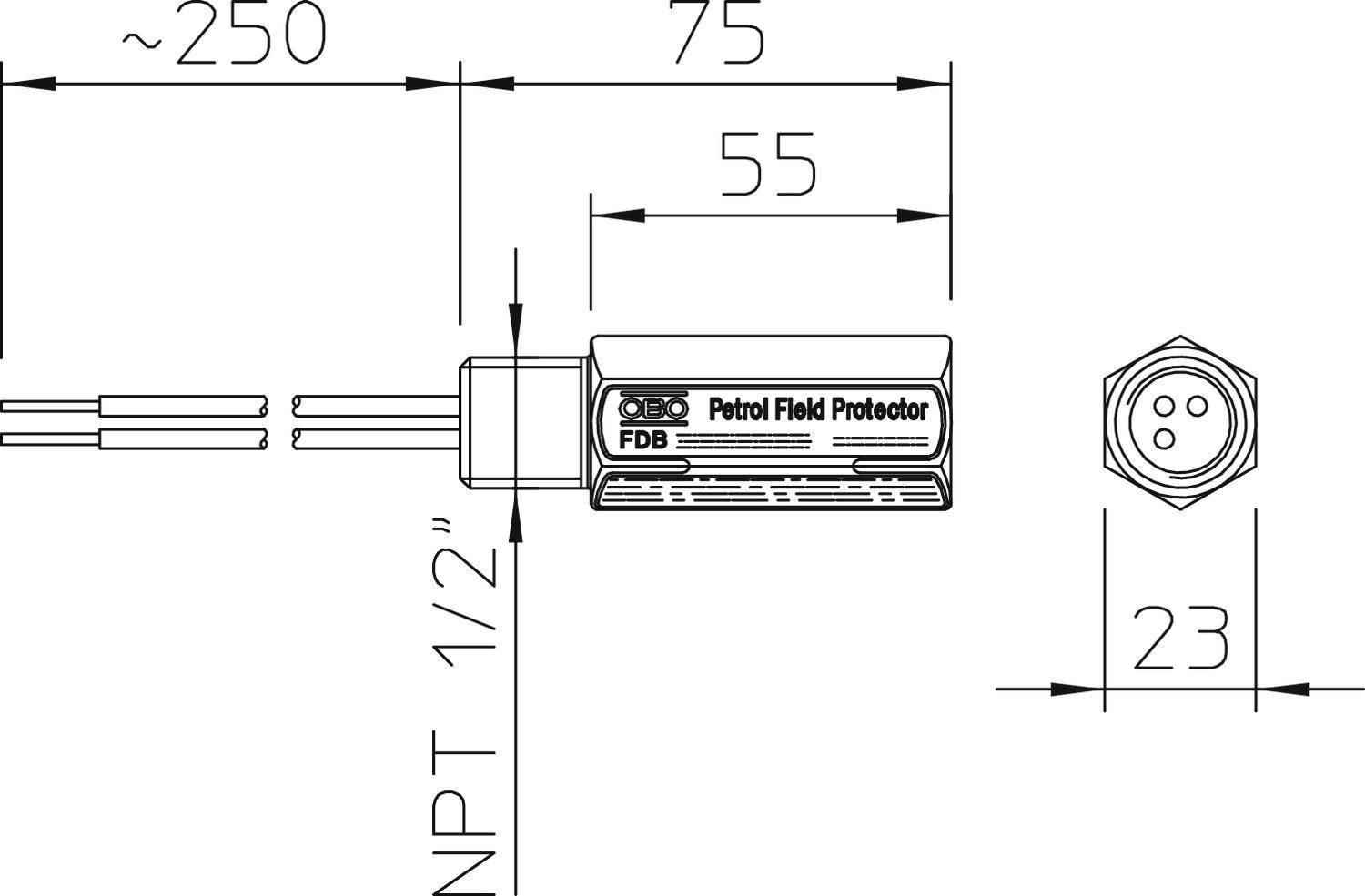

- Dim
(L x W) 75 mm x 23 mm
- Length
75 mm
- Width
23 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963220 OBO Bettermann 5098392 FDB-3 24-N Surge protection device 10 kA 1 pc(s)
Description
Lightning barrier type FRD, overvoltage protection (basic + fine protection, LPZ 0-3) for MSR-SPS, V.11, V.24, EIB, 4-20 mA data lines and bus systems (1 double-loader protection level< 13 to 51 V depending on version).
