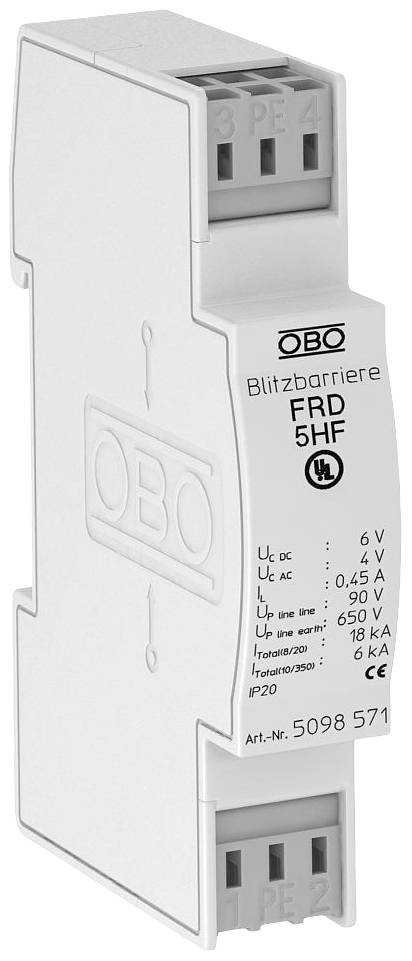

OBO Bettermann 5098571 FRD 5 HF Surge protection device 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 4.2 V
- The highest continuous voltage DC 6 V
- Nominal load current: 0.45 A
- Protection level wire/wire: 18 V
- Protection level wire/Earth: 500 V
- Track 1: Terminal
- With remote signalling contact: no
- Signaling on the device: without
- Explosion tested design: no
- Product type
Surge protection device
- Leakage current
20 kA
- Nominal voltage
5 V
- Type
Installation type: TH 35 standard mounting rail
- Operating temperature
-40 to +80 °C
IP20
- Manufacturer part #
5098571

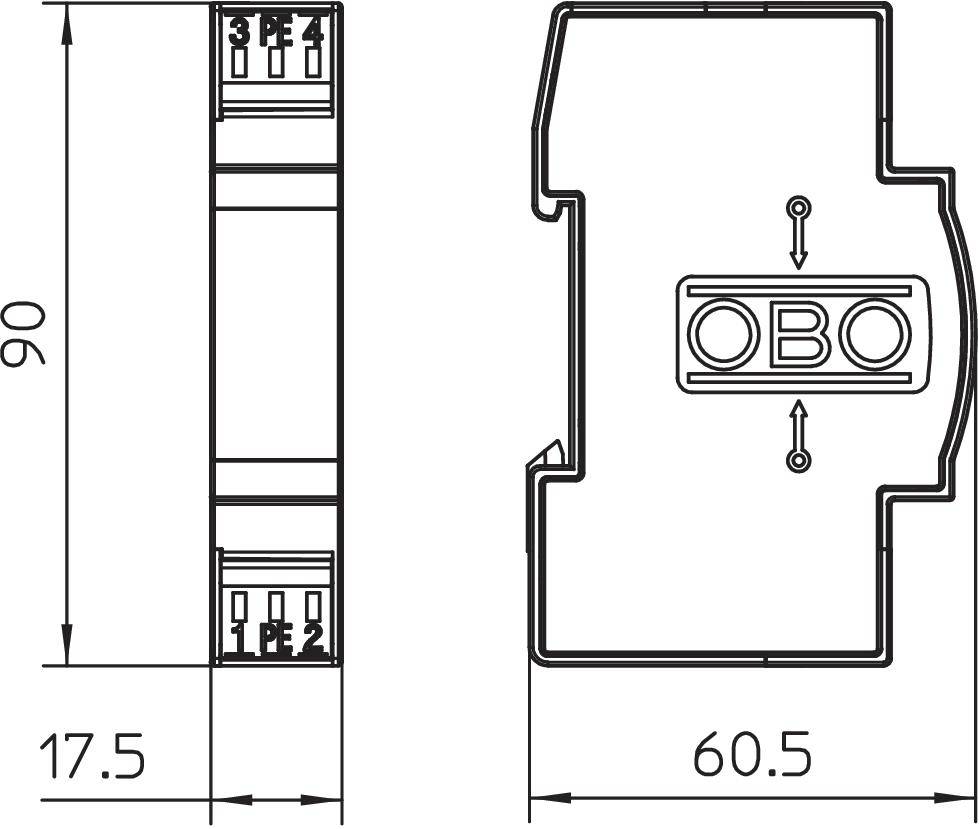

- Dim
(W x H x D) 17.5 x 90 x 60.5 mm
- Width
17.5 mm
- Height
90 mm
- Depth
60.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960498 OBO Bettermann 5098571 FRD 5 HF Surge protection device 20 kA 1 pc(s)
Description
Universal overvoltage protection (Basic, medium and fine protection) for use in measurement and control systems. Two-stage protective circuit with high lightning current discharge capacity, high transmission frequency of 100 MHz, Universal for all bus systems (e.g. Profibus), with installation-friendly, screw less terminals; in space-saving, 17.5 mm grid dimension.
