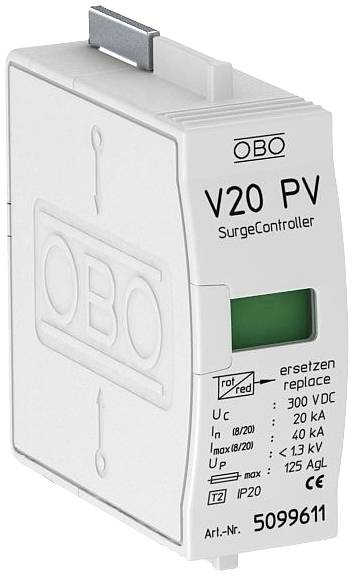

OBO Bettermann 5099611 V20-C 0-300PV Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The highest continuous voltage AC: 440 V
- The highest continuous voltage DC: 300 V
- Size: 1 TE
- Max. PV-voltage: 300 V
- Protection level: 1.3 kV
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
400 V AC
- Type
Installation type: on the basis of element
IP20
- Manufacturer part #
5099611

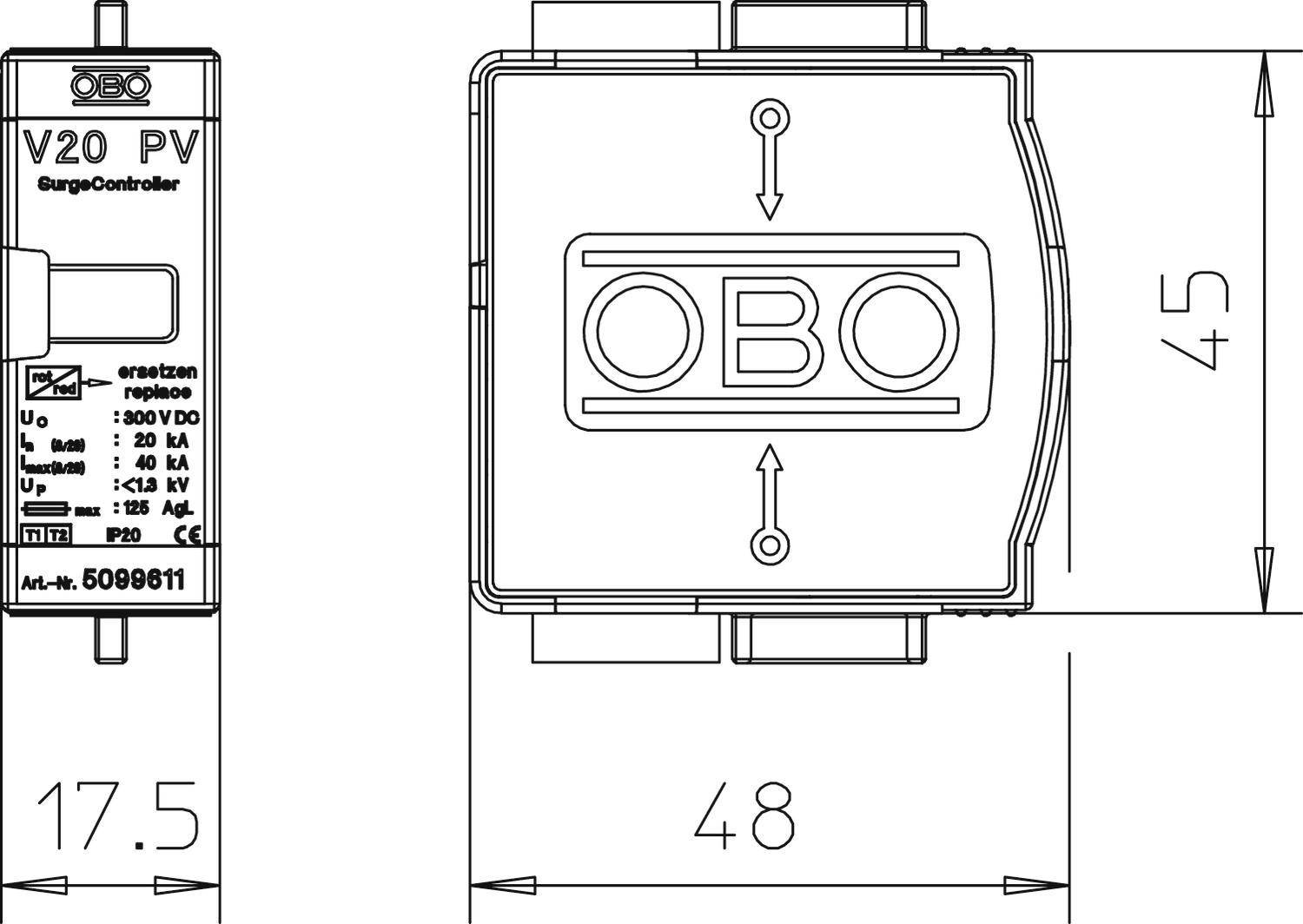

- Dim
(W x H x D) 17.5 x 45 x 48 mm
- Width
17.5 mm
- Height
45 mm
- Depth
48 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960495 OBO Bettermann 5099611 V20-C 0-300PV Surge arrester 20 kA 1 pc(s)
Description
Surge controller upper part VDE-tested, plug-in upper part, without the need for tools to disconnect from the lower part, including thermal and dynamic Disconnection device disconnects and visual defect indicator.
