OBO Bettermann 5099708 V20-C 0-500PV Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal surge current (8/20) 20 kA
- The highest continuous voltage AC: 440 V
- The highest continuous voltage DC: 500 V
- Size: 1 TE
- Max. PV-voltage 500 V
- Protection level: 2 kV
- With remote signalling contact: no
- Signaling on the device: optical
- Test class type 2: yes
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
400 V AC
- Type
Installation type: on the basis of element
IP20
- Manufacturer part #
5099708

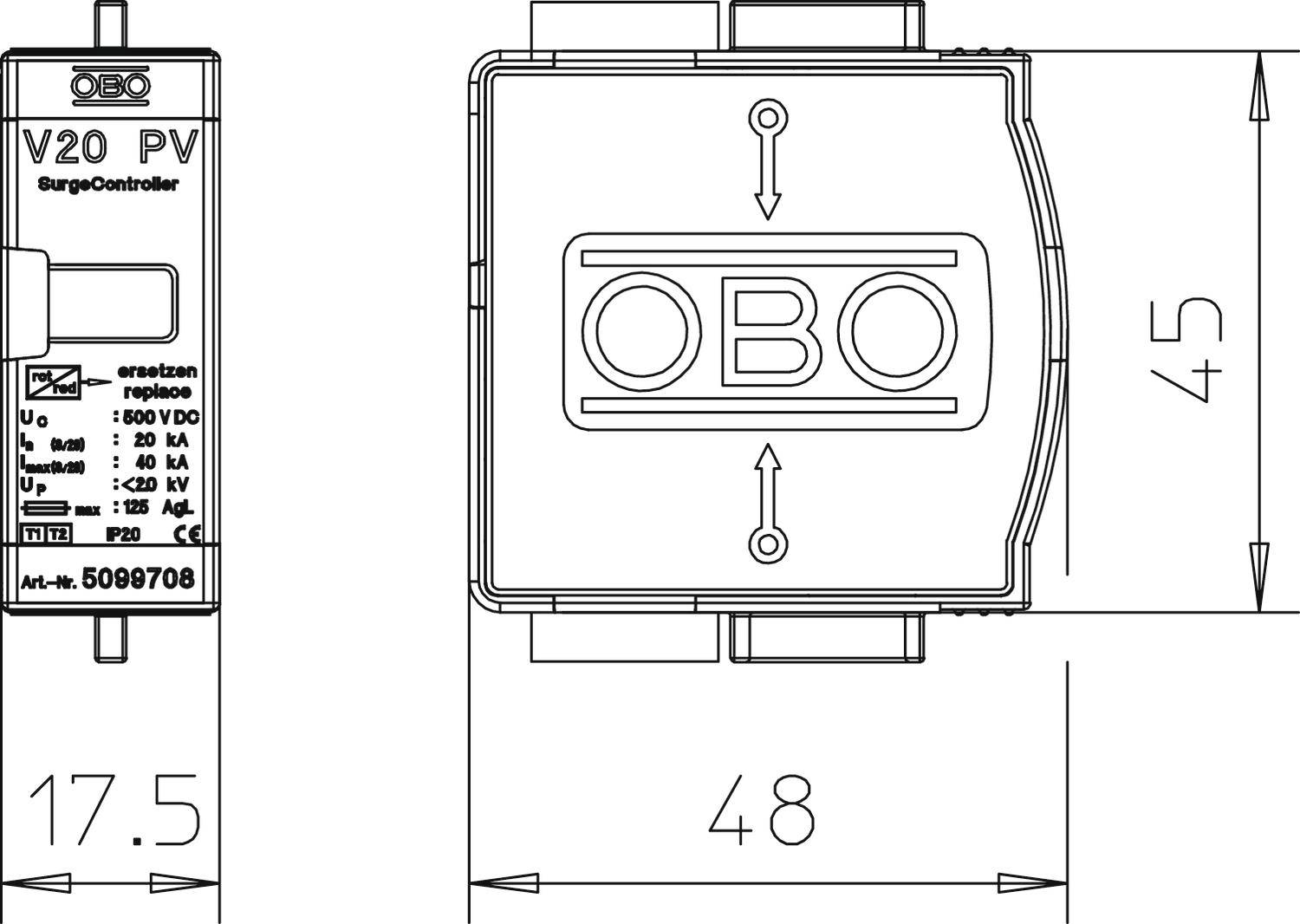

- Dim
(W x H x D) 17.5 x 45 x 48 mm
- Width
17.5 mm
- Height
45 mm
- Depth
48 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961867 OBO Bettermann 5099708 V20-C 0-500PV Surge arrester 20 kA 1 pc(s)
Description
Surge controller upper part, Type 2 surge arrestors for photovoltaic systems. For overvoltage protection potential compensation (IEC 60364-4-44 according to VDE 0100-443). Discharge capacity up to 40 kA (8/20) per pole. Low DC protection level:< 2.0 kV per pin (Y-connection: 4.0 KV and uoc max = 1000 V DC). Surge arrester, can be plugged with thermal-dynamic Disconnection device disconnects and visual function display. Encapsulated zinc oxide varistor-arrester for use in distributor housings. Application: PV systems with or without separate insulated lightning protection system.
