OBO Bettermann 5408006 PG cable 35 mm² Black 250 m
EAN:
Part number:
Item no:
Product type
PG cable
Cross section (each core)
35 mm²
Content
250 m
Cross section (each core) (part 2)
35 mm²

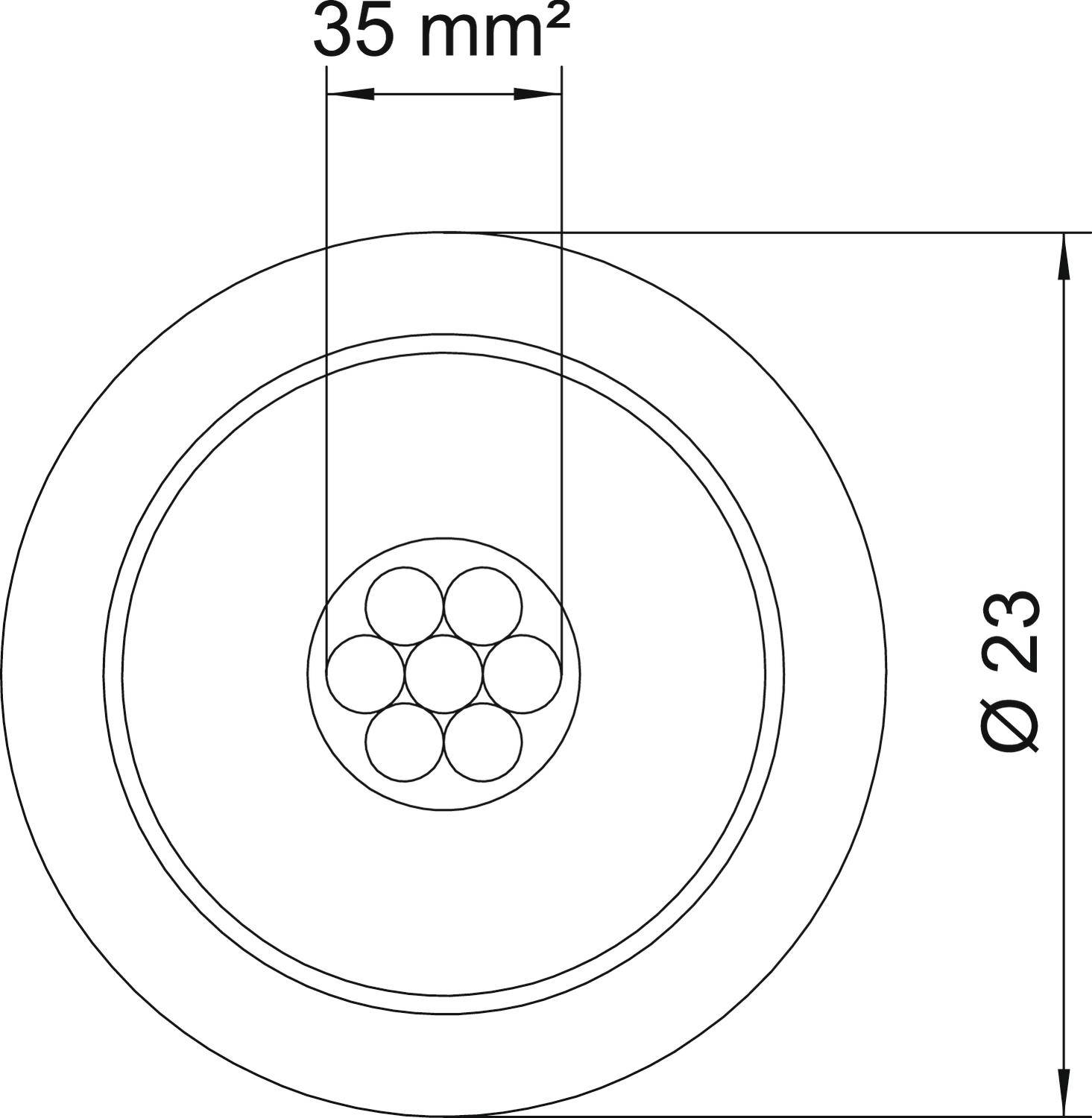

Cross section
35 mm² + 35 mm²
Technical specifications
- Product type
PG cable
- Cross section (each core)
35 mm²
- Cross section (each core) (part 2)
35 mm²
- Cross section
35 mm² + 35 mm²
- Factory colour
Black
- Outside Ø
23 mm
- Content
250 m
- Halogen-free
Yes
- Manufacturer part #
5408006
- Type
isCon Pro+ 75SW/250m
- Max. length sold by the metre
250 m
- Length
250 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2866660 OBO Bettermann 5408006 PG cable 35 mm² Black 250 m
Description
For information on the routing of the OBO iSCON line, please refer to the installation instructions. - High-voltage-resistant, insulated discharge - non-slip discharge - additional mechanical protection (black protective sheath) - to maintain the separation distance according to IEC 62305 (VDE 0185-305-3) - tested in accordance with IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA - equivalent separation distance se = 0.75 m (air) and se = 1.5 m (solid construction material) - Tested according to IEC TS 62561-8 (VDE V 0185-561-8) - halogen-free - combustible load 4.3 kWh/m - may be used in hazardous areas EX Zone 1/2 and 21/22, observing the current assembly instructions
