Buy OBO Bettermann 6010004 Stepladder 3 m

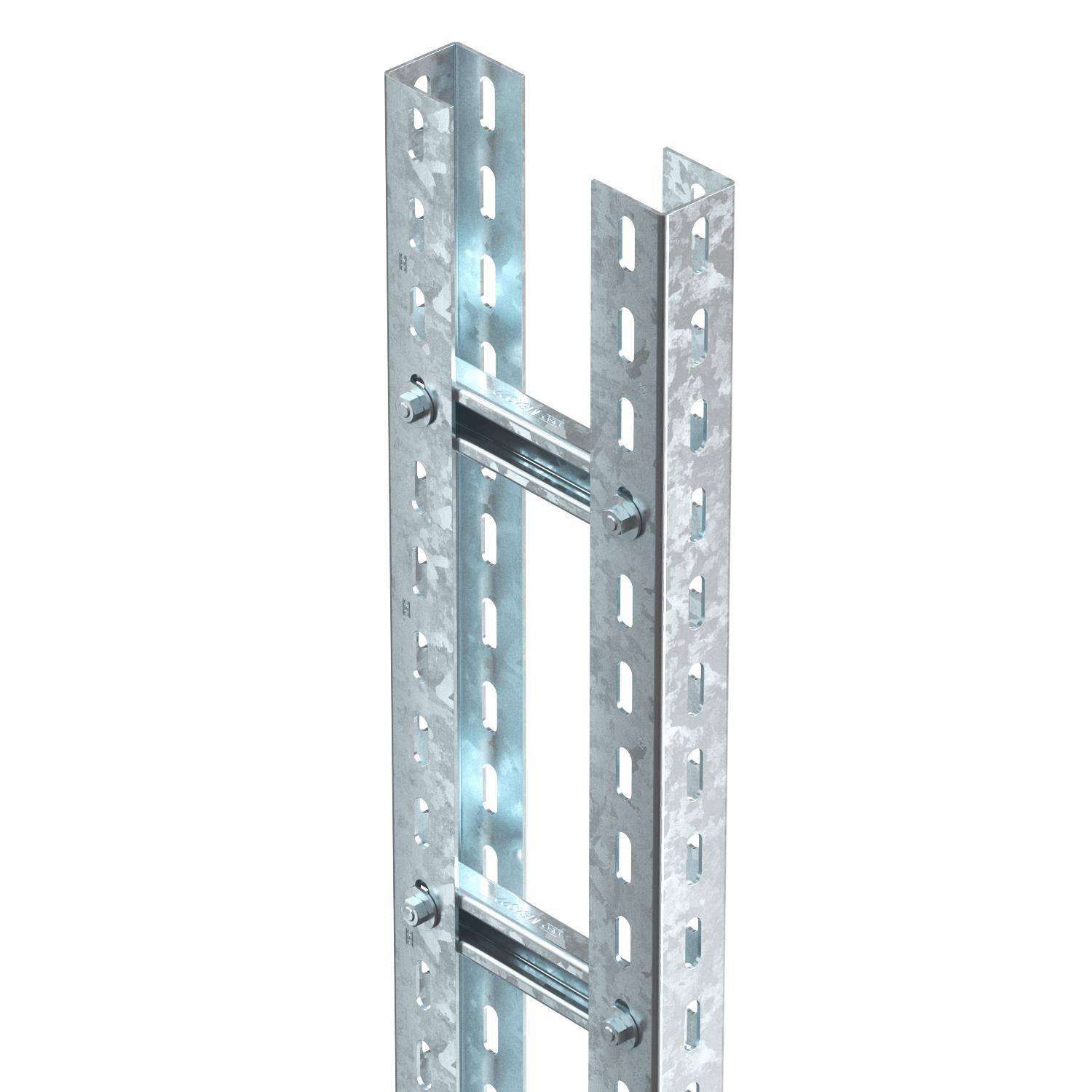

Metal rail construction with vertical and horizontal aluminium bars and holes shown, which are used for industrial assemblies.

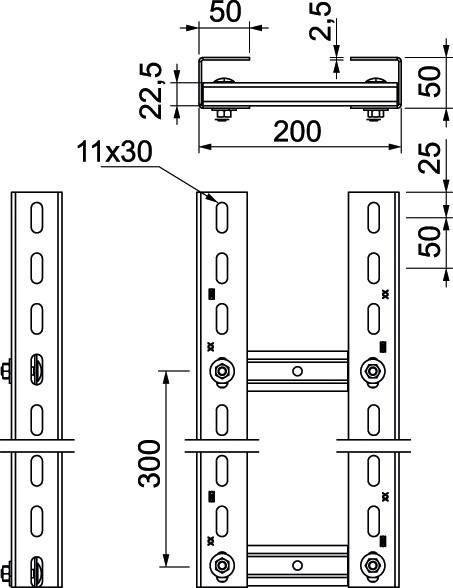

'Assembly drawing of a metal bracket with dimensions: 300 mm height, 200 mm width. Mounting holes: 11x30 mm, spacing 50 mm.'

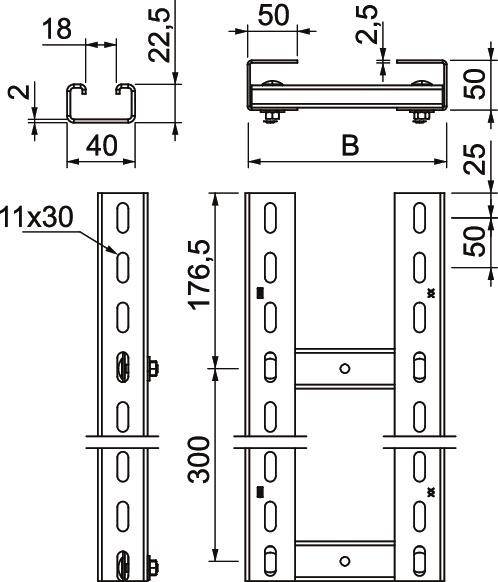

Technical Drawing of a Mounting System: Side, Front, and Top Views with Dimensions, Holes, and Clearances.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Footpath height 50 mm
Climbing track width: 200 mm
Length: 3000 mm
Side holes: Yes
Clearance 300 mm
Execution of rung: Profile unperforated
Side panel type (open)
Suitable for functional preservation: Yes
Material: Steel
Material quality: Other
Surface protection: Hot-dip galvanized

Product type: Stepladder

Component: Separator

Supplied length: 3000 mm

Content: 3 m

Dim: (L x W x H) 3 m x 200 mm x 50 mm

Length: 3 m

Width: 200 mm

Height: 50 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3407079 OBO Bettermann 6010004 Stepladder 3 m

Description

Heavy access ladder system for electrical functional maintenance according to DIN 4102 section 12. Approved clamps type 2056U/M. Supplied unassembled.

This text is machine translated.

Scope of delivery

1 x 3 m ladder
