OBO Bettermann 6049119 Cover 3 m
EAN:
Part number:
Item no:
Technical specifications

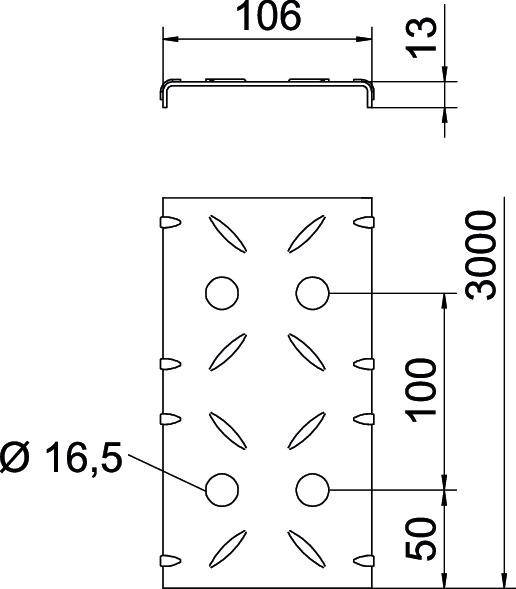

- Upper section width 100 mm
- Material thickness 3.3 mm.
- Suitable for cable duct: Yes
- Suitable for latticed groove: No.
- Suitable for cable conductor: No.
- Length: 3000 mm
- Mounting method: Lying
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Zinc-plated strip
- Product type
Cover
- Component
Lid
- Supplied length
3000 mm
- Content
3 m
- Dim
(L x W) 3 m x 100 mm
- Length
3 m
- Width
100 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3407001 OBO Bettermann 6049119 Cover 3 m
Description

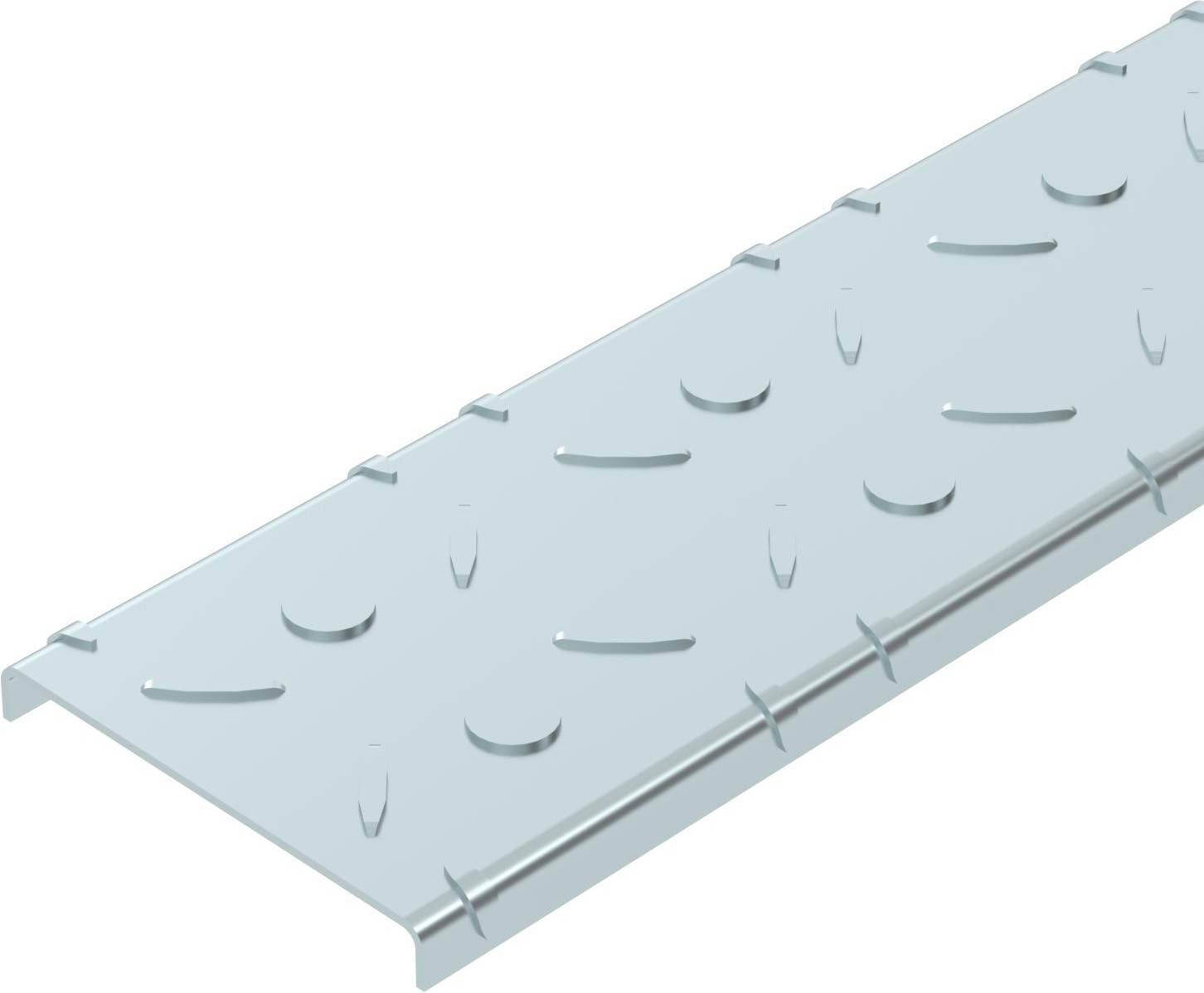

Checker plate cover for the accessible cable channel system type BKR.
The lid thickness is made up of 2.0 mm tape-zinc-coated steel plate and 1.3 mm ribbed height.

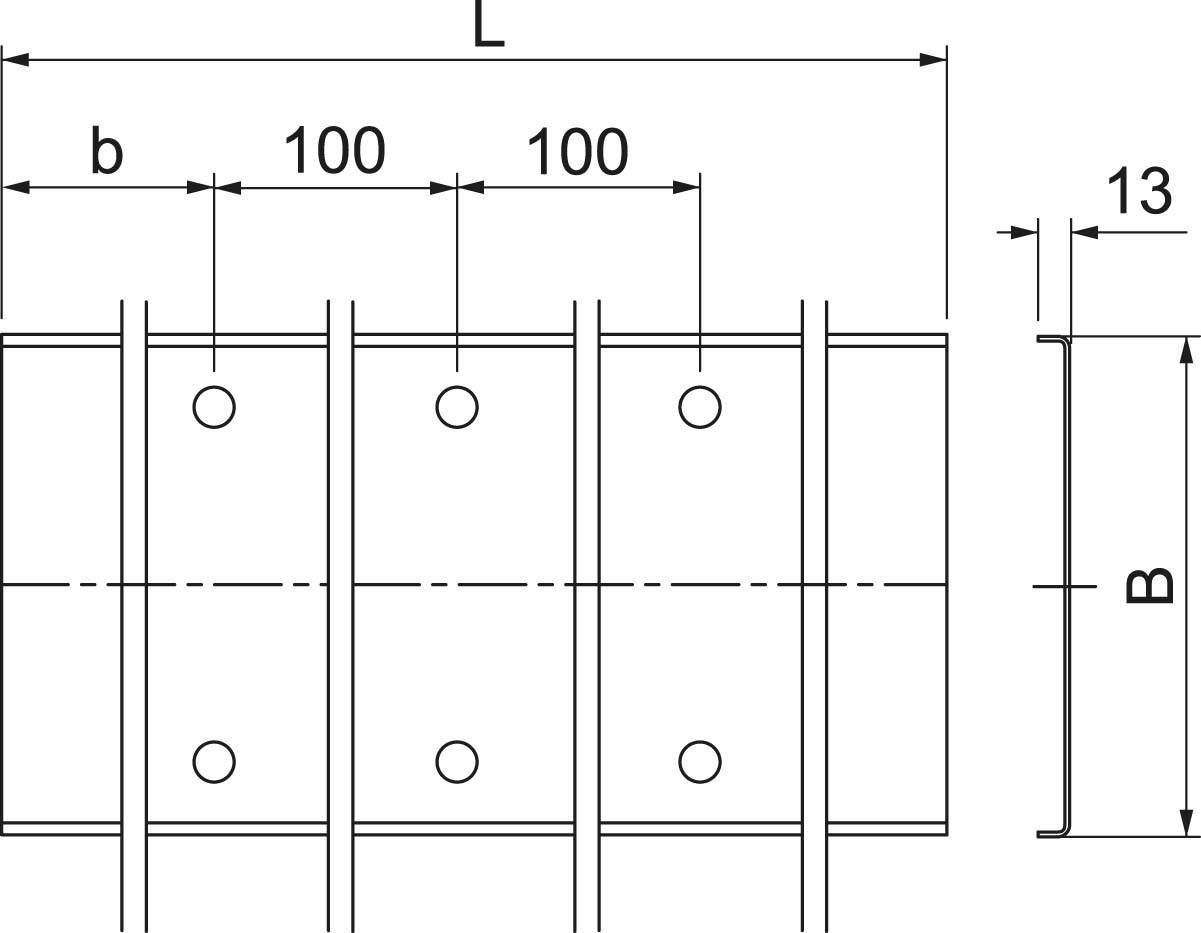

The knockouts in intervals of 100 mm enable a subsequent installation of a rotating bolt.
This text is machine translated.
The lid thickness is made up of 2.0 mm tape-zinc-coated steel plate and 1.3 mm ribbed height.
The knockouts in intervals of 100 mm enable a subsequent installation of a rotating bolt.
This text is machine translated.
Scope of delivery
- 1 x 3 m coverage
