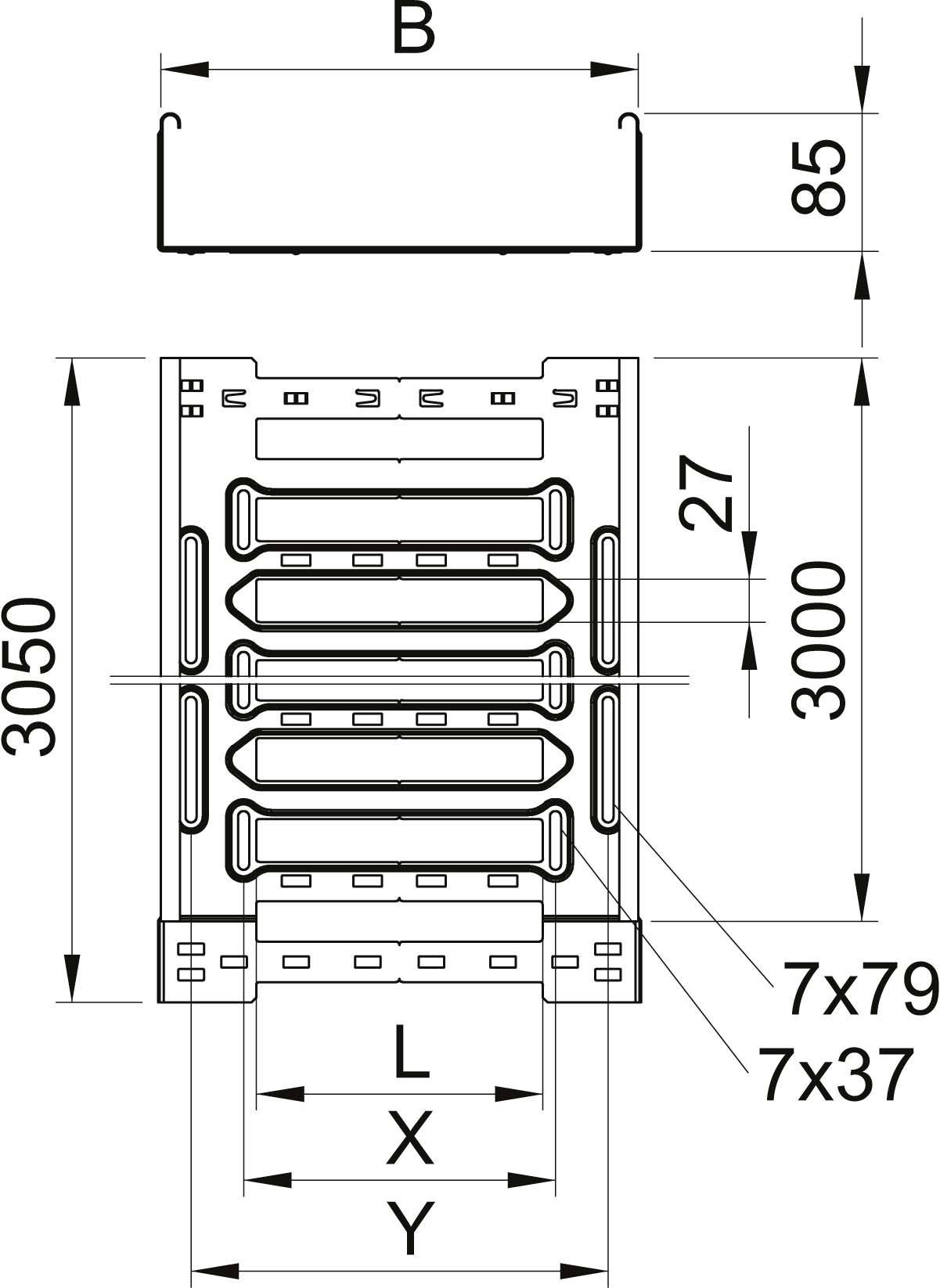

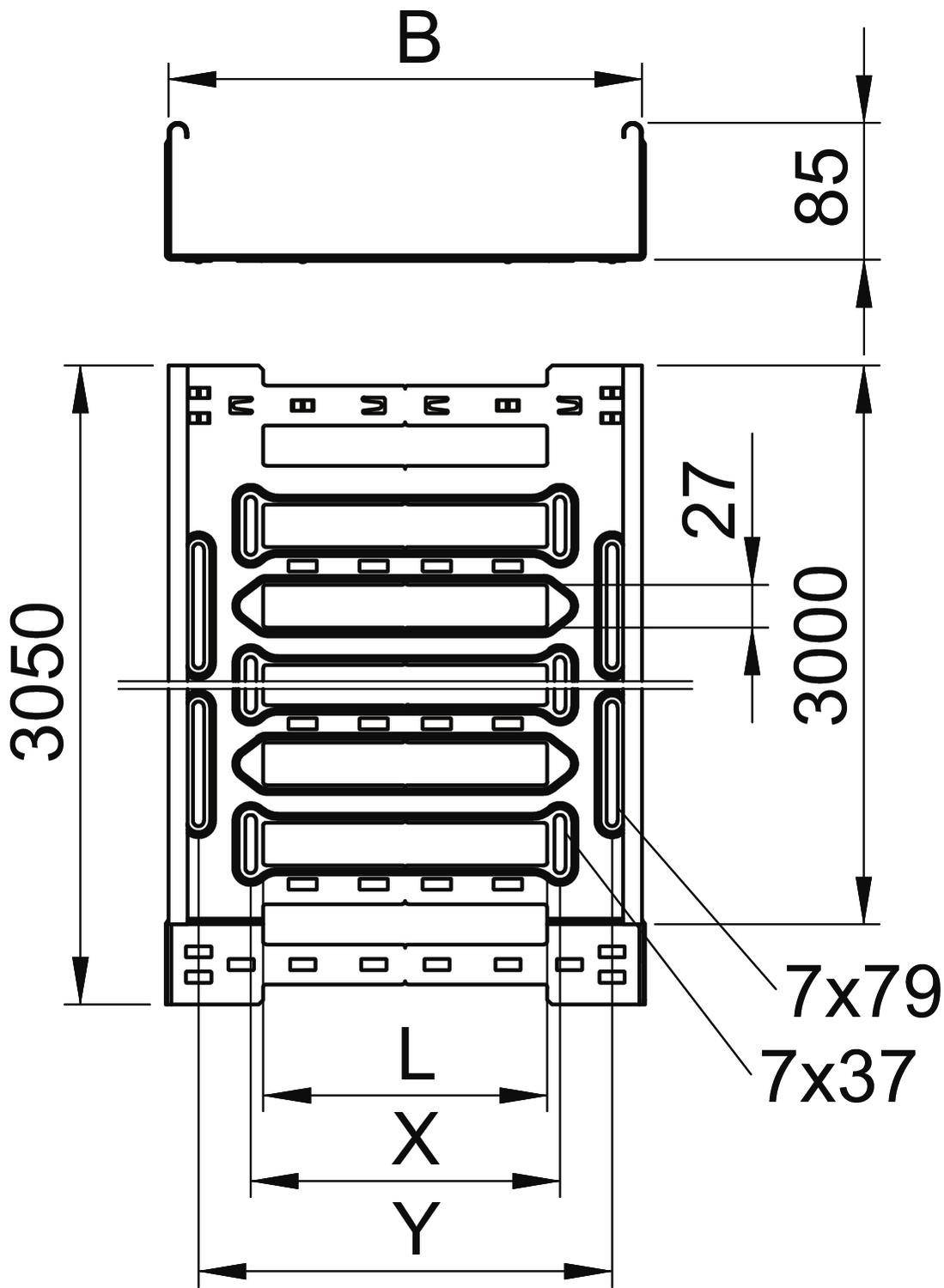

OBO Bettermann 6059084 Cable duct (L x W x H) 3 m x 200.00 mm x 85.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Height: 85 mm
- Width 200 mm
- Material thickness 1 mm.
- Length: 3050 mm
- Usable cross-section: 18600 mm²
- With top: No.
- Side holes: Yes
- Mounting holes in the ground: Yes
- NATO hole pattern: No.
- Built: Built-in connector
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Zinc-plated strip
- Weighs 2.55 kg/m.
- Load test type according to IEC 61537: Type II.
- Product type
Cable duct
- Type
Integrated connector
- Content
3 m
- Dim
(L x W x H) 3 m x 200.00 mm x 85.00 mm
- Length
3 m
- Width
200.00 mm
- Height
85.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406955 OBO Bettermann 6059084 Cable duct (L x W x H) 3 m x 200.00 mm x 85.00 mm 3 m
Description

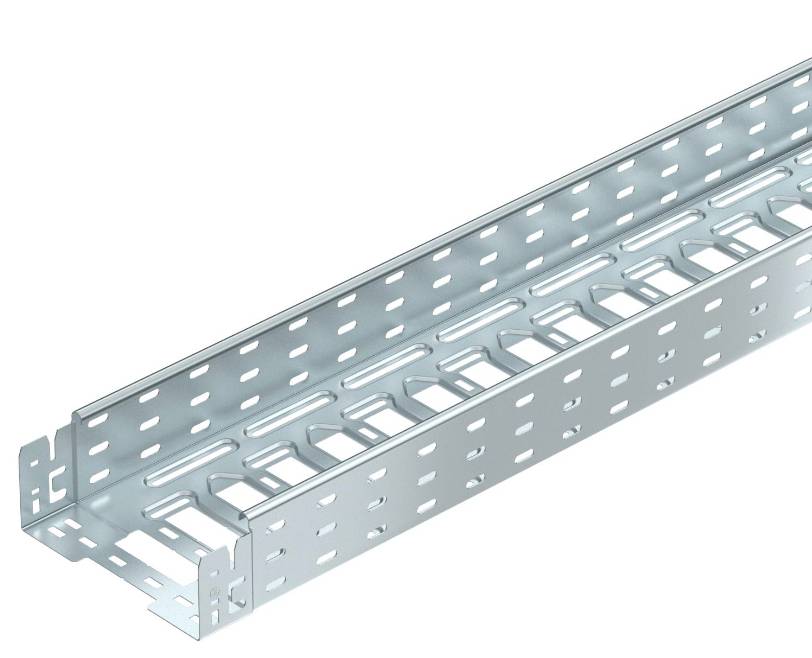

Cable channel with integrated quick mounting system. The useful length of the cable duct is 3,000 mm.
The cable channel has a continuous side punching of 7 x 20 mm for installation of additional connection and assembly components.
From cable trough width 200 mm with 30% share of holes, according to VdS guideline 2092 suitable for use under sprinkler systems.
This text is machine translated.
The cable channel has a continuous side punching of 7 x 20 mm for installation of additional connection and assembly components.
From cable trough width 200 mm with 30% share of holes, according to VdS guideline 2092 suitable for use under sprinkler systems.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable channel
