Buy OBO Bettermann 6104685 Multi-media connector box IP20 Grey

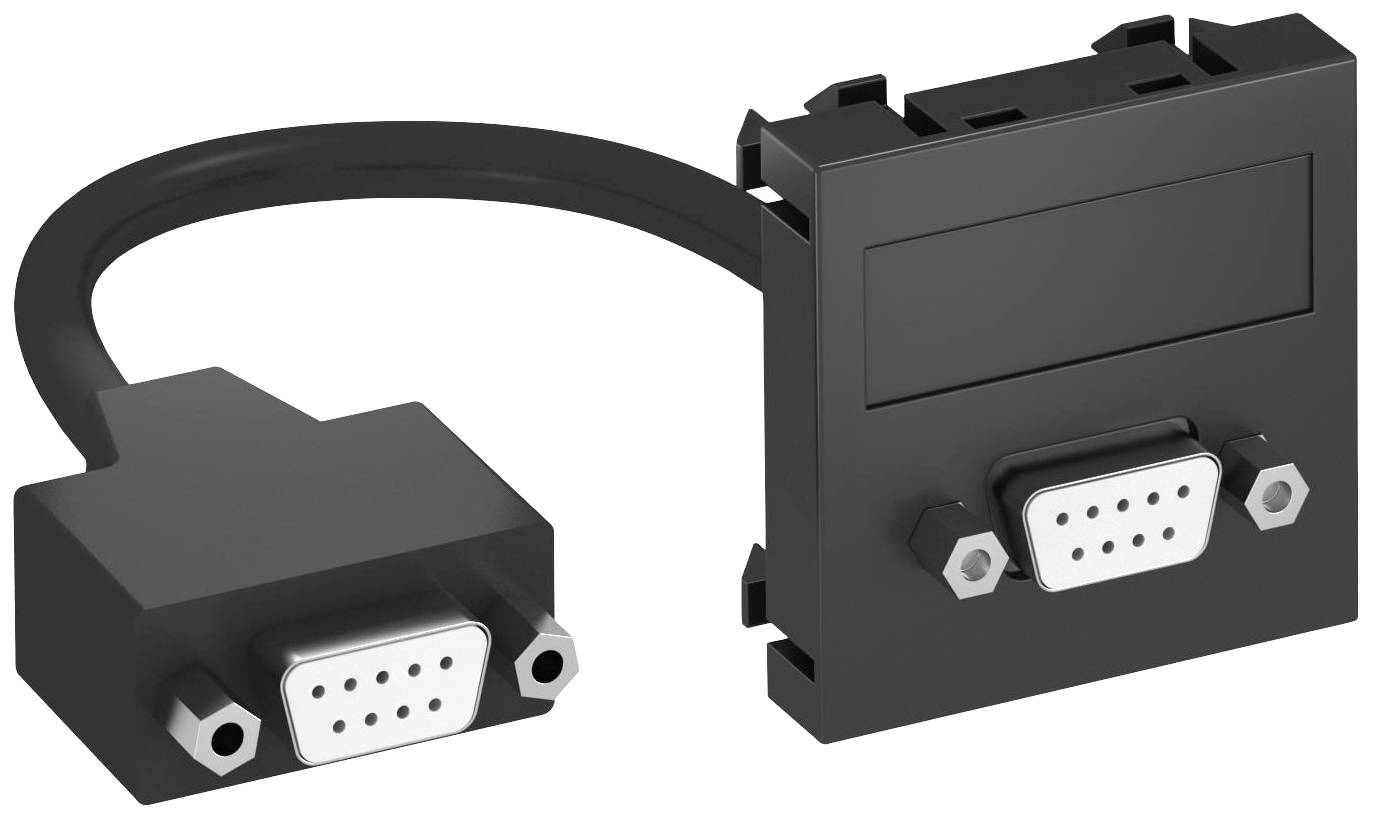

Black extension cable with two 9-pin DB9 connectors, one male and one female, for serial connections.

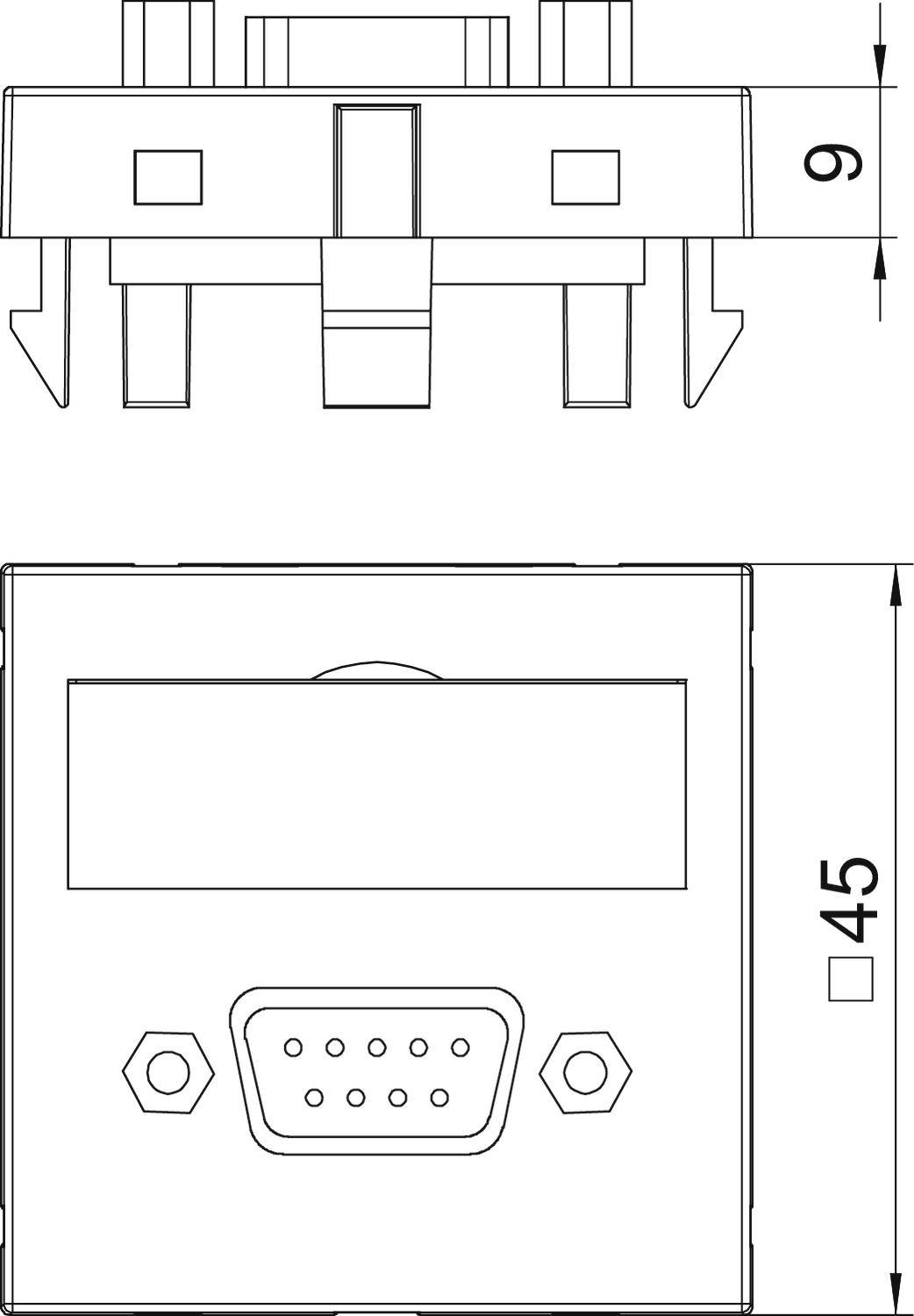

Technical drawing of an electrical switch with dimensions of 9 and 45 mm. Shows top view and side view with connections.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Material: plastic
Material good: other
Untreated surface:
RAL-number (similar):7021

Product type: Multi-media connector box

Light bulb features: incl. grommet

Mounting type: Section rail mount

Factory colour: Grey

: IP20

Content: 1 pc(s)

Similar RAL: 7021

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1964518 OBO Bettermann 6104685 Multi-media connector box IP20 Grey

Description

Multimedia carrier with a D-Sub 9 Connection socket, cable outlet straight, with labeling field, short D-Sub 9 connection cable (RS232) in design socket to socket. Carrier with snap-in mounting, suitable for the horizontal and vertical installation in the system.

This text is machine translated.
