Buy OBO Bettermann 6105042 Cover Multi-media connector box (W x H x D) 45 x 45 x 9 mm 1 pc(s) White

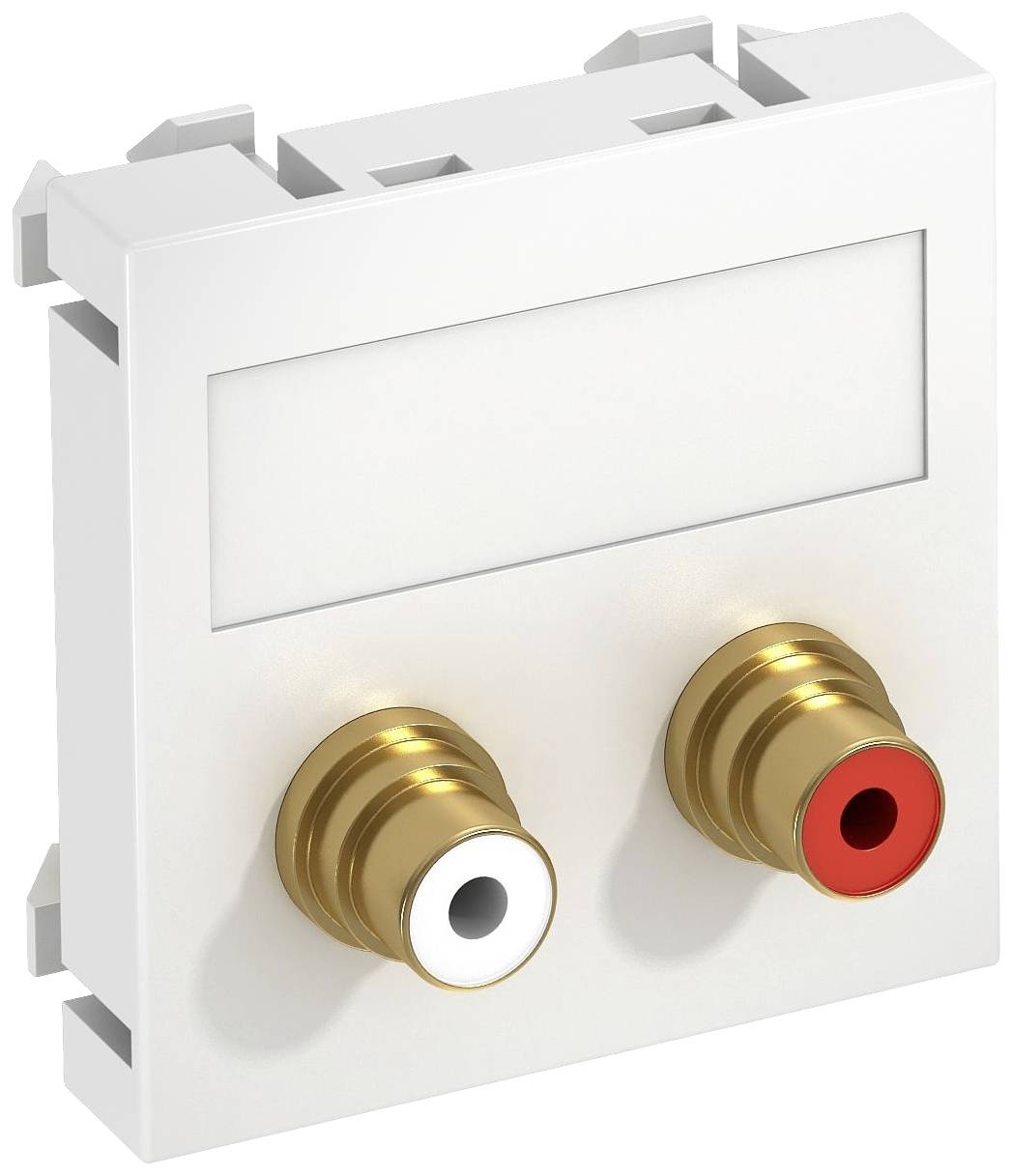

White front panel with two RCA sockets: white on the left, red on the right. Typically used for audio applications.

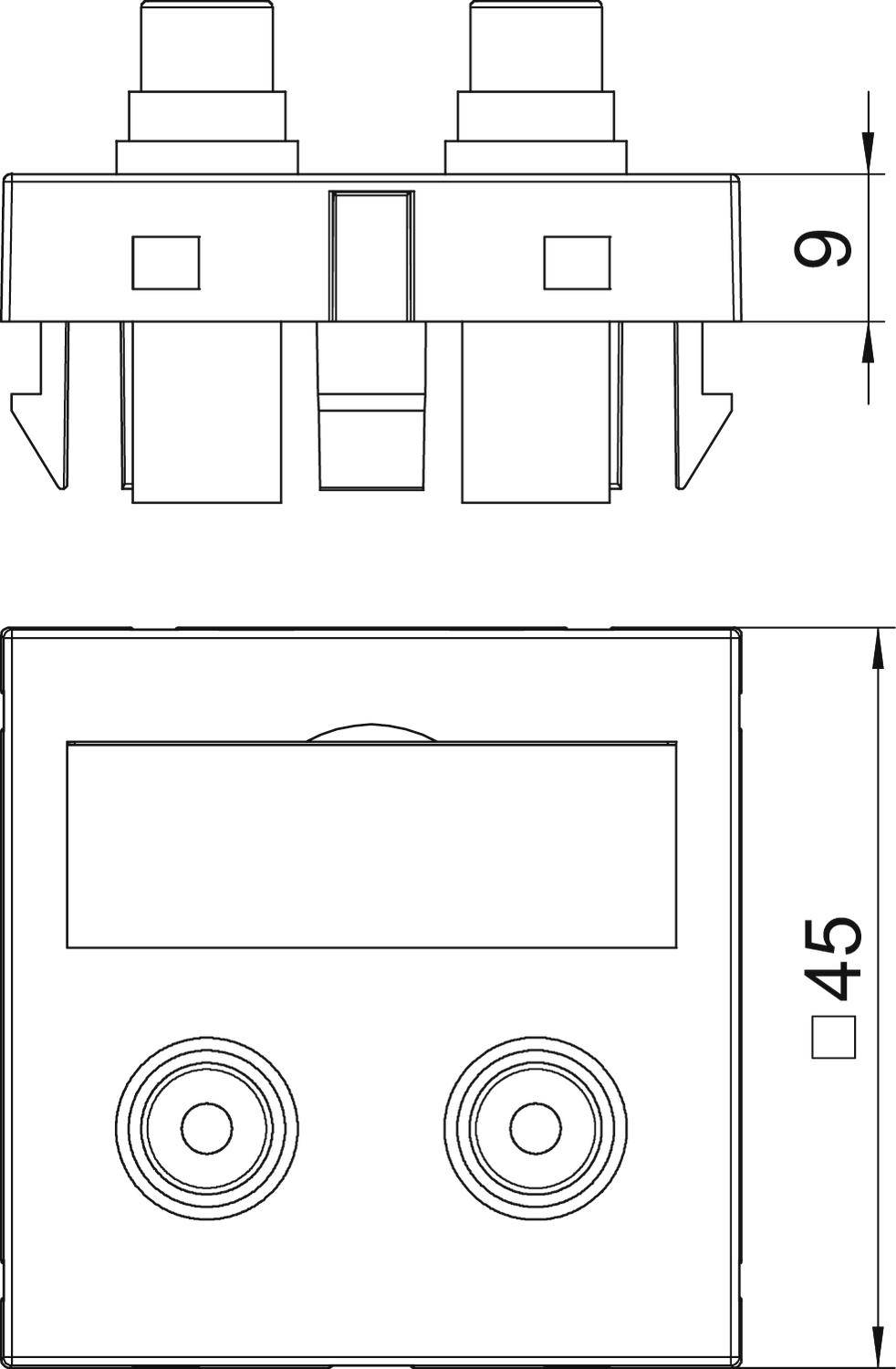

Technical drawing of a two-pole socket. Top: Top view with two terminal connections. Bottom: Front view with dimensions 45 mm x 45 mm.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Material = Plastic
Material good = other
Surface = untreated
Protection class = IP20
Audio phono 2x socket

Product type: Cover

Component: Multi-media connector box

Content: 1 pc(s)

Factory colour: White

Dim: (W x H x D) 45 x 45 x 9 mm

Width: 45 mm

Height: 45 mm

Depth: 9 mm

Similar RAL: 9010

UKCA: yes

Description

Multimedia carrier with two cinch connectors for audio R/L, cable outlet straight, with labeling field, two phono sockets (RCA) with solder connection, Color coding red/white. Mounting plate with snap-in mounting, suitable for the horizontal and vertical installation in the system.

This text is machine translated.
