OBO Bettermann 6113000 Internal wiring ducts (L x W) 2000 mm x 100 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:
Technical specifications

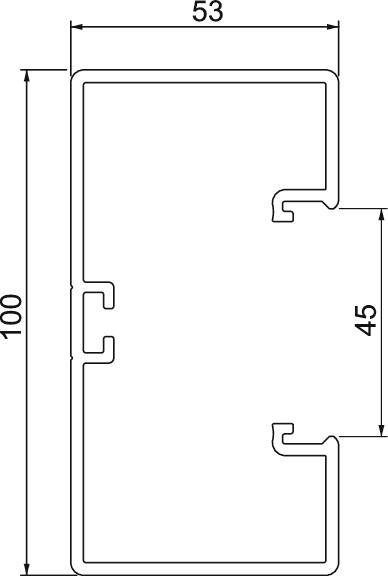

- Width = 100 mm
- Depth = 53 mm
- Length = 2000 mm
- Number of upper parts = 1
- Upper parts supplied = Yes
- Top width 1 = 45 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design rectangular = Yes
- Material = Plastic
- Material good = other
- Halogen-free = No
- Surface = untreated
- Color = pure white
- RAL-number = 9010
- Design back panel (inside) = run-C-profile
- With protective film = Yes
- Number of pluggable dividers = 1
- With channel connector = No
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
Internal wiring ducts
- Content
1 pc(s)
- Factory colour
Pure white
- Dim
(L x W) 2000 mm x 100 mm
- Length
2000 mm
- Width
100 mm
- Depth
53 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961986 OBO Bettermann 6113000 Internal wiring ducts (L x W) 2000 mm x 100 mm 1 pc(s) Pure white
Description

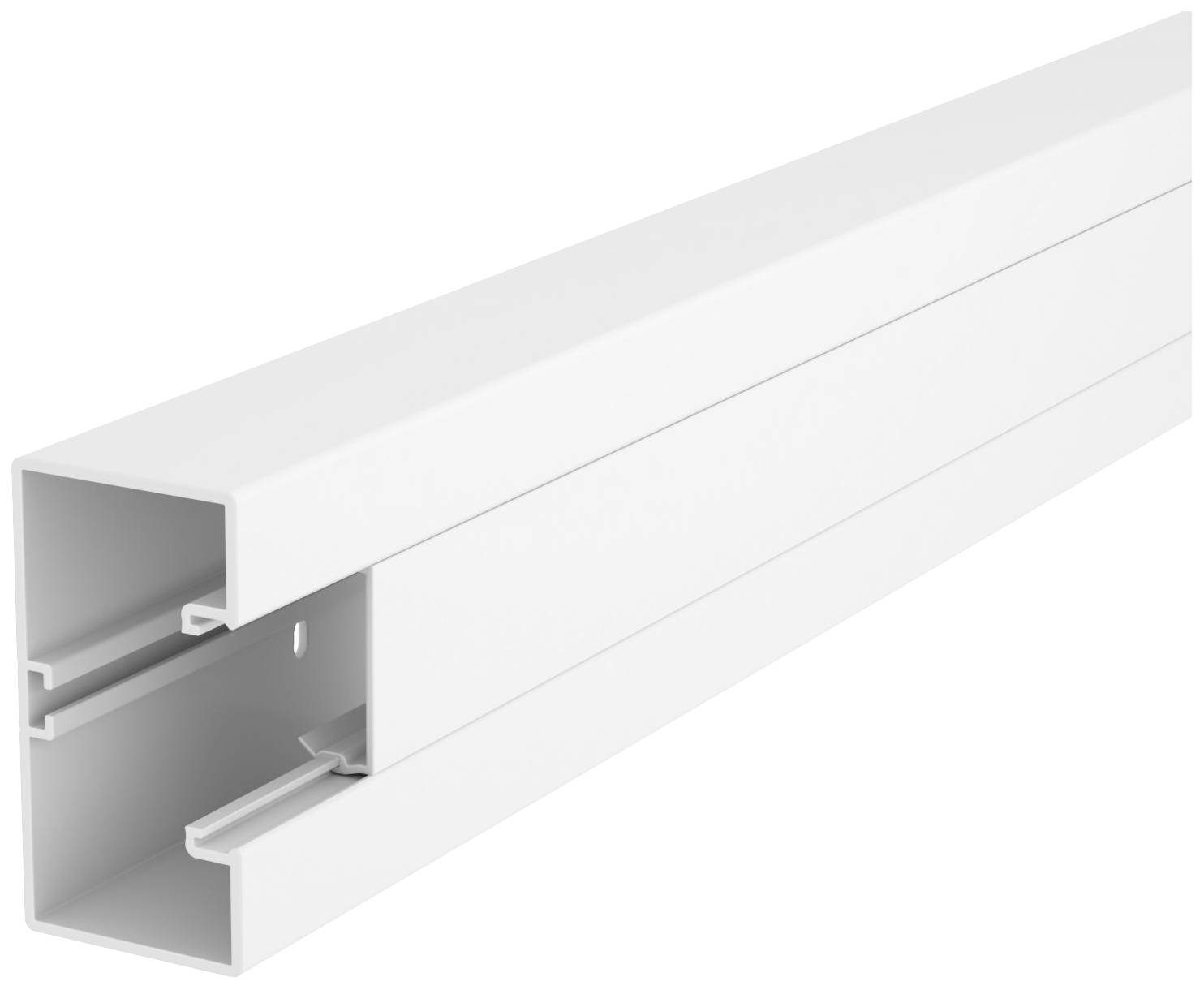

Device installation duct consisting of lower and upper part with mounting holes for mounting directly on the wall. Installation devices module 45 directly without installation box clicked in.
