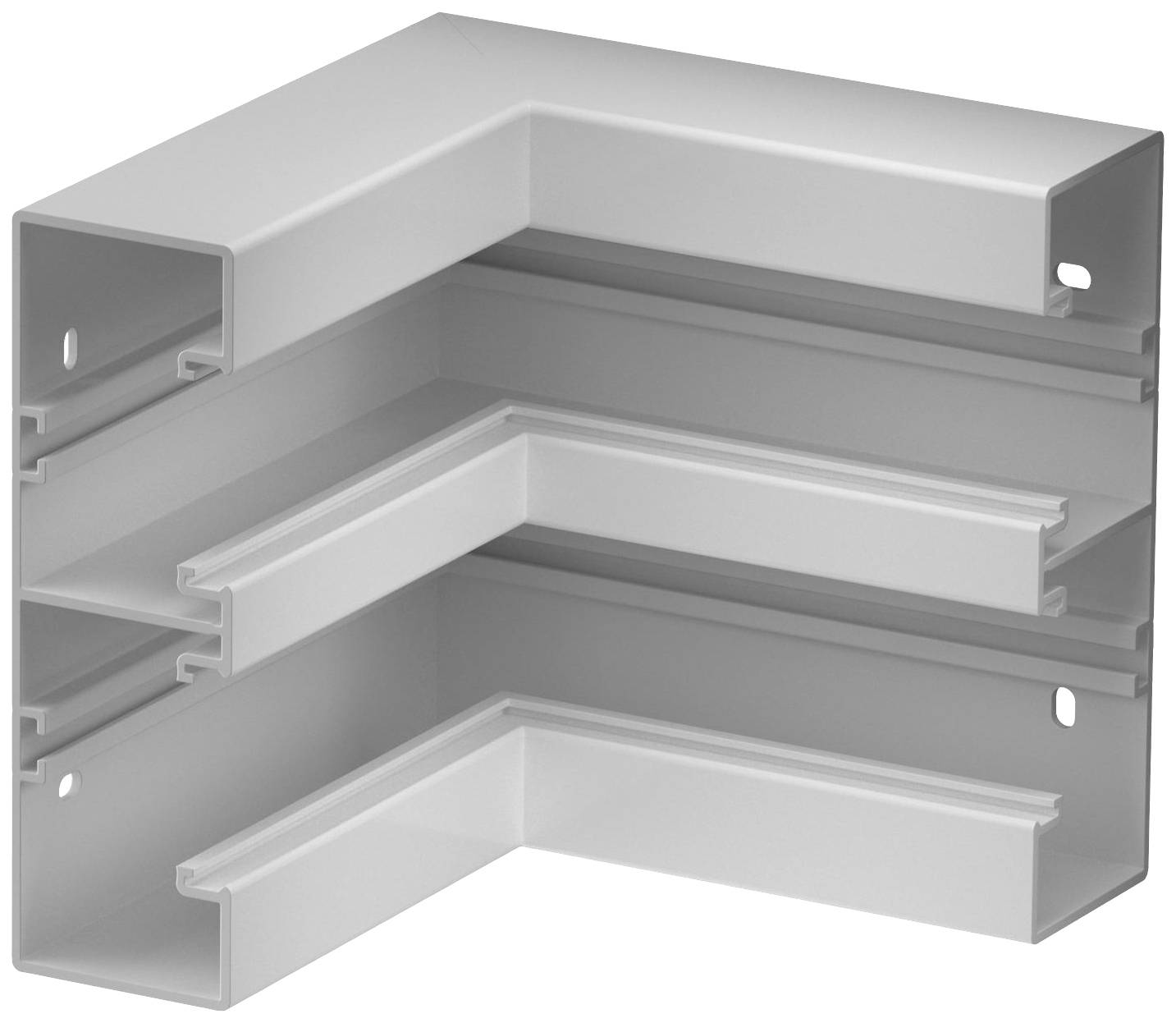

Corner connectors for cable trunking in white plastic with multiple channels.

Corner connectors for cable trunking in white plastic with multiple channels.

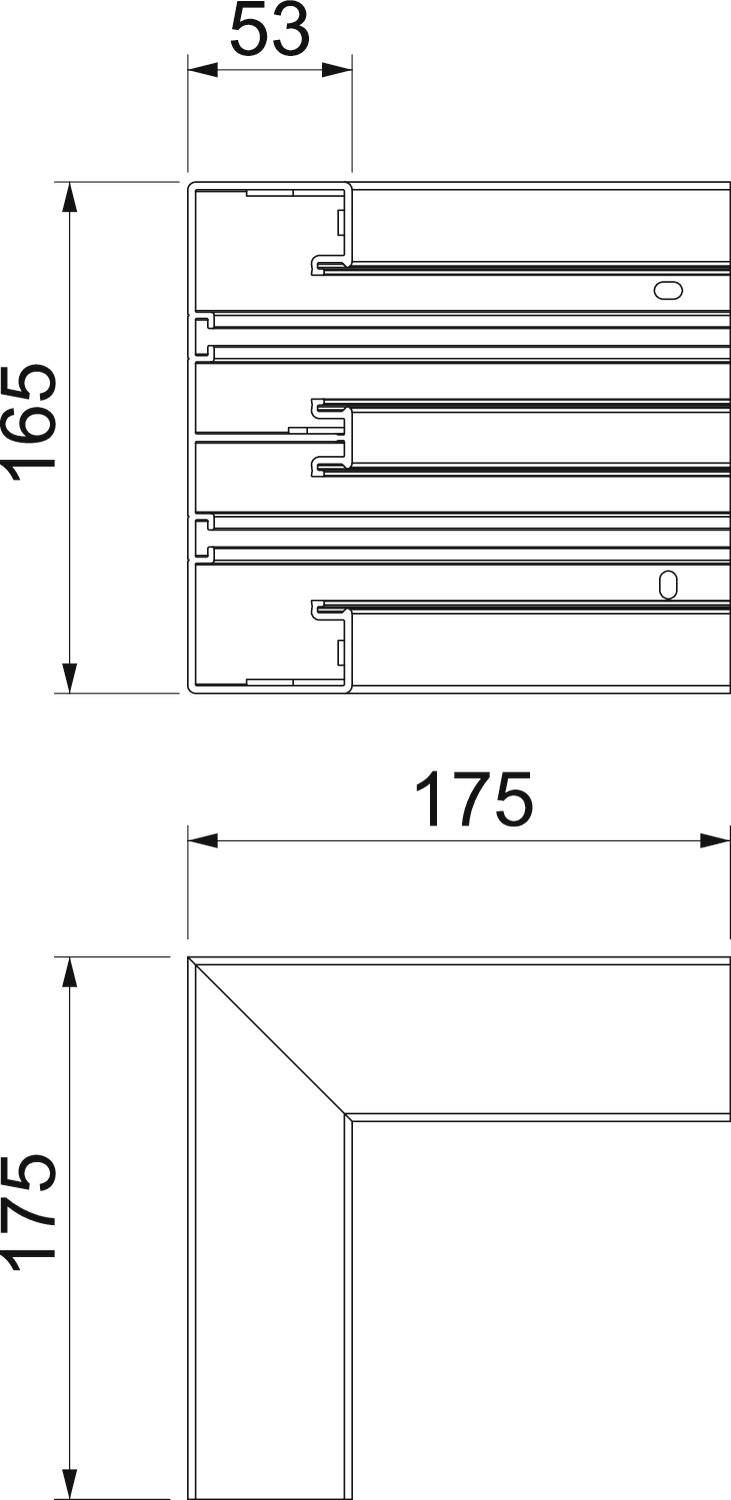

Technical drawing of a rectangular frame with dimensions 165 x 175 mm. Shows cross-section and corner joint.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

The form = balanced
Number of upper parts = 2
Top width 1 = 45 mm
Top width 2 = 45 mm
Top width 3 = 0 mm
Design = lower section
.90° angle = 90.
Material = Plastic
Material good = other
Halogen-free = No
Surface = untreated
Color = light gray
RAL-number = 7035
With protective film = Yes
With channel connector = No
Mounting holes in the Ground = Yes
Type of mounting the top parts = inside
With cable retaining clip = No

Product type: Fasteners

Content: 1 pc(s)

Factory colour: Light grey

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1966026 OBO Bettermann 6113432 Fasteners 1 pc(s) Light grey

Description

90° inside corner to change the direction of device installation ducts rapid45-2.

This text is machine translated.
